Power Mirror Actuator Test: Notes

  1. Remove the door panel (see DOOR PANEL REMOVAL/INSTALLATION ).
  2. Disconnect the 3P*1 or 6P*2 connector (A) from the power mirror actuator (B).

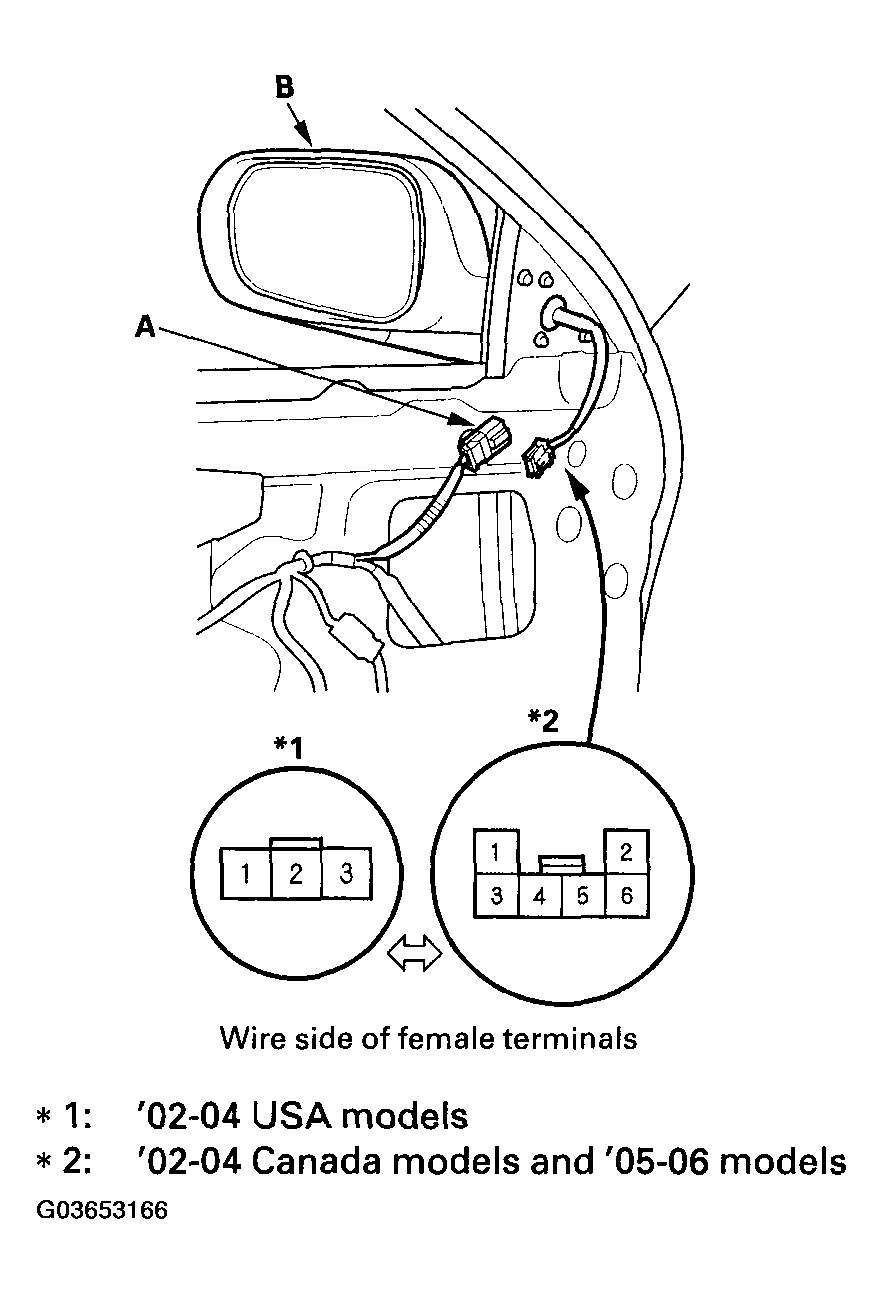

    Fig 1: Disconnecting 3P*1 Or 6P*2 Connector From Power Mirror Actuator
    G03653166Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Check actuator operation by connecting power and ground according to the table.
    Fig 2: Actuator Operation Table
    G03653167Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. If the mirror fails to work properly, replace the mirror actuator.
