HDS Method: Notes

With the ignition switch OFF, connect the HDS to the 16P data link connector (DLC) (A) under the driver's side of the dashboard next to the accelerator pedal.

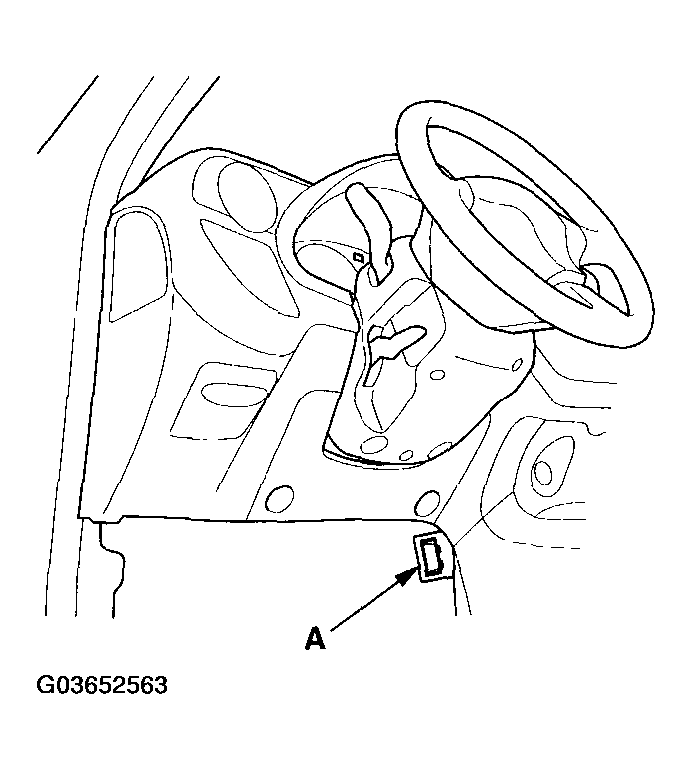

Fig 1: Connecting HDS To 16P Data Link Connector (DLC) Under Driver's Side
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Turn the ignition switch ON (II), and clear the DTC(s) by following the screen prompts on the HDS.
NOTE: See the HDS Help menu for specific instructions.
