Drive Belt Auto-tensioner Replacement

Remove the drive belt (see DRIVE BELT INSPECTION ).
Remove the power steering (P/S) pump without disconnecting the P/S hoses.

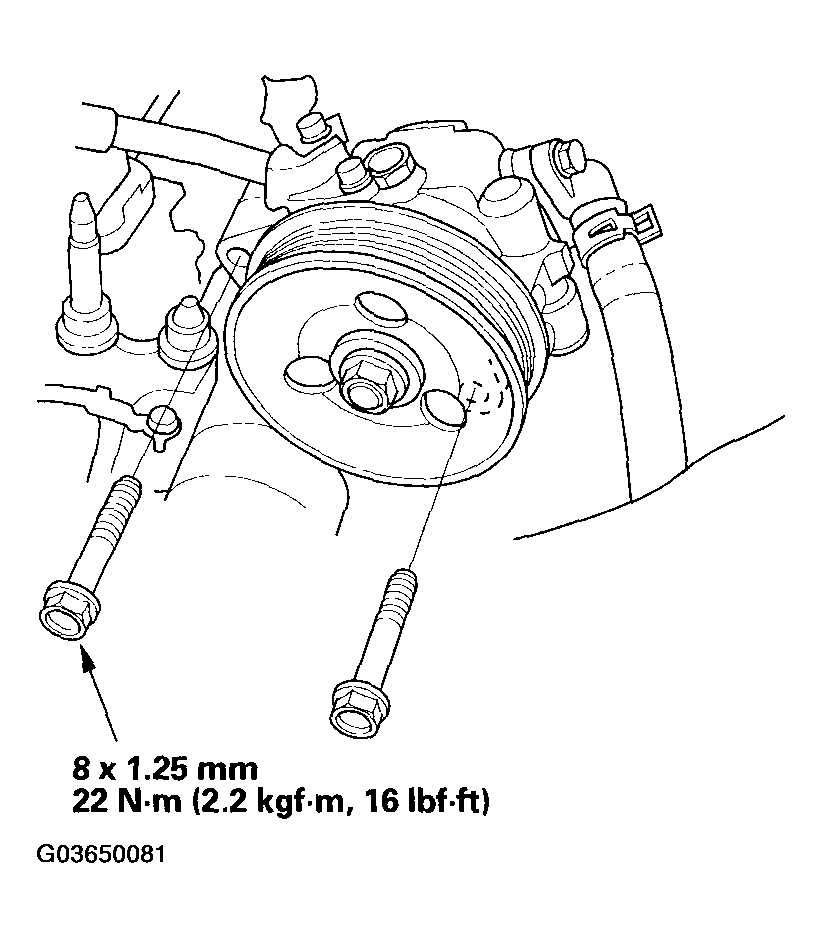

Fig 1: Removing Power Steering Pump And Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the auto-tensioner pulley.

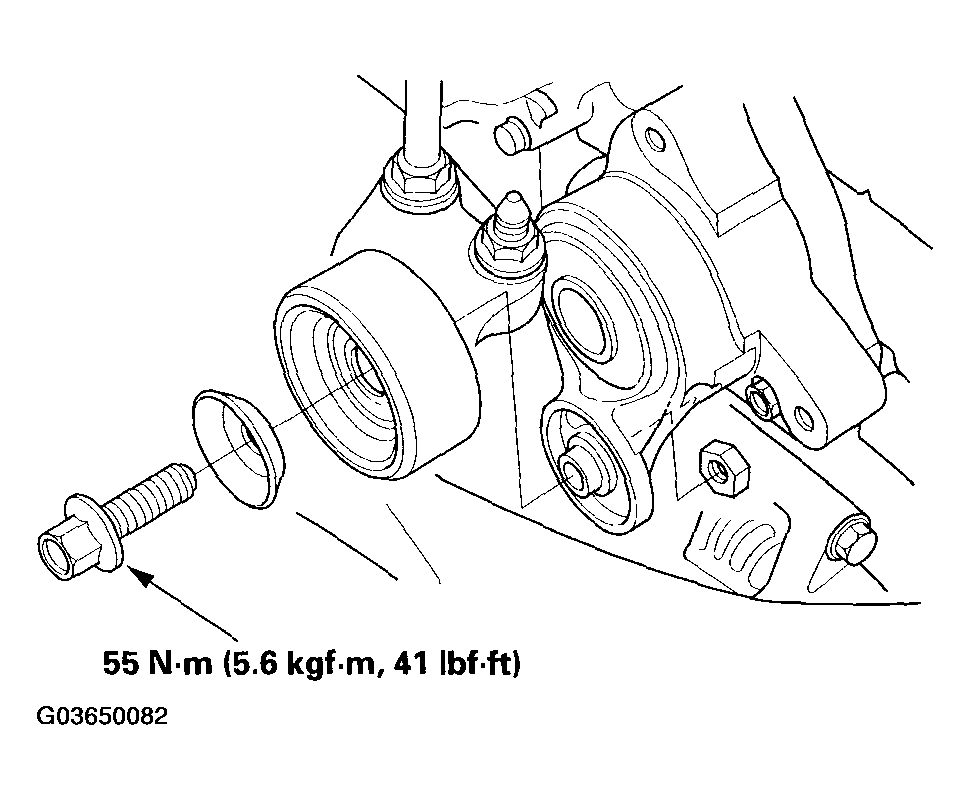

Fig 2: Removing Auto-Tensioner Pulley And Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the auto-tensioner.

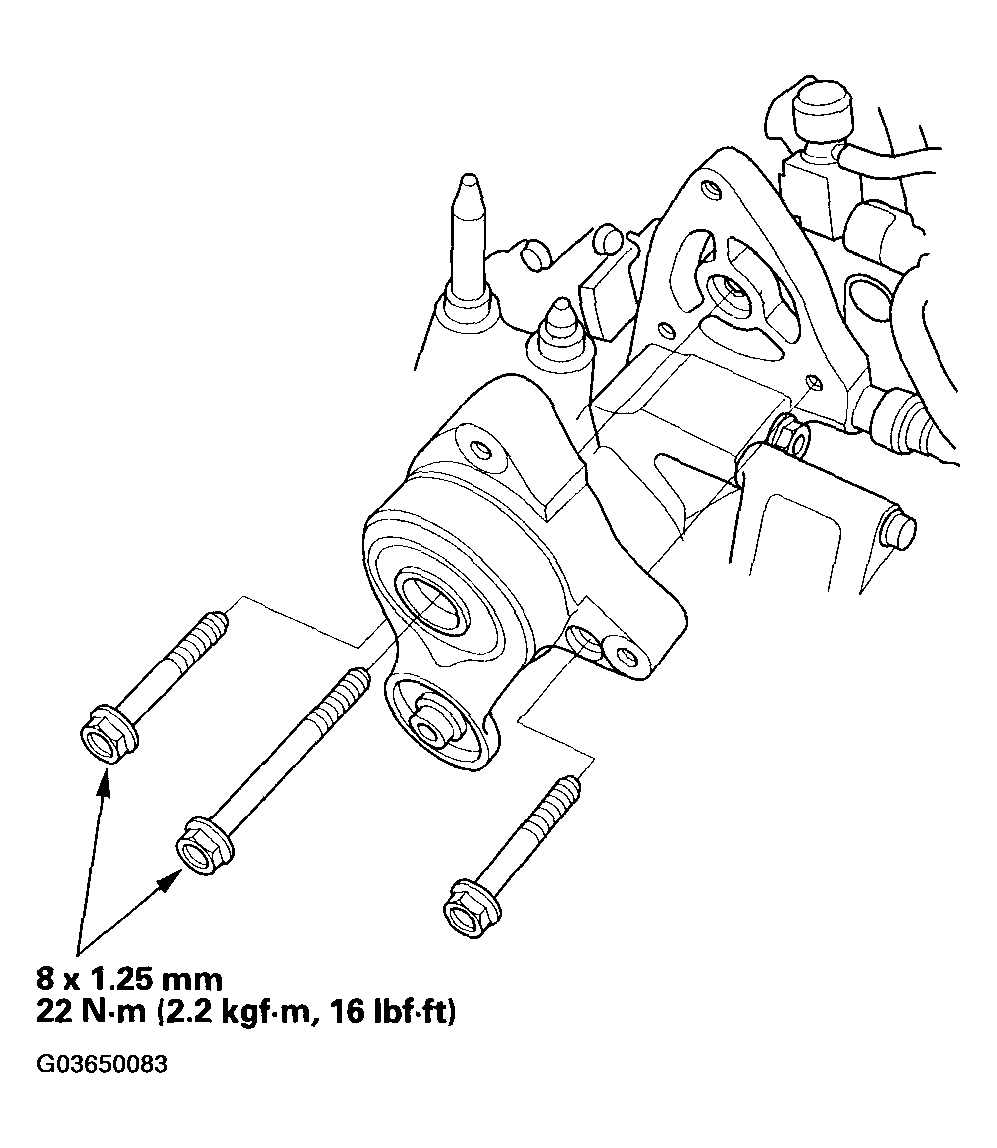

Fig 3: Removing Auto-Tensioner And Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install in the reverse order of removal.
