Home › Acura › 2003 › RSX Base, Standard › Repair and Diagnosis › Engine Mechanical › Mechanical › Intake Air System › Air Cleaner Element Inspection/Replacement

Air Cleaner Element Inspection/Replacement

  1. Remove the clamp (A) and the screws (B), then open the air cleaner housing cover (C).

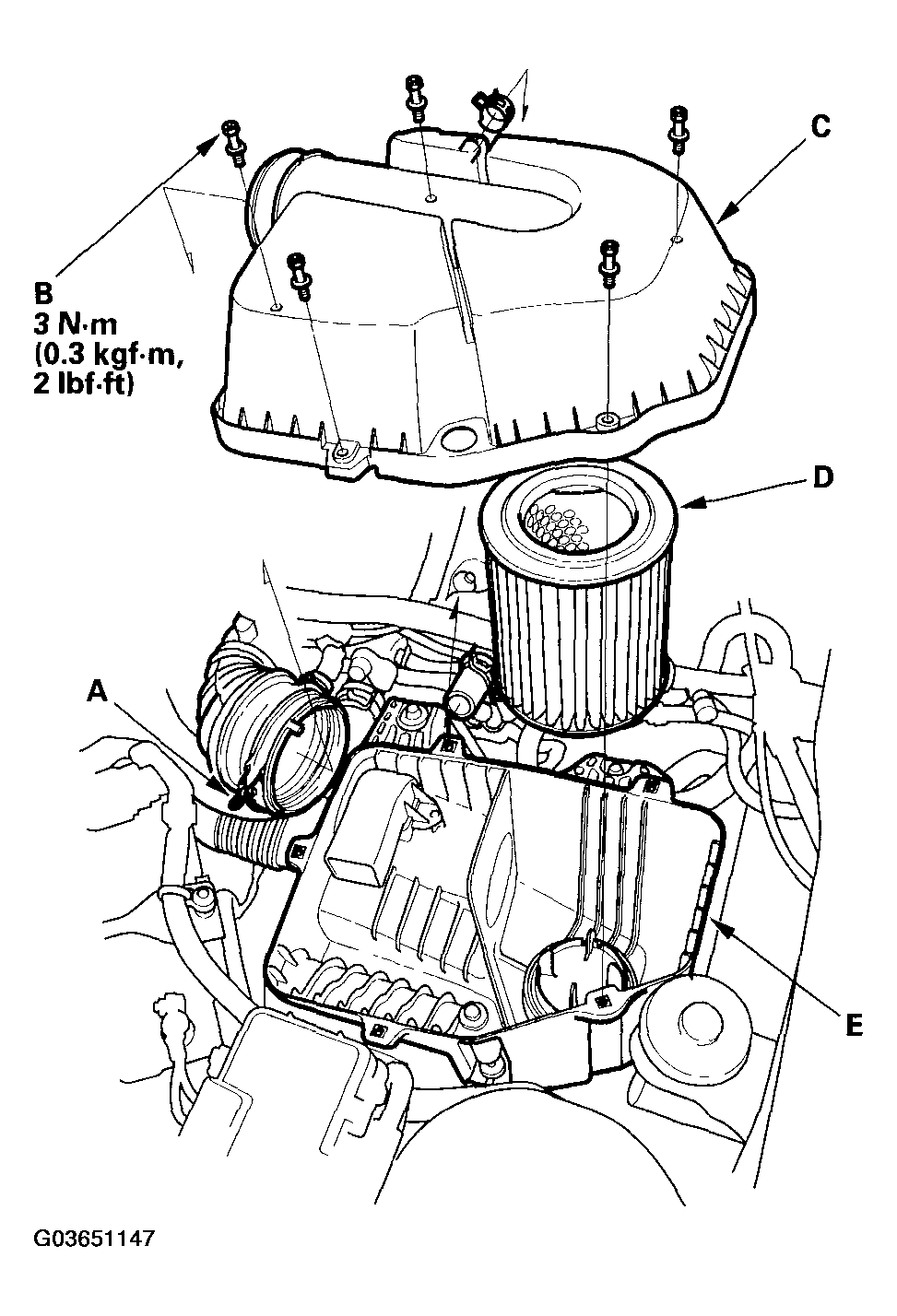

    Fig 1: Removing Clamp And Screws With Specified Torques
    G03651147Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the air cleaner (D) from the air cleaner housing (E).
  3. Check the air cleaner element for damage or clogging. If it is damaged or clogged, replace it.
    NOTE: Do not use compressed air to clean the air cleaner element.
  4. Install the parts in the reverse order of removal.
