IMT (IMRC) Valve Position Sensor Replacement

  1. Remove the two screws (A) and the IMT (IMRC) position sensor (B).

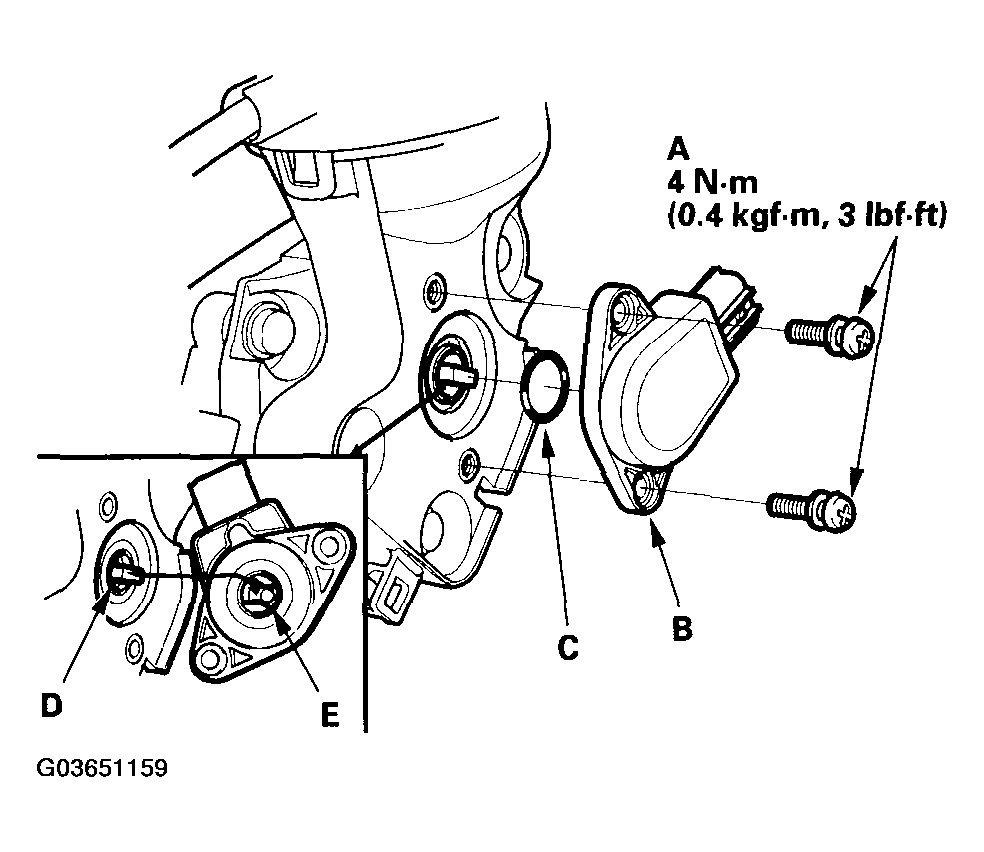

    Fig 1: Removing Screws And IMT Position Sensor With Specified Torques
    G03651159Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Install the sensor with a new O-ring (C), and make sure the projection (D) inside the IMT (IMRC) valve matches up with the groove (E) in the sensor.
