2002-2004 models

  1. Remove the fuel pump (see FUEL PUMP/FUEL GAUGE SENDING UNIT REPLACEMENT  ).
  2. Remove the fuel pressure regulator (A).

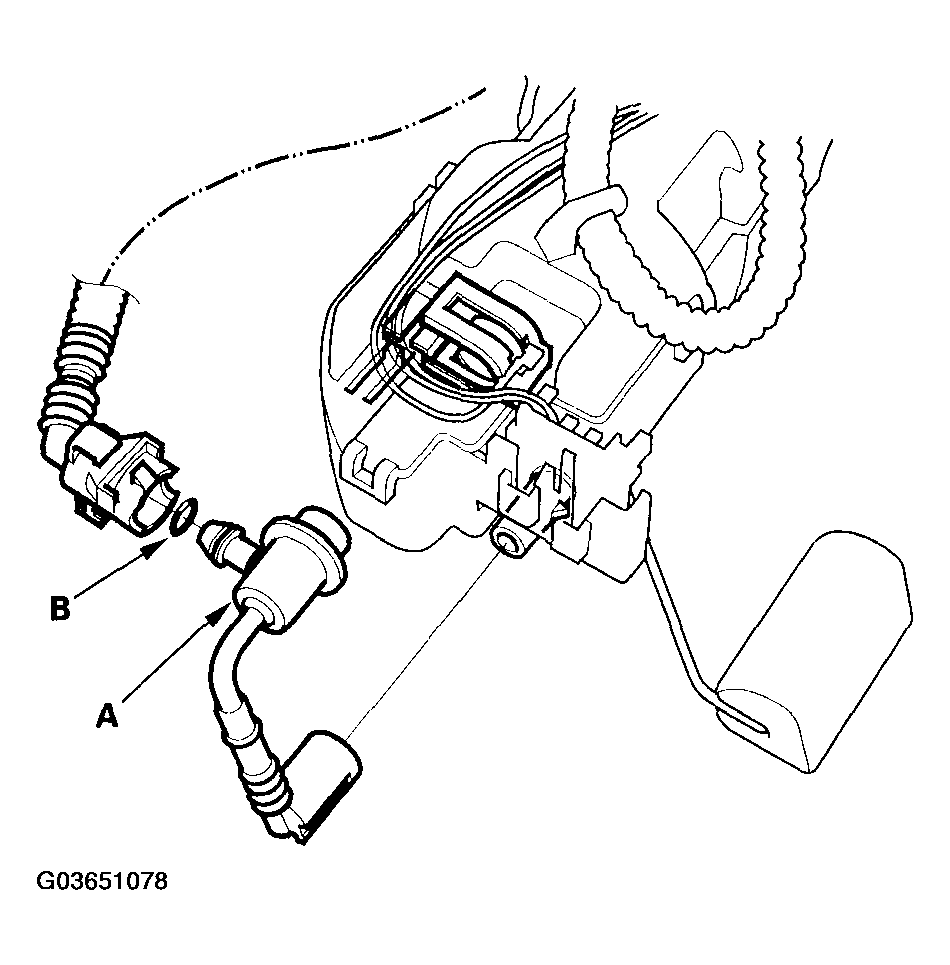

    Fig 1: Removing Fuel Pressure Regulator
    G03651078Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the regulator in the reverse order of removal with a new O-ring (B).
