Circuit Diagram
Circuit Diagram

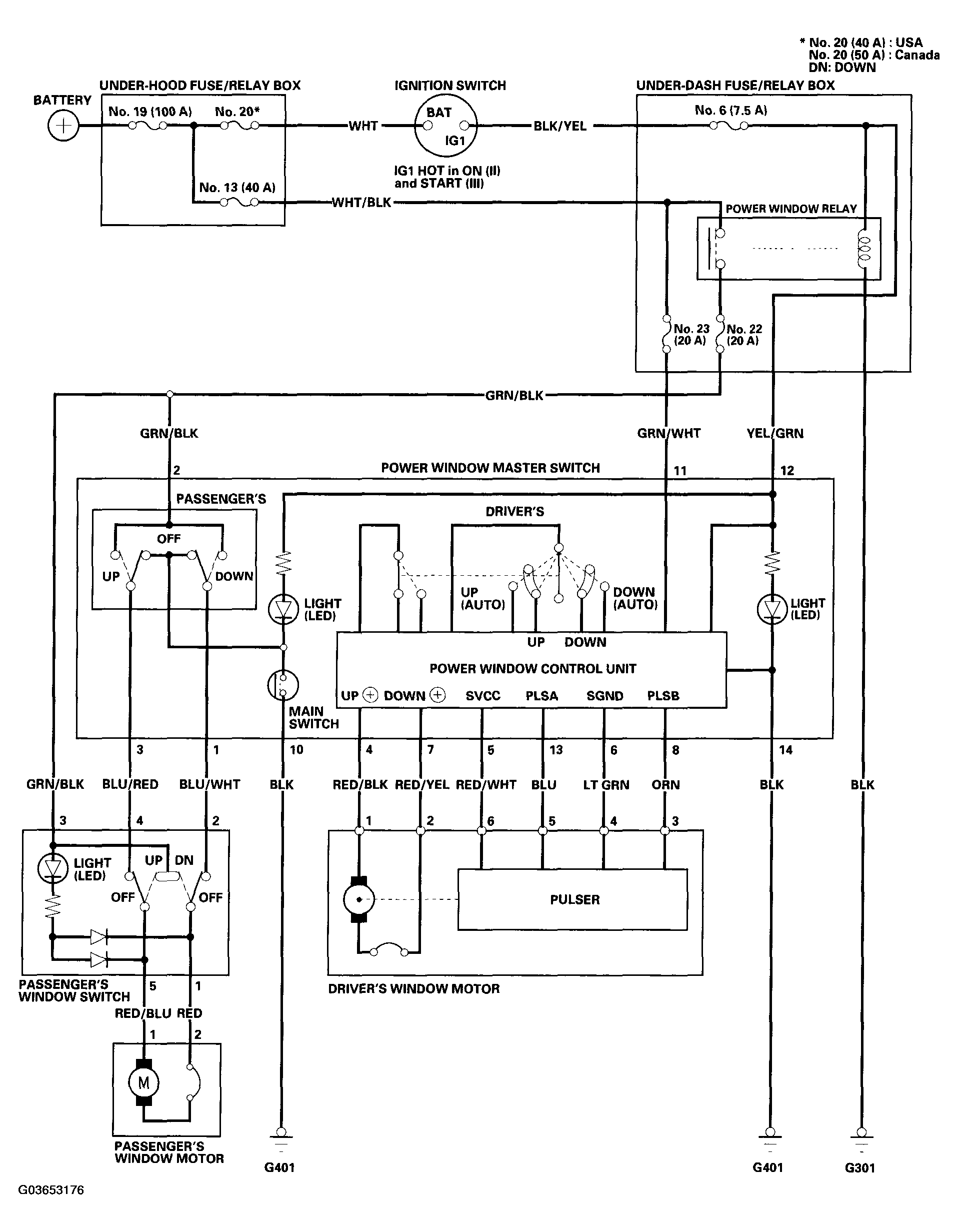

Fig 1: Power Windows Circuit Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
