Door Lock Knob Switch Test
- Remove the driver's door panel (see FRONT DOOR PANEL REMOVAL/INSTALLATION ).

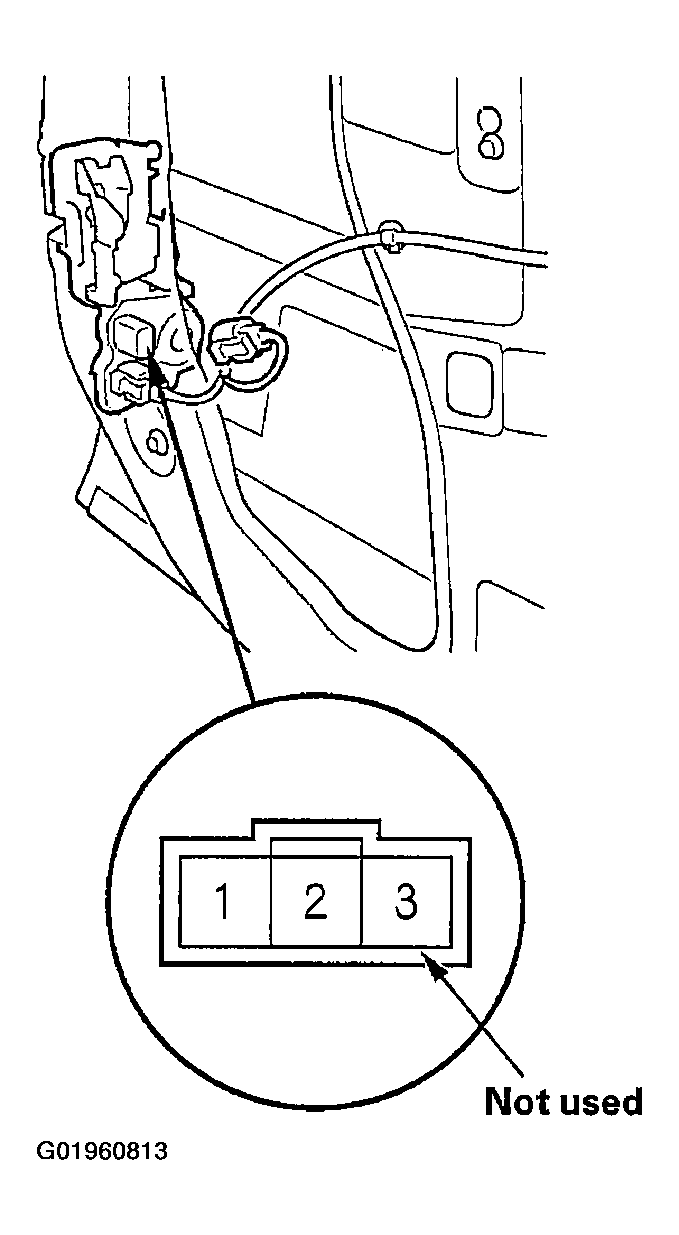

- Disconnect the 3P connector from the actuator.
- Check for continuity between the No. 1 and No. 2 terminals.
- There should be continuity when the door lock knob switch is in the LOCKED position.
- There should be no continuity when the door lock knob switch is in the UNLOCKED position.
- If the continuity is not as specified, replace the door lock actuator.
