Fuel Lines Inspection

Check the fuel system lines, hoses, and fuel filter for damage, leaks, and deterioration. Replace any damaged parts.

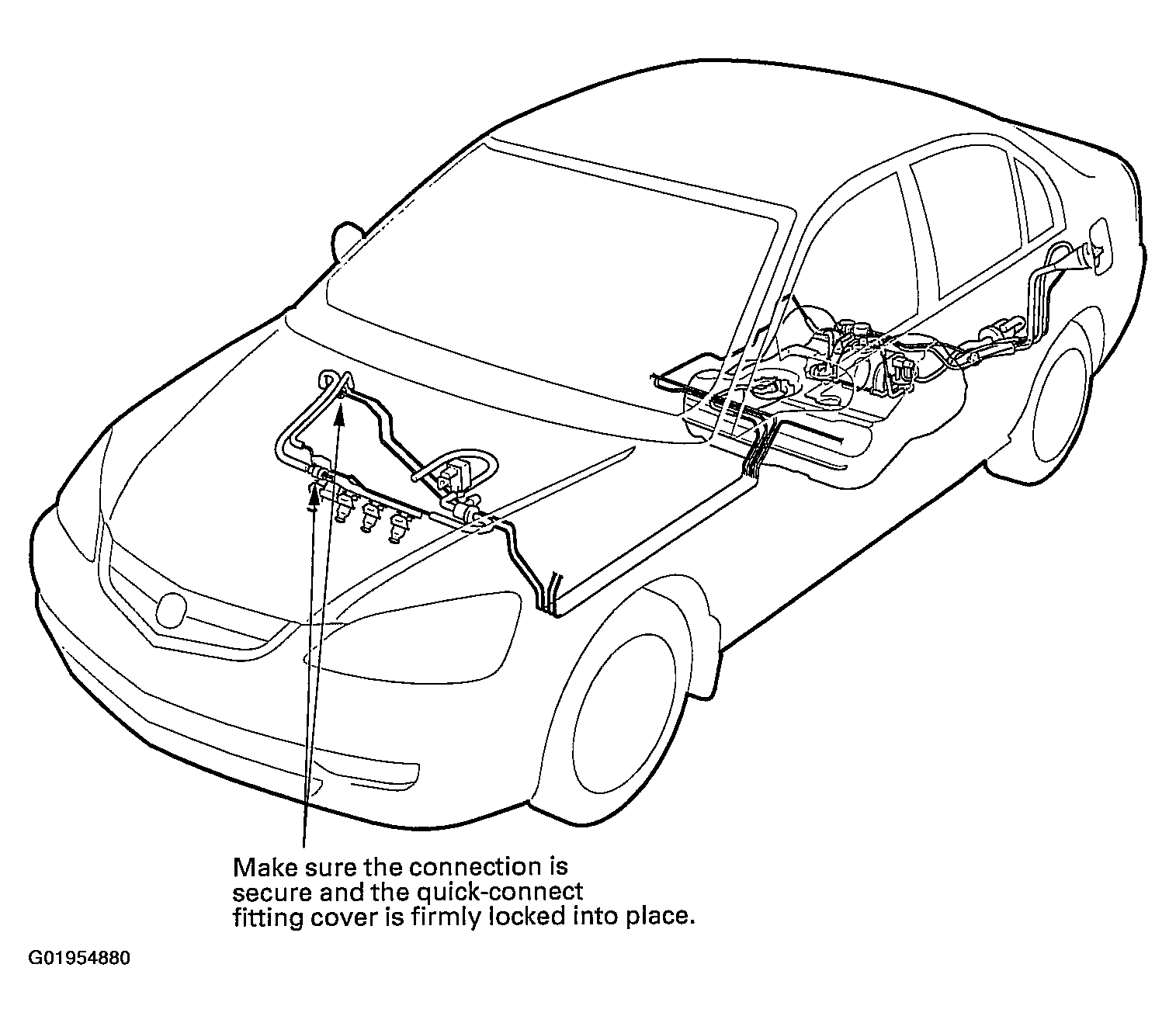

Fig 1: Inspecting Fuel Lines

Check all clamps and retighten if necessary.

1. Do not disconnect the hose from the pipe at these joints.

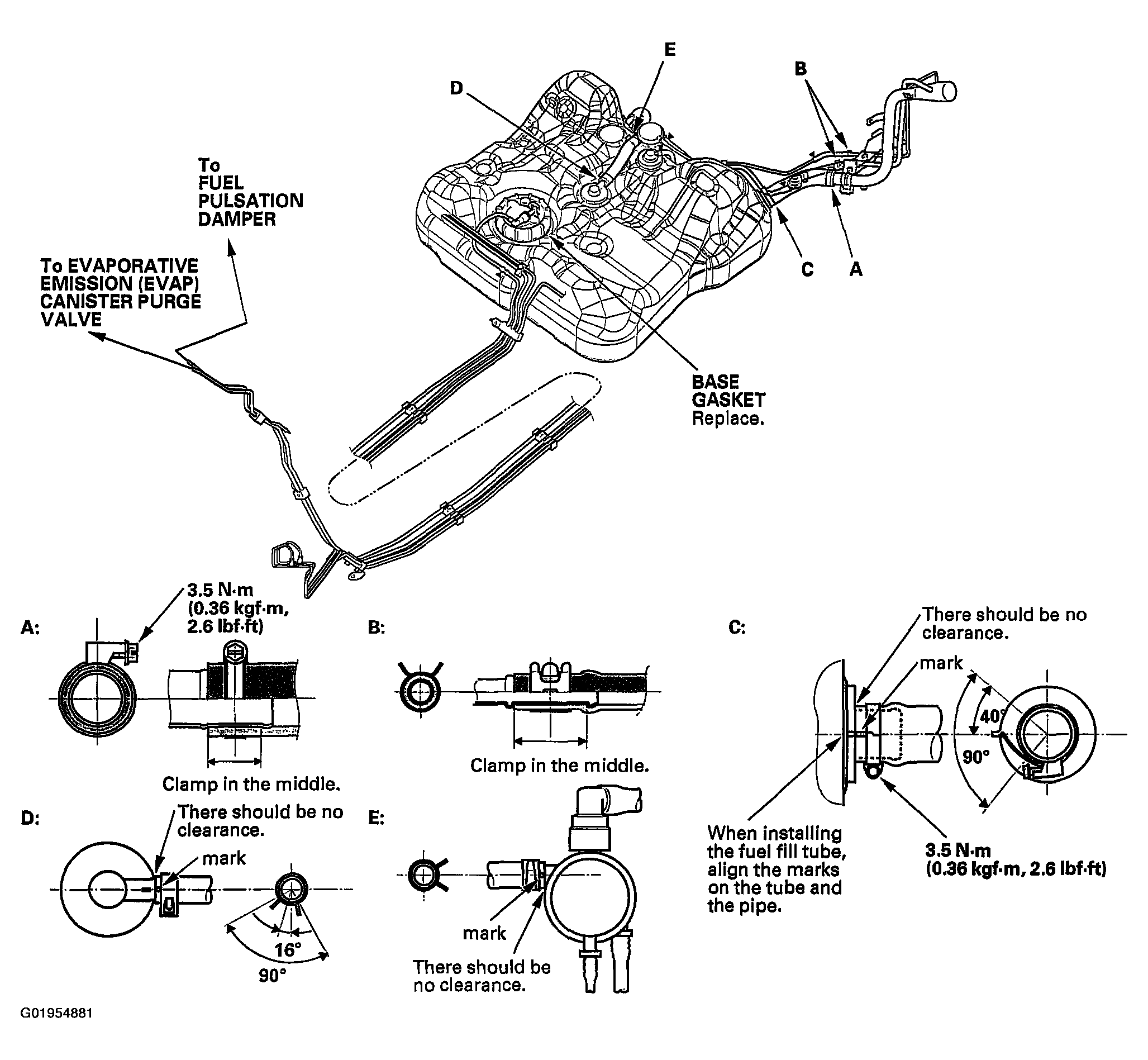

   Fig 2: Checking All Clamps
