Component Location Index

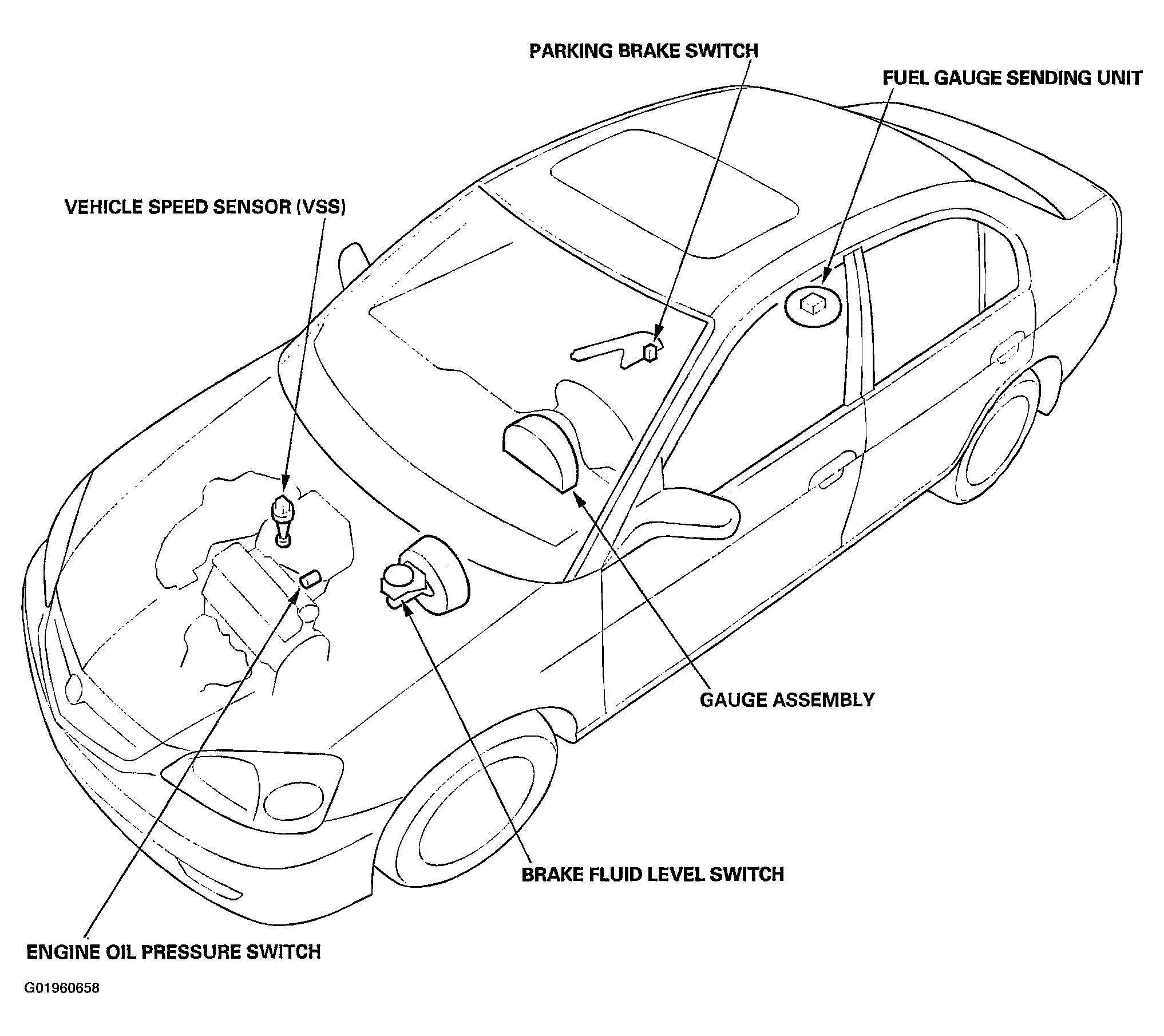

Fig 1: Component Locations For Gauges (1 Of 2)

G01960658

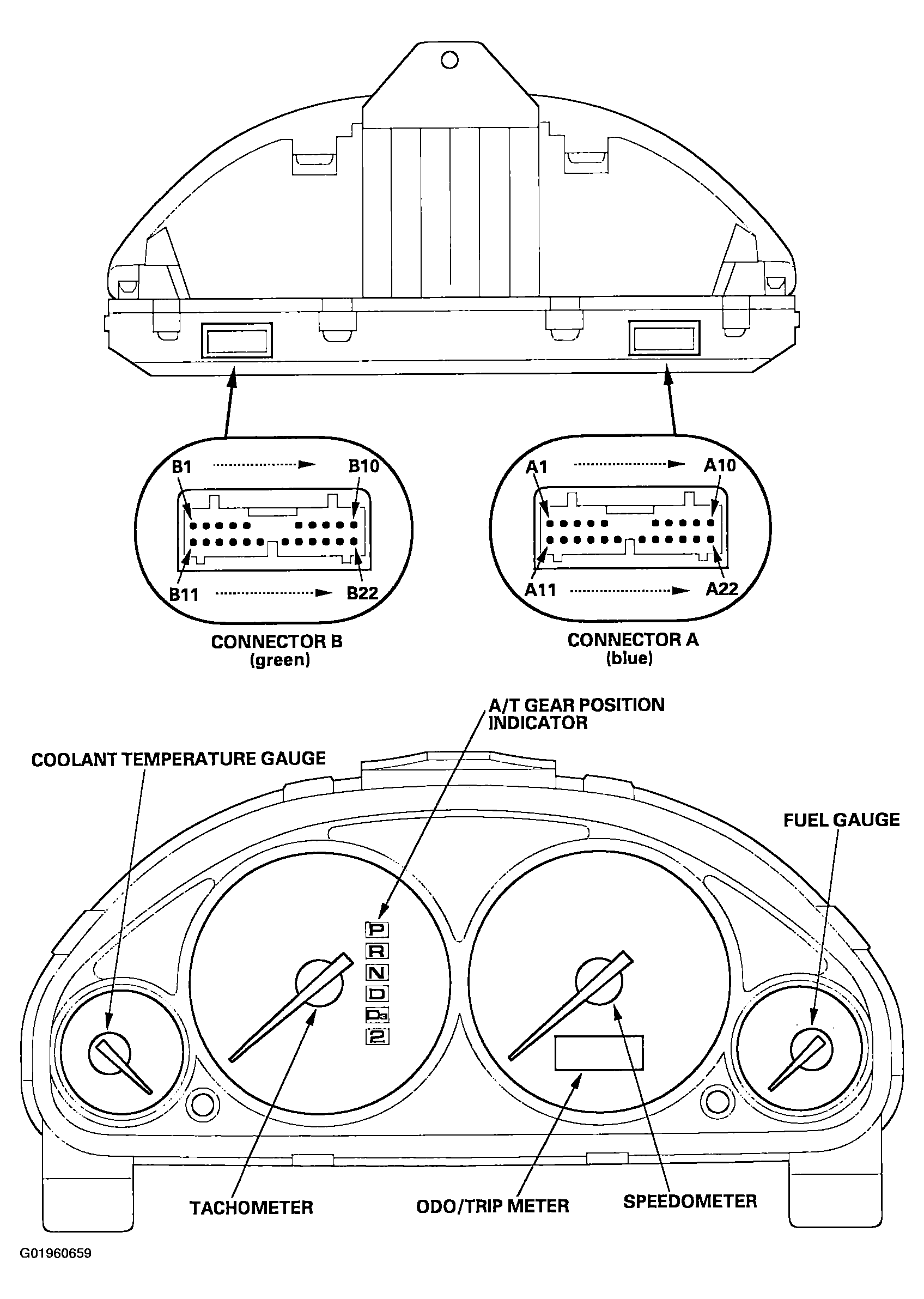

Fig 2: Component Locations For Gauges (2 Of 2)

G01960659
