C609 Connector End View
C609 Connector End View

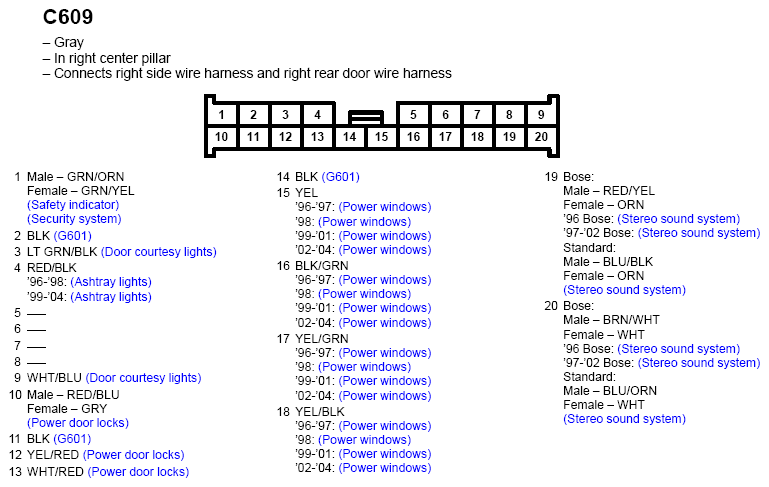

Fig 1: C609 Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
