Center Console Removal/Installation

Special Tools Required

KTC trim tool set SOJATP2014

NOTE:
  • Use the appropriate tool from the KTC trim tool set to avoid damage when prying components.
  • Take care not to scratch the front seat, dashboard, and related parts.

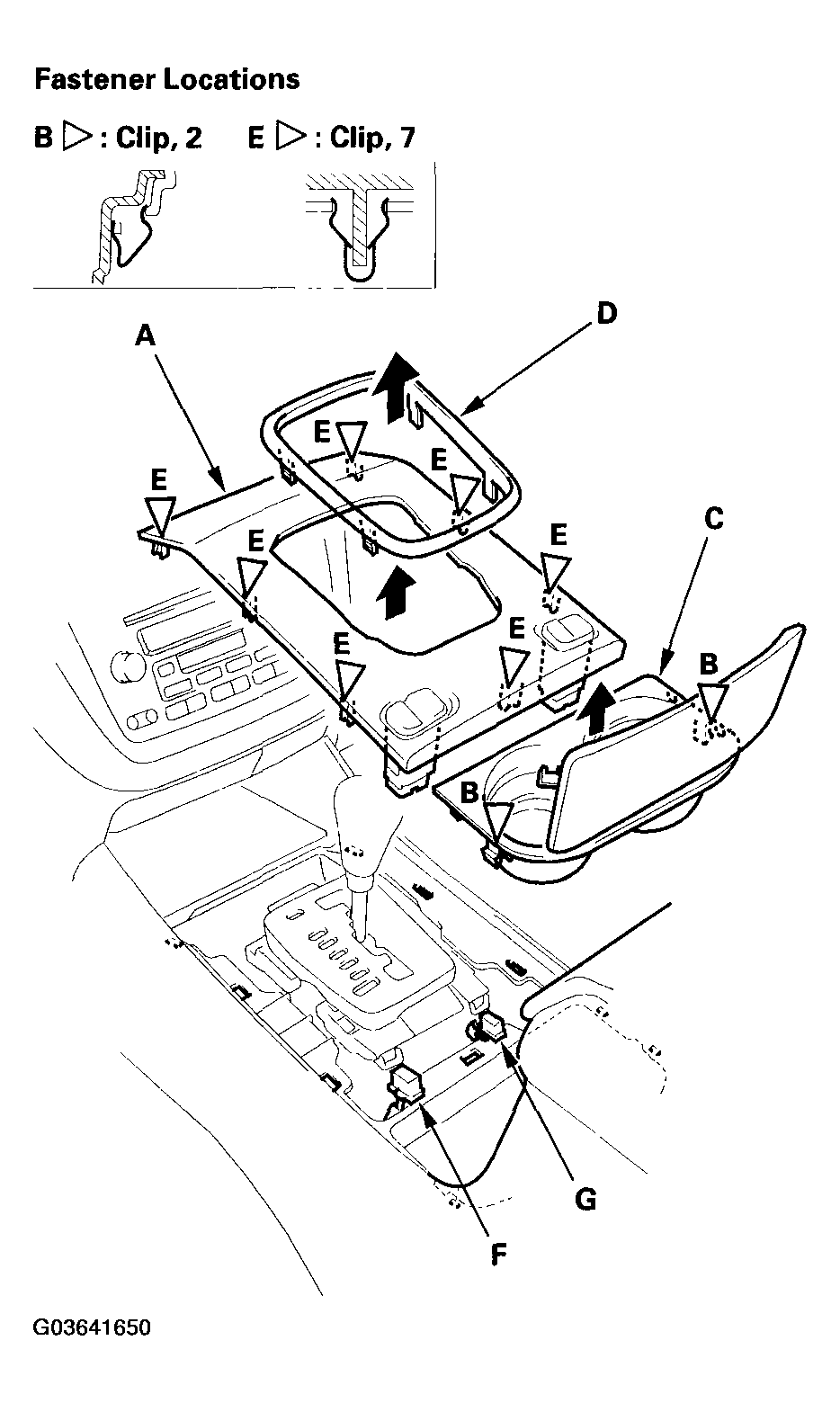

  1. Remove the console panel (A).

    -1 Detach the clips (B) by pulling the beverage holder (C) up, then remove it.

    -2 Remove the shift indicator trim ring (D).

    -3 Gently detach the clips (E), then remove the console panel.

    -4 '04-06 models disconnect the footwell light connector (F) and ambient light connector (G).

    Fig 1: Removing Console Panel
    G03641650Courtesy of AMERICAN HONDA MOTOR CO., INC.

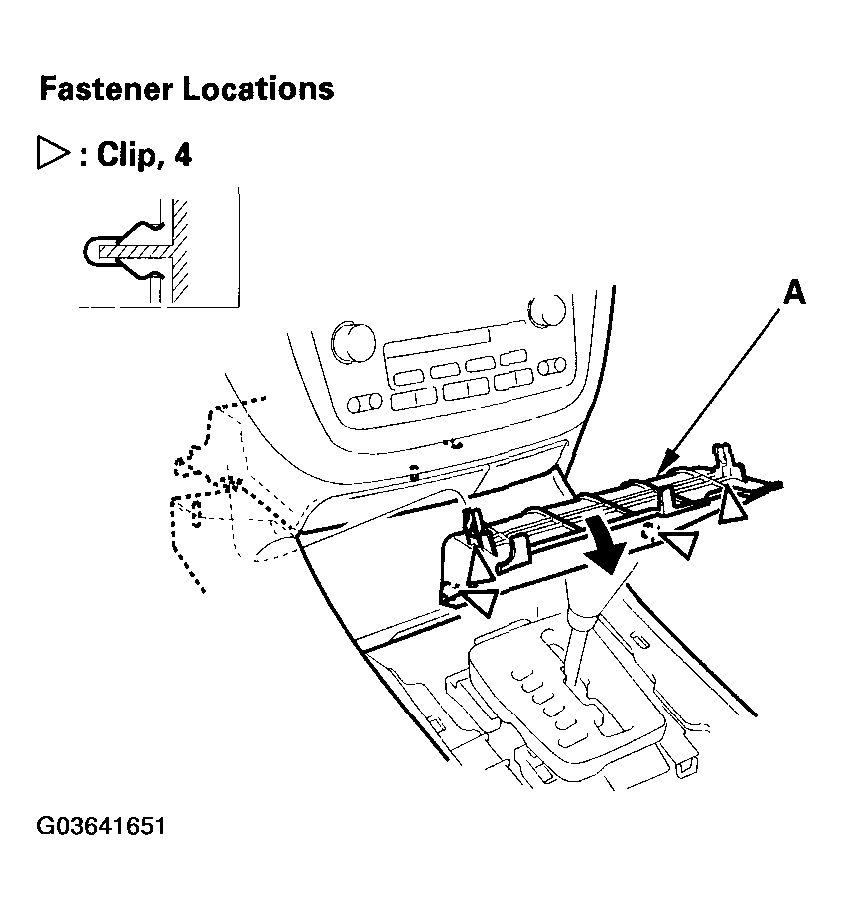

  2. Without rear entertainment system: Detach the clips by hand, and remove the center panel lower trim (A).
    Fig 2: Removing Center Panel Lower Trim
    G03641651Courtesy of AMERICAN HONDA MOTOR CO., INC.

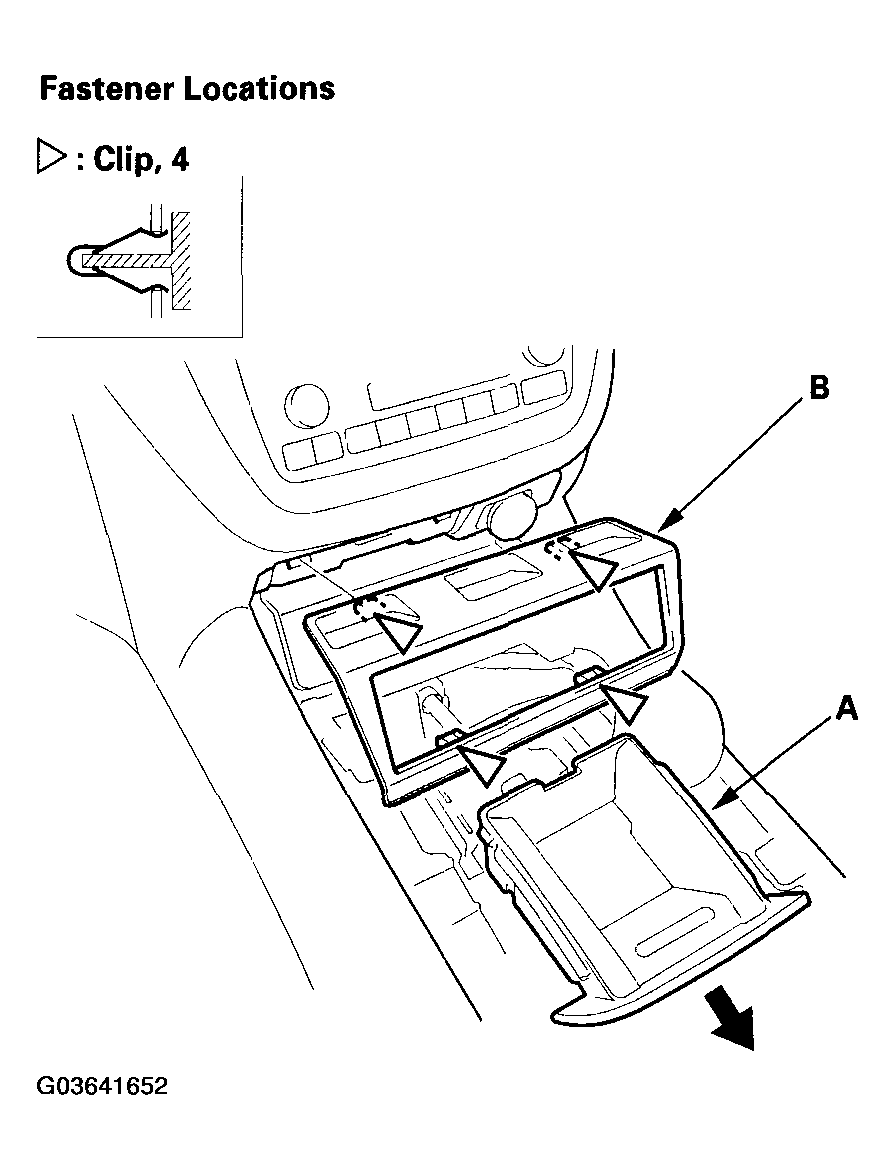

  3. With rear entertainment system: Remove the coin pocket (A). Pull the DVD panel (B) out to detach the clips, then remove the panel.
    Fig 3: Removing Coin Pocket
    G03641652Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove both front seat riser covers (see FRONT SEAT REMOVAL/INSTALLATION ).

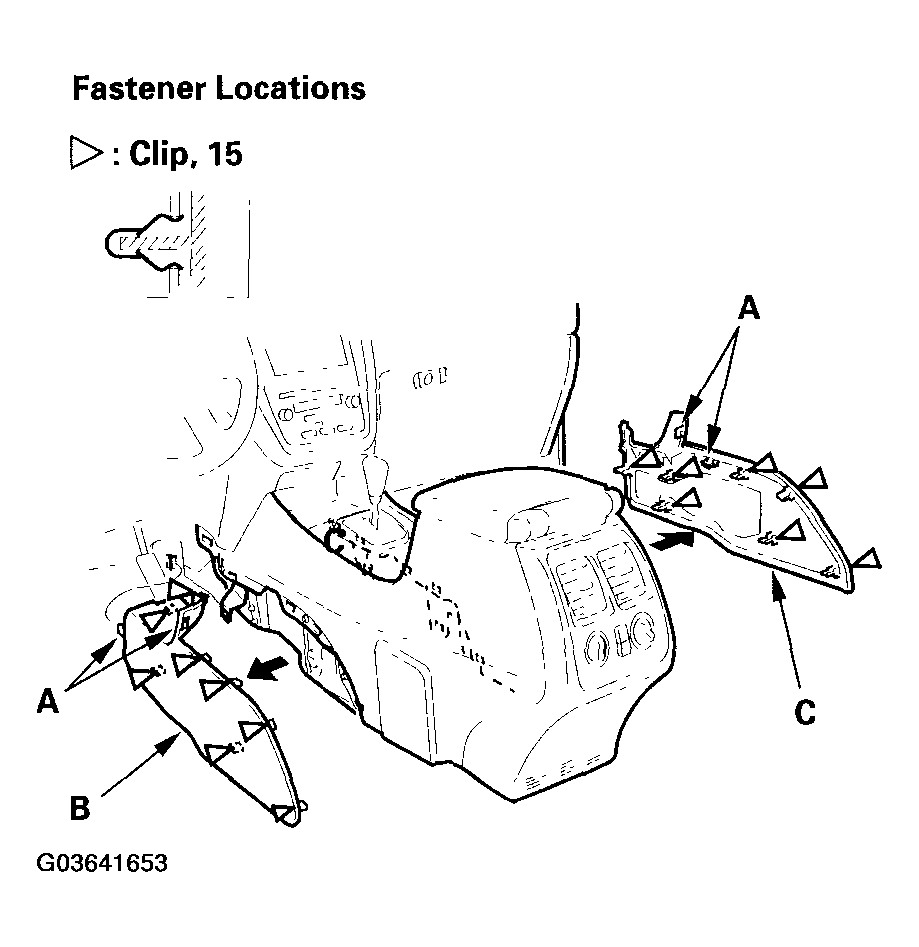

  5. Detach the clips and release the hooks (A), then remove the driver's console side trim (B) and passenger's console side trim (C).
    Fig 4: Detaching Clips And Release Hooks
    G03641653Courtesy of AMERICAN HONDA MOTOR CO., INC.

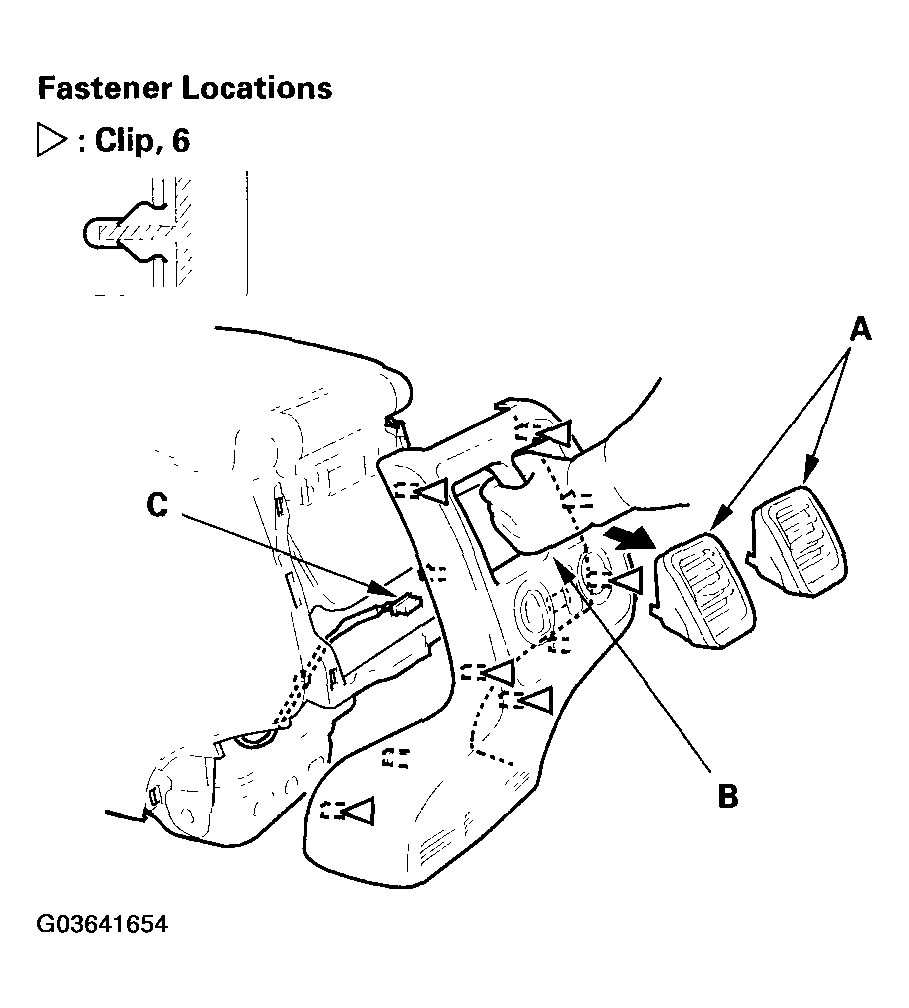

  6. Remove both vents (A). Reach into the air vents holes as shown, grab the console rear trim (B) and pull it out. Then disconnect the rear heater-A/C passenger's control panel-unit connector (C).
    Fig 5: Removing Vents
    G03641654Courtesy of AMERICAN HONDA MOTOR CO., INC.

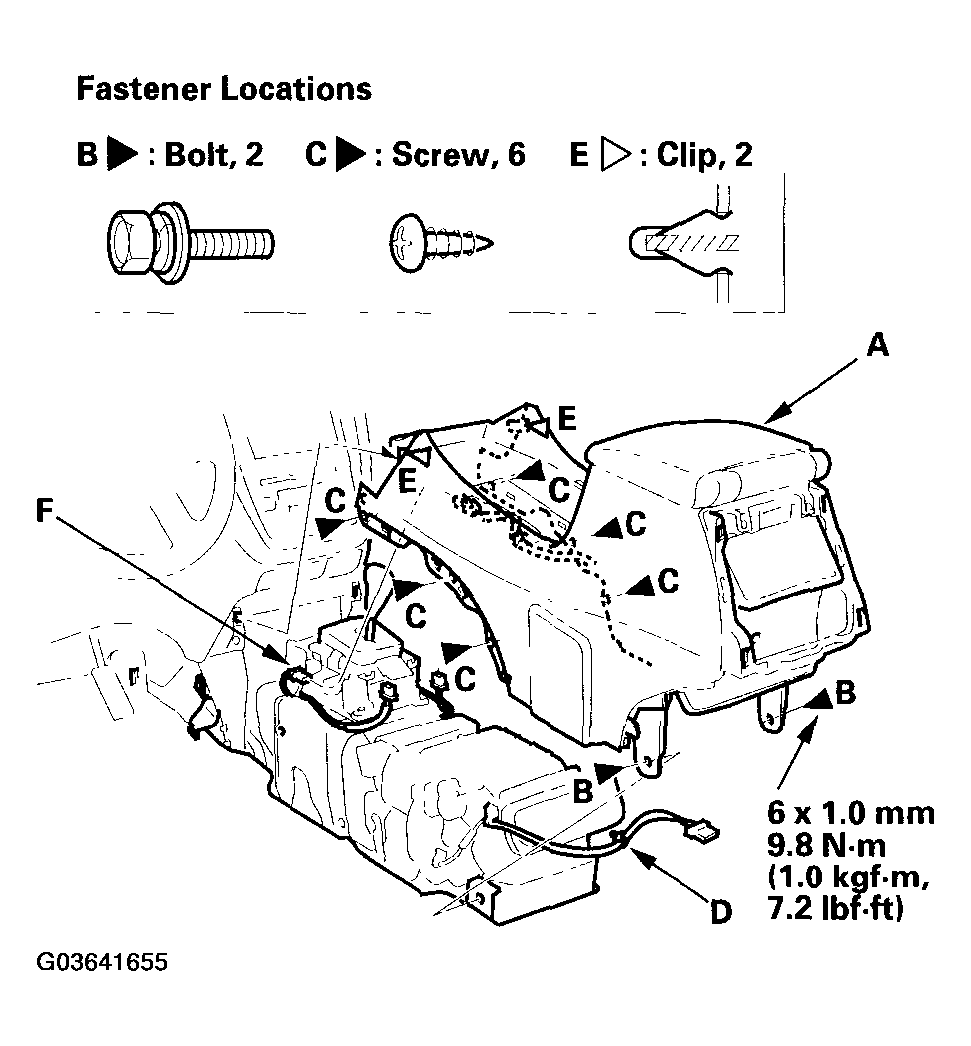

  7. Remove the center console (A).

    -1 On both sides, remove the bolts (B) and screws (C).

    -2 Detach the harness clip (D).

    -3 Pull the center console back to detach the clips (E).

    -4 While lifting up on the console, disconnect the accessory socket subharness connector (F), and remove the console.

    Fig 6: Removing Center Console
    G03641655Courtesy of AMERICAN HONDA MOTOR CO., INC.
  8. Install the center console in the reverse order of removal, and note these items:
    • Replace any damaged clips.
    • Make sure all the connectors are plugged in properly.
    • Push the clips into place securely.
