Passenger's Switch ('03 Model)

  1. Remove the power seat adjustment switch knobs and recline cover from the passenger's seat, then remove the power seat switch (see '04-06 MODELS ).
  2. Disconnect the 6P connectors from the power seat adjustment switch (A).

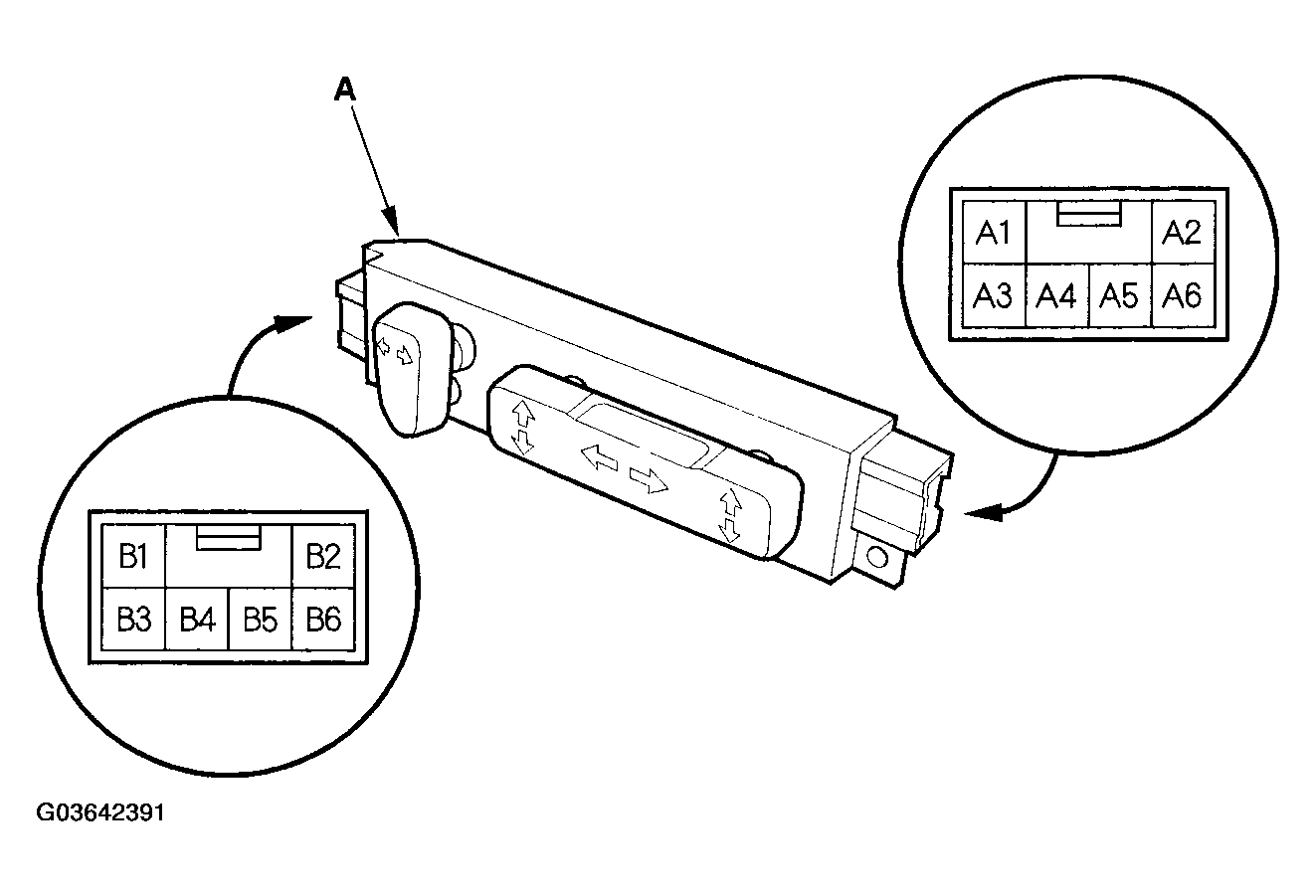

    Fig 1: Disconnecting 6P Connectors From Power Seat Adjustment Switch
    G03642391Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Reinstall the adjustment switch knobs to the switch.
  4. Check for continuity between the terminals in each switch position according to Fig 2 .

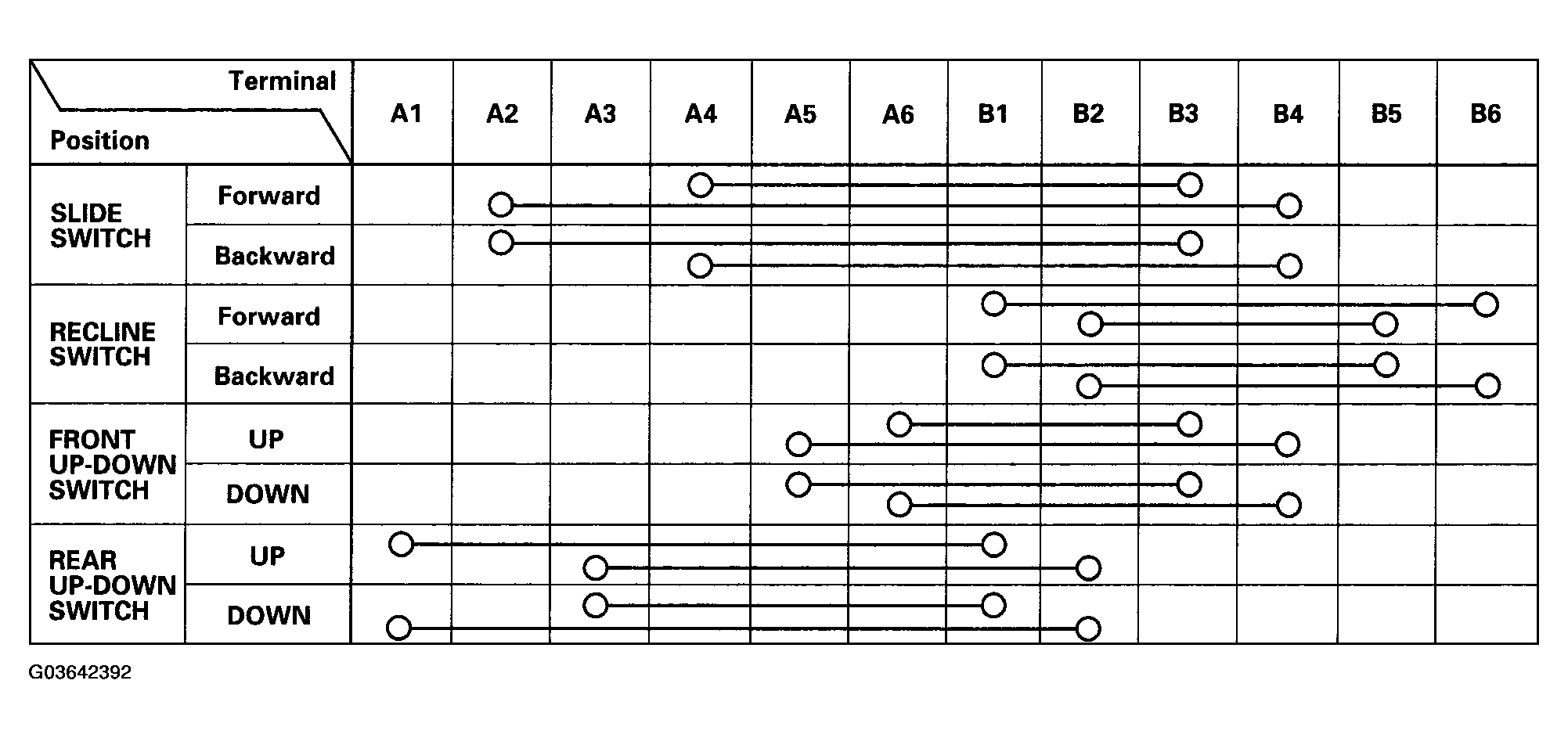

    Fig 2: Checking For Continuity Between Terminals In Each Switch Position Chart
    G03642392Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. If the continuity is not as specified, replace the switch.
