VTM-4 Control Unit Replacement

NOTE: The VTM-4 control unit must be initialized (see INITIALIZATION OF THE VTM-4 CONTROL UNIT ) after replacement, otherwise the 4WD system will not function.

Remove the front mounting bolts from the right third row seat, and fold the seat cushion back (see THIRD ROW SEAT REMOVAL/INSTALLATION ).

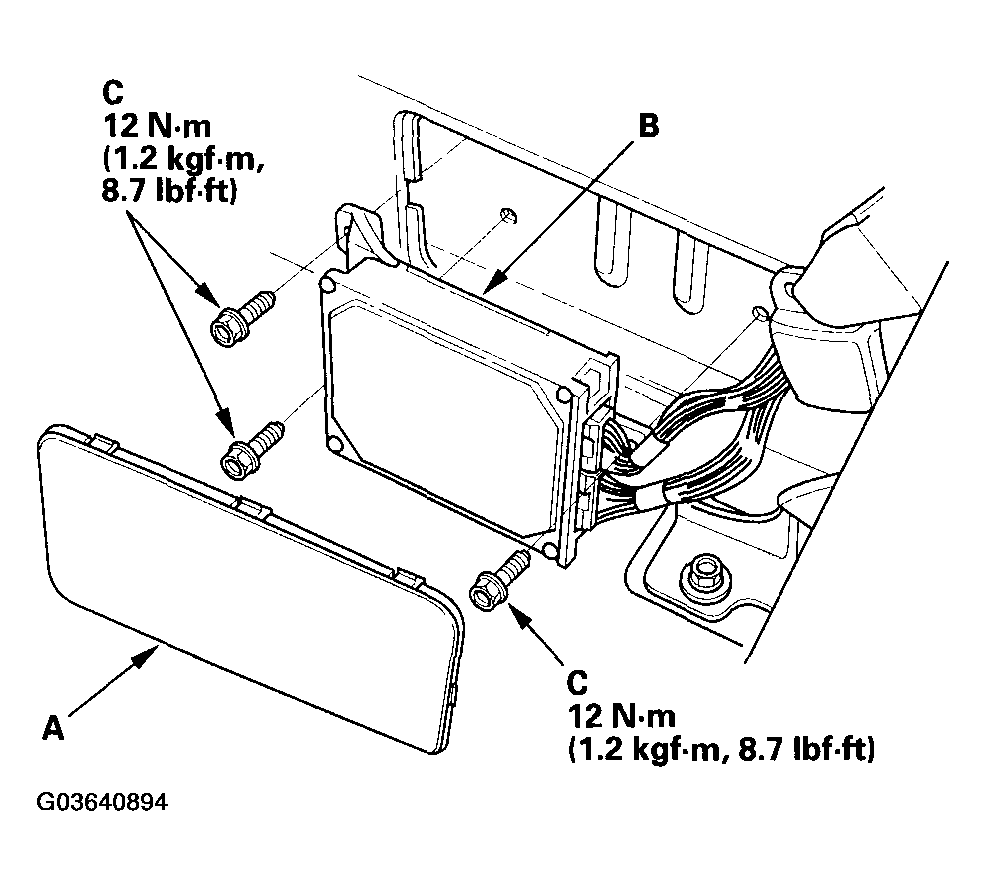

Remove the cover (A) from the right rear side trim panel to gain access to the VTM-4 control unit (B).

Fig 1: Removing Cover
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the three bolts (C) from the VTM-4 control unit.
Disconnect the VTM-4 control unit connectors.
Install the VTM-4 control unit in the reverse order of removal.
