Component Location Index

WARNING: This page is about a different car, the 2009 Acura MDX, 2008 Acura MDX, and 2007 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

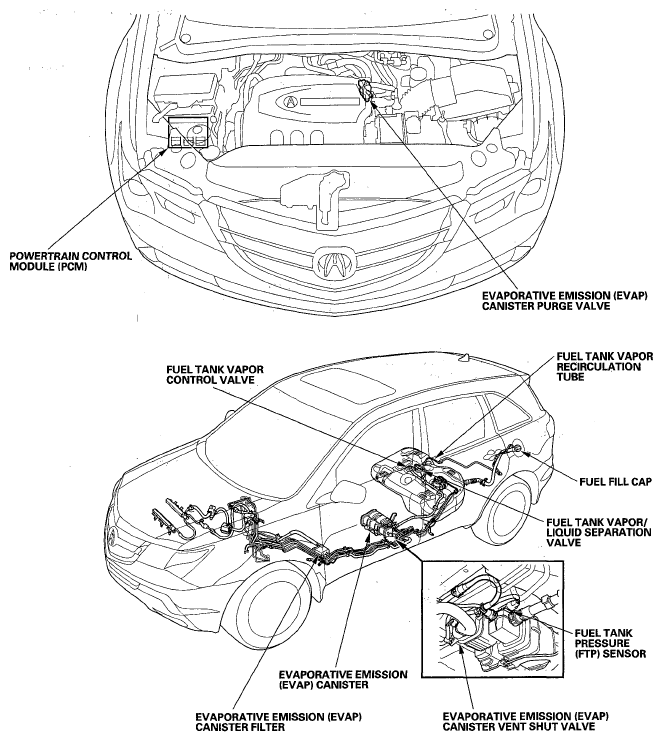

Fig 1: Identifying EVAP System Components Location

Courtesy of AMERICAN HONDA MOTOR CO., INC.
