Tailgate Support Strut Replacement

WARNING: This page is about a different car, the 2009 Acura MDX, 2008 Acura MDX, and 2007 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Use eye protection when prying the support strut clips.

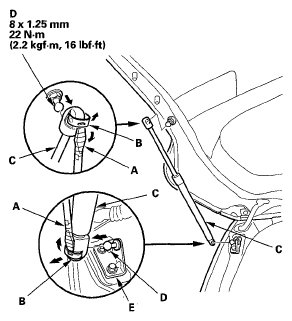

With the help of an assistant, use a flat-tip screwdriver (A) to pry the support strut clips (B) from each end of the support strut (C) at the tailgate and body, then release the support strut from the pivot bolt (D) and from the pivot bracket (E). Do not remove the clips from the support strut.

Fig 1: Tailgate Support Strut With Torque Specification
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the bolts, then remove the pivot bracket (A).

Fig 2: Pivot Bracket And Bolts With Torque Specification
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Reinstall the pivot bracket.
Set the clips (A) on the original position, then reattach the support strut (B) on the pivot bolt (C) and pivot bracket (D) by pushing the support strut onto the pivot.

Fig 3: Identifying Support Strut Onto Pivot
Courtesy of AMERICAN HONDA MOTOR CO., INC.
