A/T Interlock System
›
Circuit Diagram
Circuit Diagram

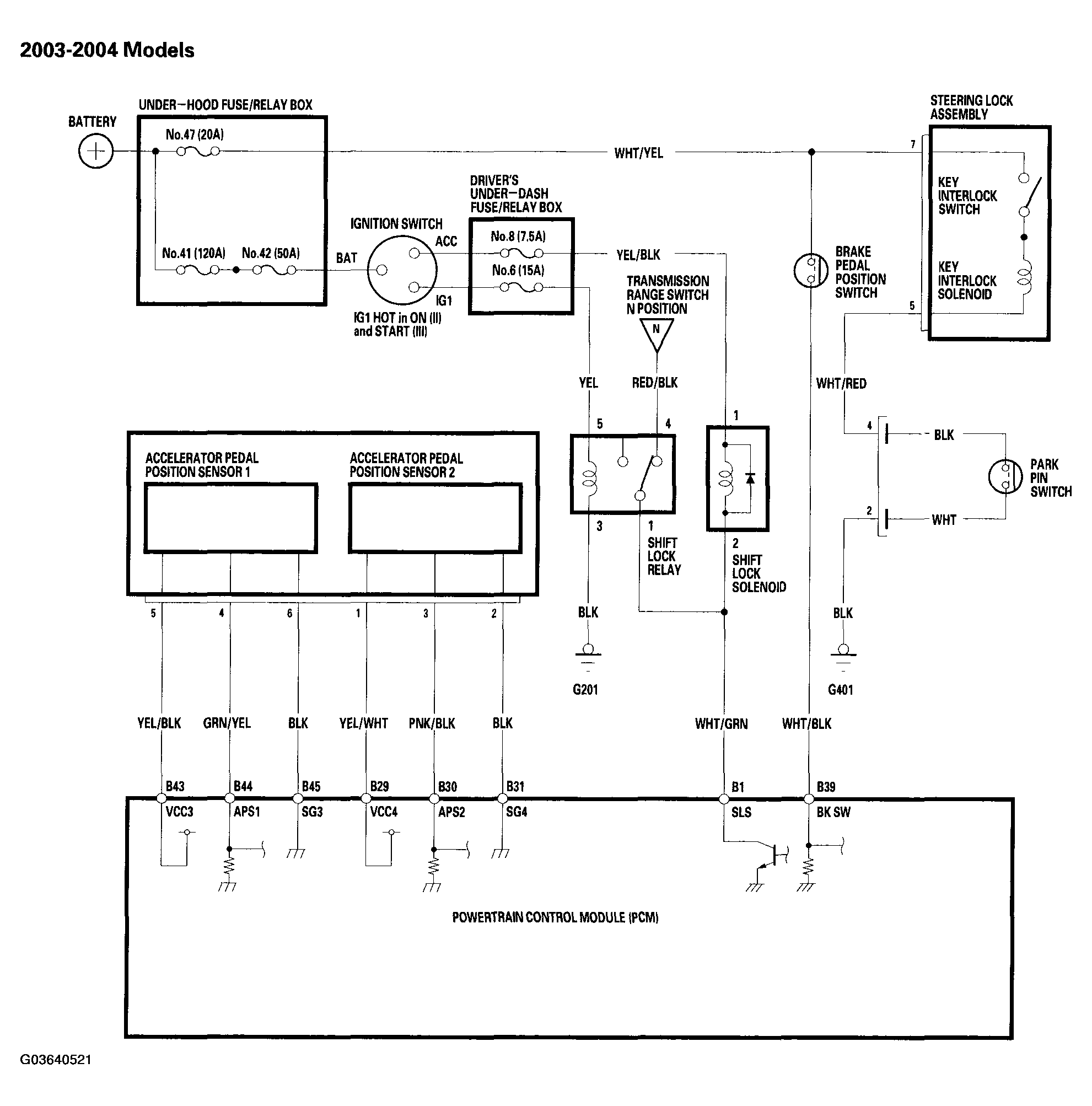

Fig 1: A/T Interlock System Circuit Diagram - 2003-2004 Models
Courtesy of AMERICAN HONDA MOTOR CO., INC.

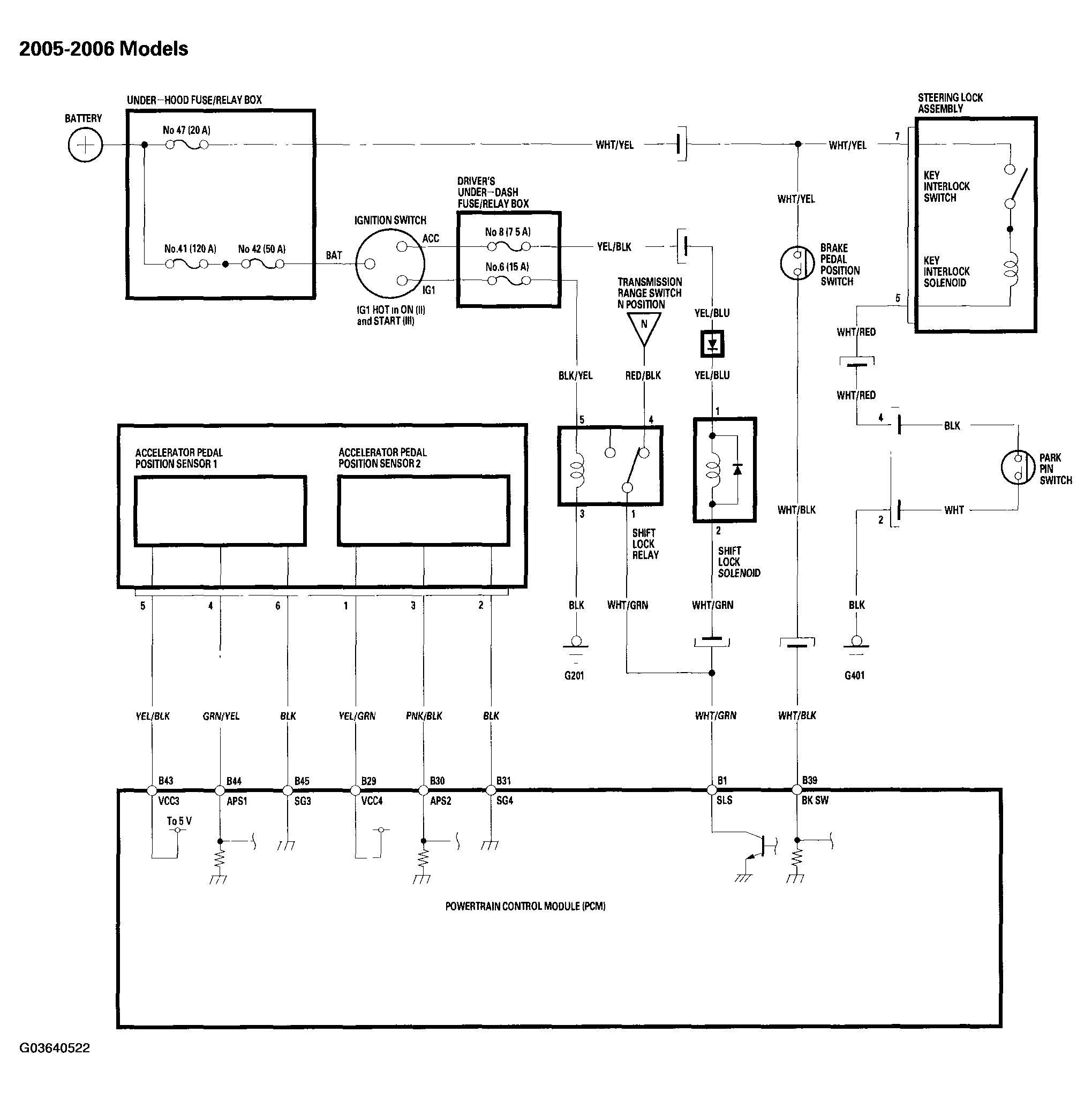

Fig 2: A/T Interlock System Circuit Diagram - 2005-2006 Models
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
