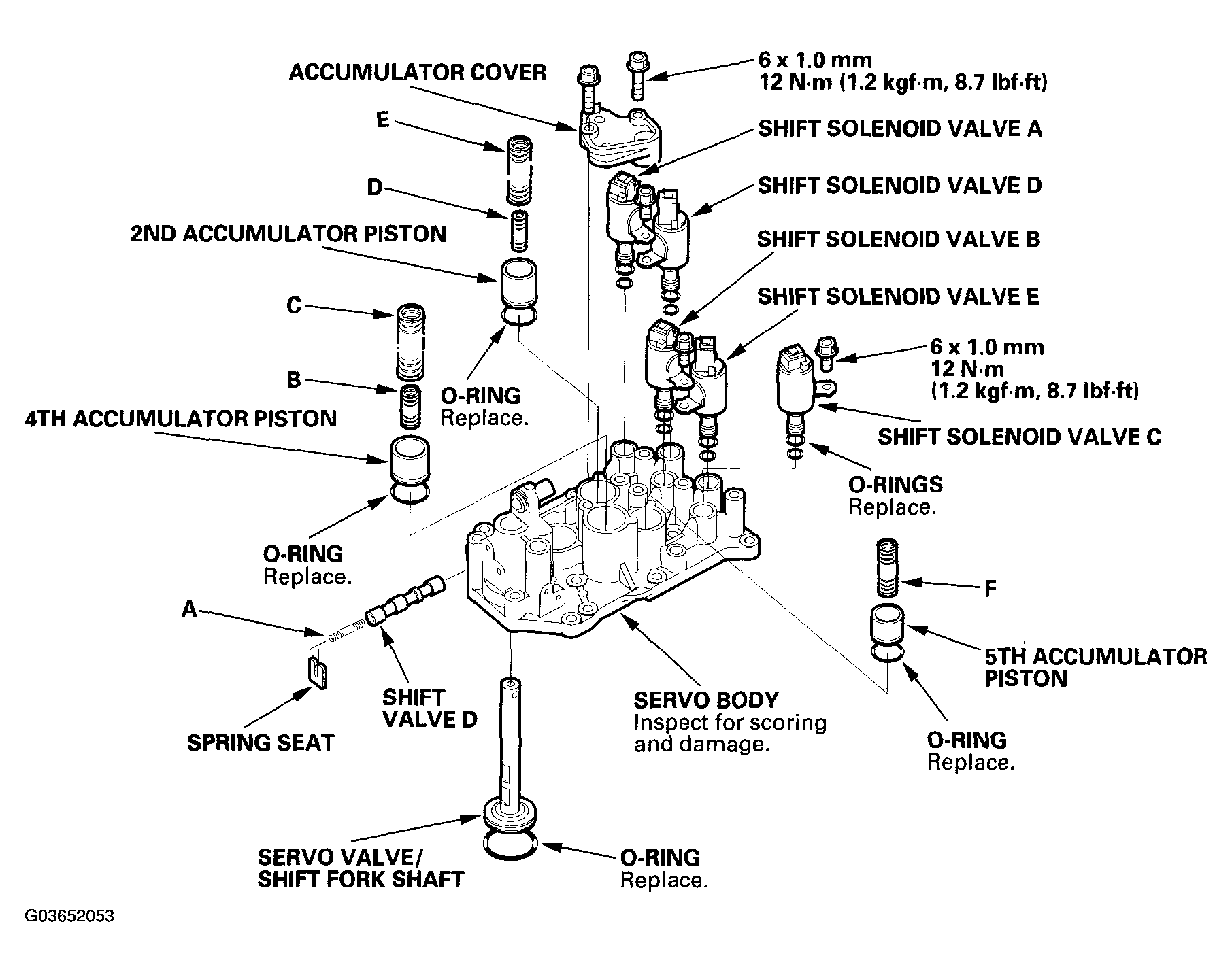

Servo Body Disassembly, Inspection, and Reassembly: Notes
- Clean all parts thoroughly in solvent or carburetor cleaner, and dry them with compressed air. Blowout all passages.
- Inspect the valve body for scoring and damage.
- Check shift valve D for free movement. If any fail to slide freely, refer to valve body repair (see VALVE BODY REPAIR
).
- Do not hold the shift solenoid valve connector to remove and install it. Be sure to hold the shift solenoid valve body. When installing the shift solenoid valves, refer to Shift Solenoid Valves Installation (see SHIFT SOLENOID VALVE INSTALLATION
).
- Coat all parts with ATF during assembly.
- Replace the O-rings with new ones.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
