Component Location Index

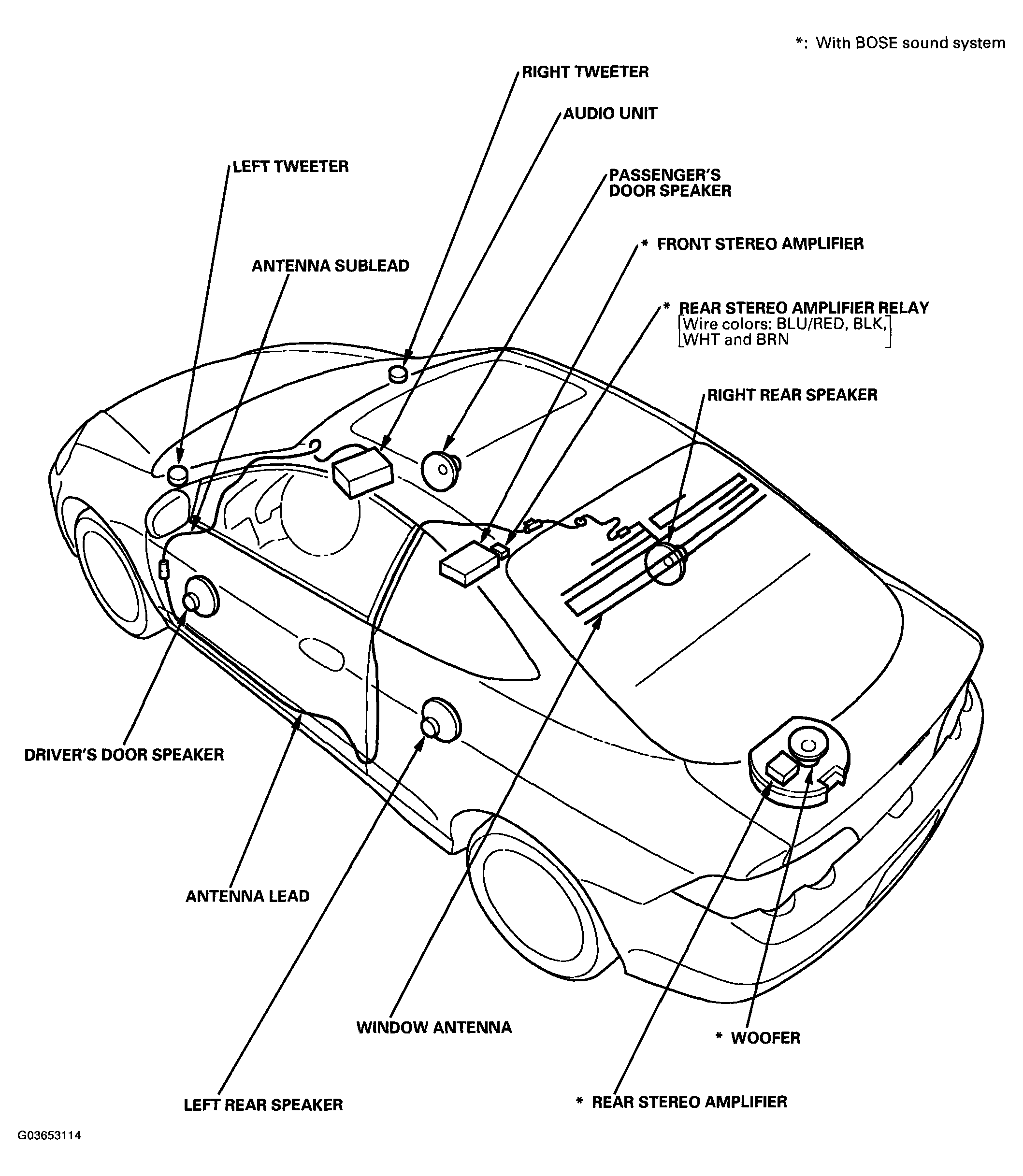

Fig 1: Identifying Audio System Components
Courtesy of AMERICAN HONDA MOTOR CO., INC.
