Circuit Diagram - Power Mirror

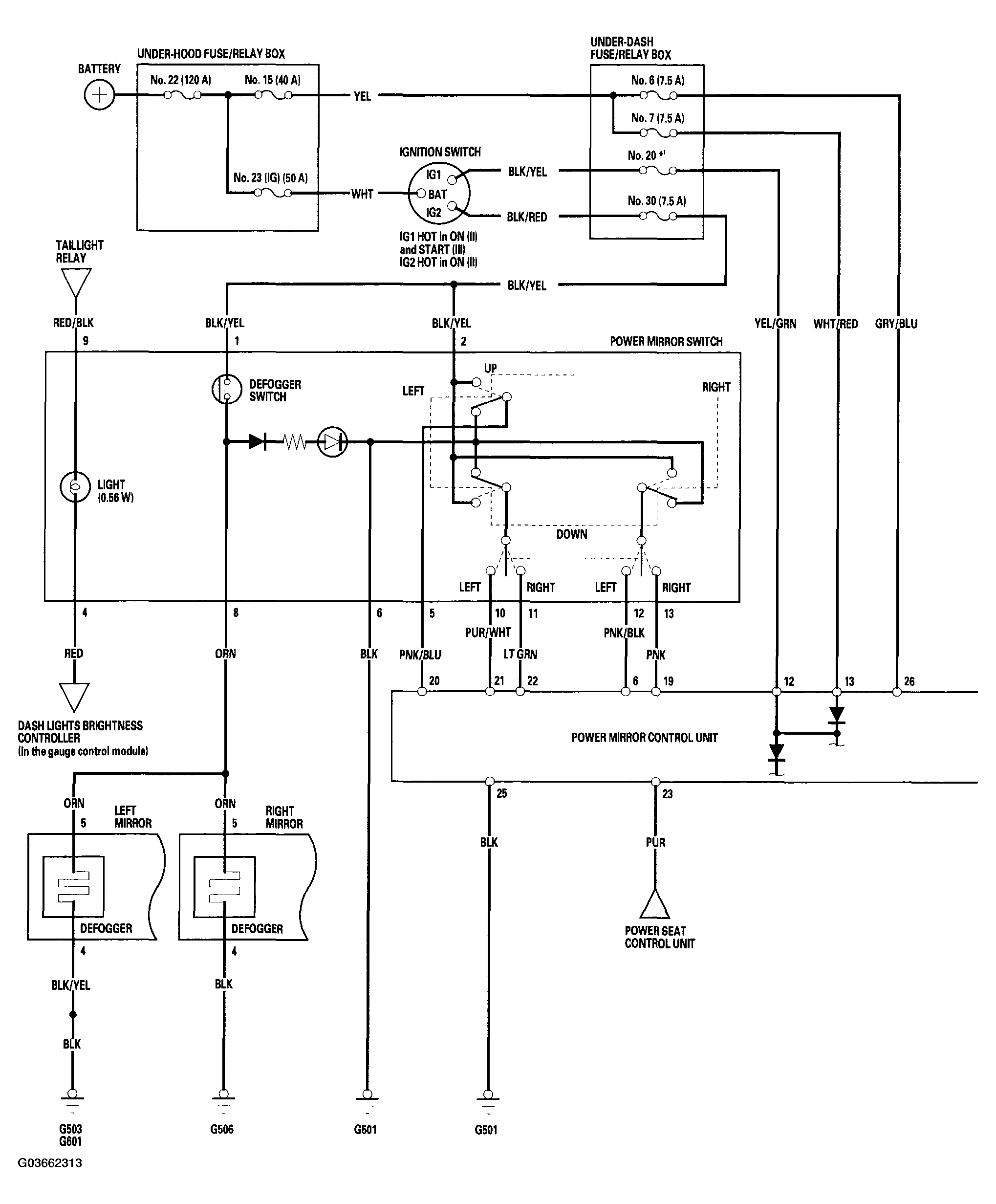

Fig 1: Circuit Diagram - Power Mirror (1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

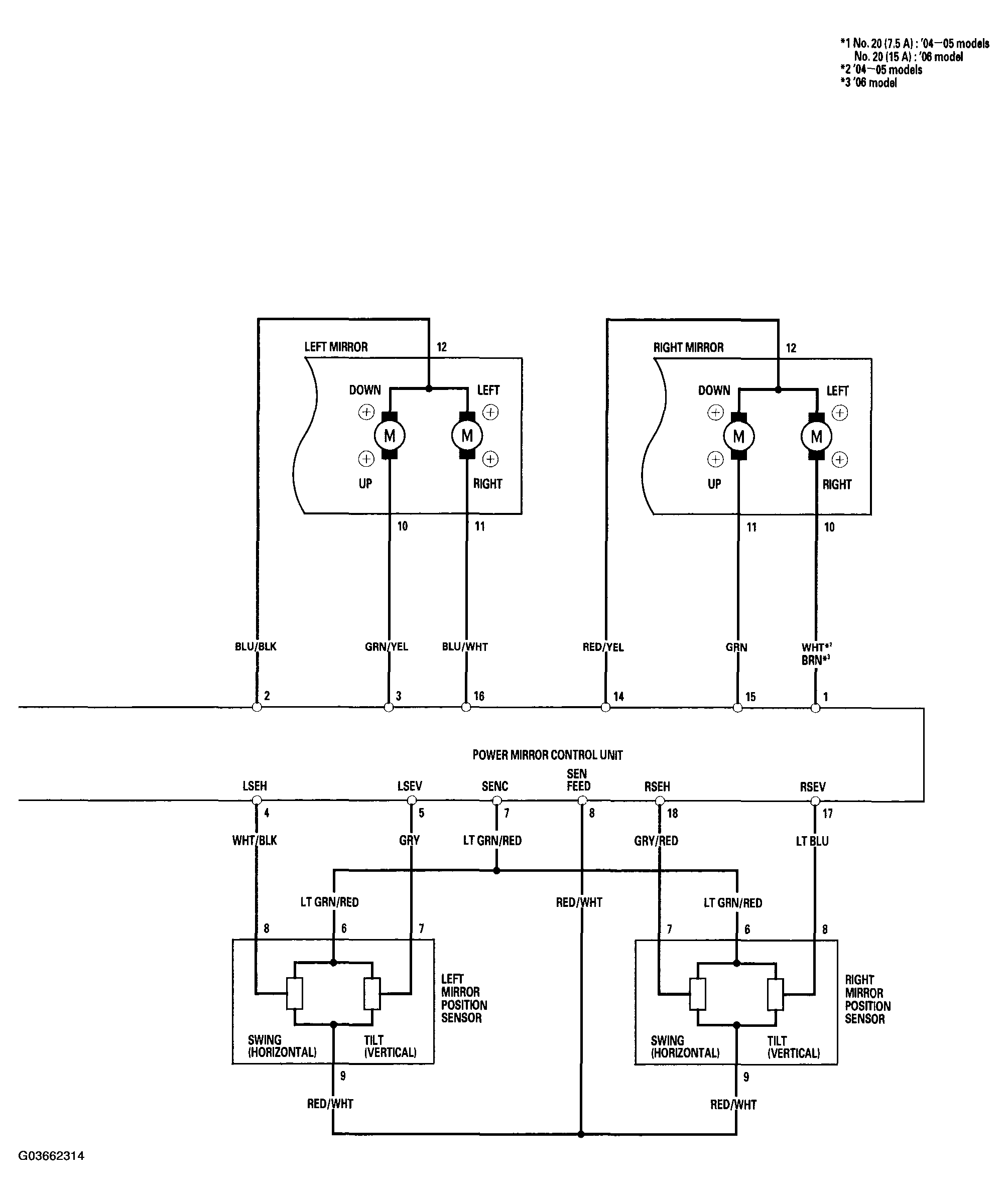

Fig 2: Circuit Diagram - Power Mirror (2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
