FixVault
Home
›
Acura
›
2004
›
TL Automatic
›
Repair and Diagnosis
›
Electrical
›
Body Electrical
›
OEM Connector End Views
›
Connector End Views
›
C631 Connector End View
C631 Connector End View

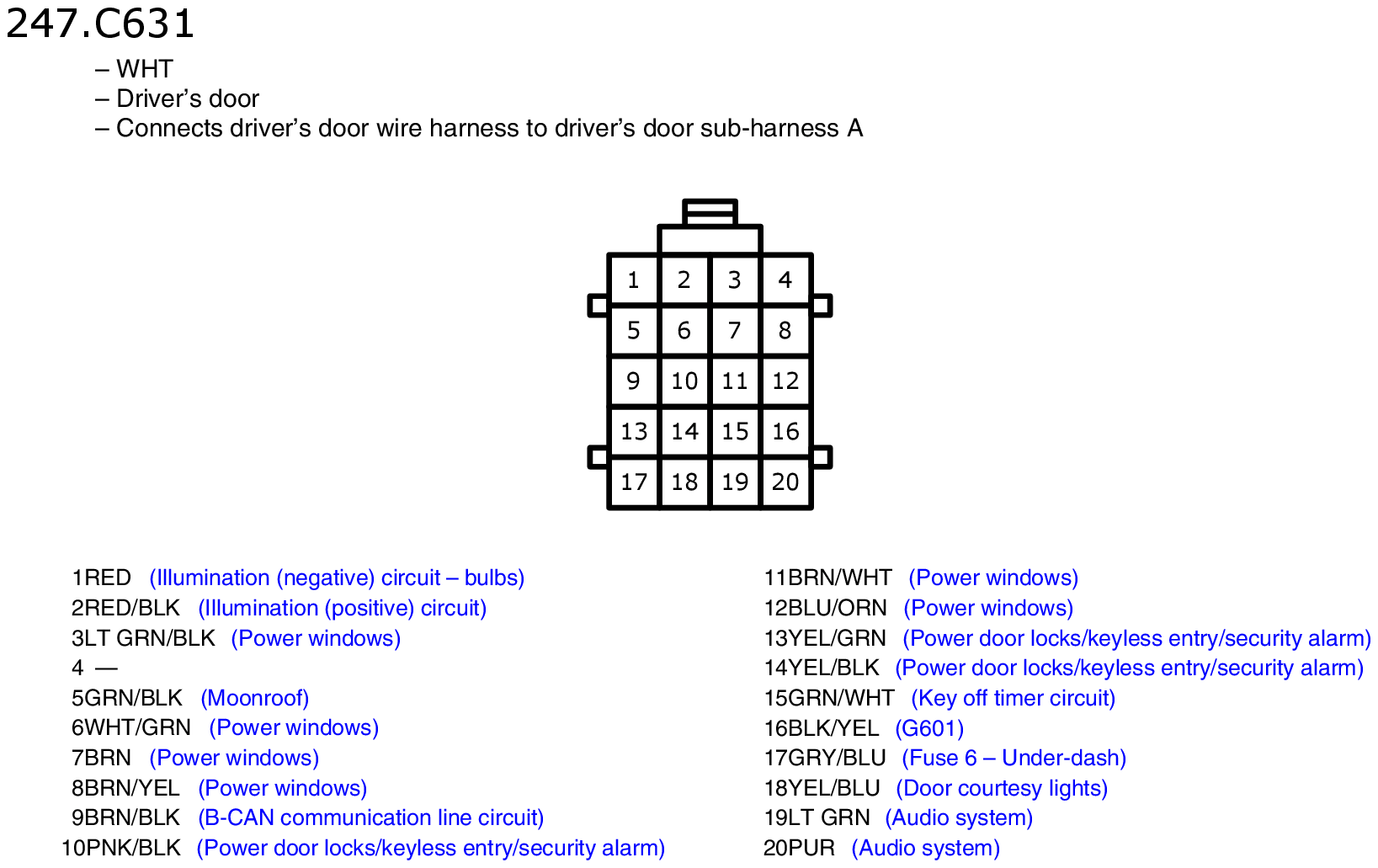

Fig 1: C631 Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
