Left Front Side Marker Light Connector End View
Left Front Side Marker Light Connector End View

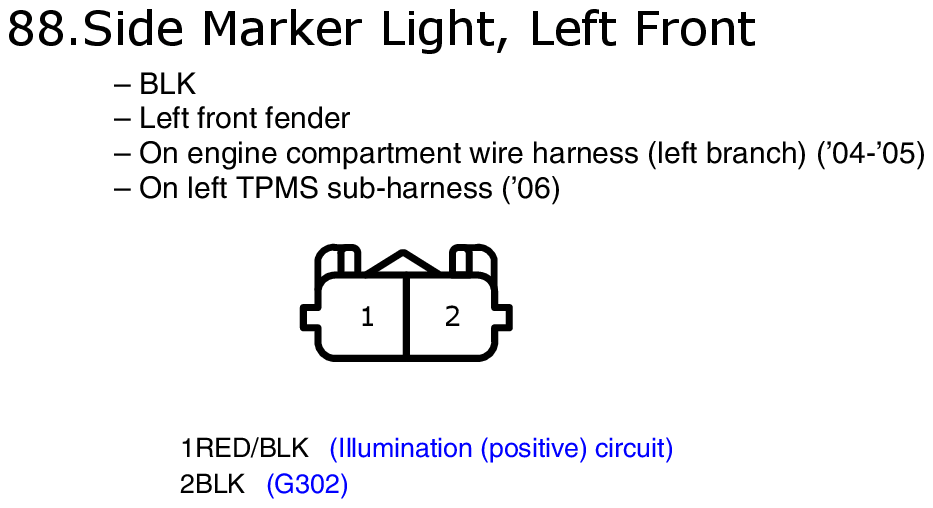

Fig 1: Left Front Side Marker Light Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
