Windshield Washer Motor Connector End View
Windshield Washer Motor Connector End View

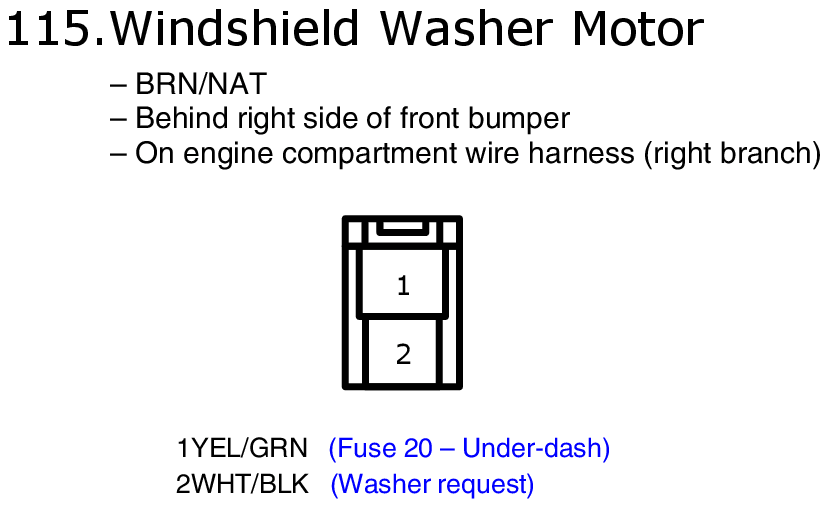

Fig 1: Windshield Washer Motor Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
