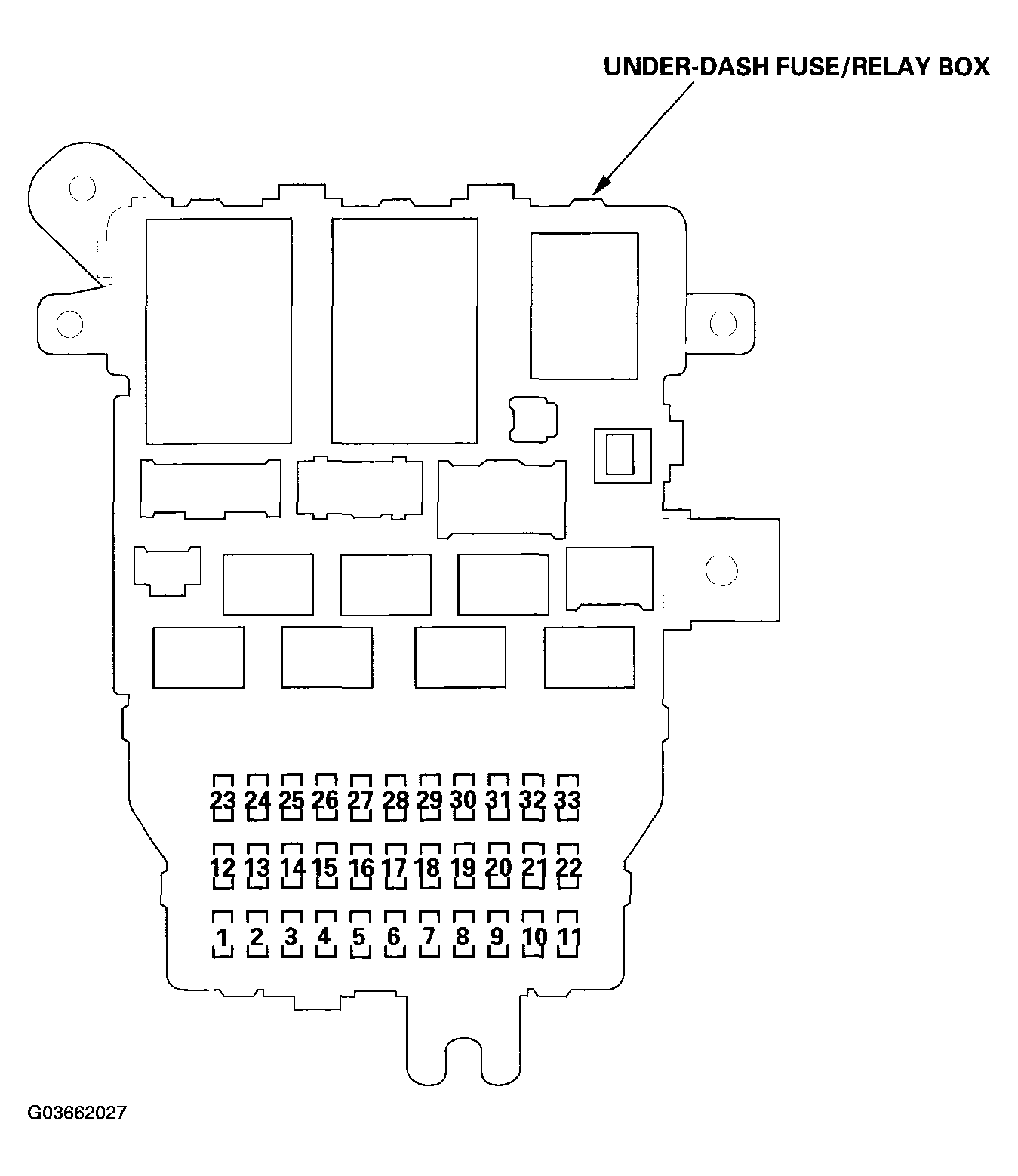

| 1 |
15A |
WHT/GRN |
Throttle actuator control module (via throttle actuator control module relay) |
| 2 |
15A |
Fuse/relay box socket |
Ignition coil (IG) relay |
| BLK/WHT |
Ignition coils (via ignition coil relay) |
| 3 |
- |
- |
Not used |
| 4 |
15A |
WHT/BLK |
A/F sensors (front and rear bank), Secondary HO2S (front and rear bank) |
| 5 |
20 A |
WHT |
Audio amplifier, Audio unit |
| 6 |
7.5 A |
GRY/BLU |
Courtesy lights, HandsFreeLink control unit, Ignition key light, Keyless receiver unit. Map lights. Roof console, Trunk light. Vanity mirror lights |
| 7 |
7.5 A |
WHT/RED |
Audio-HVAC display module, Clock (without navigation), Combination switch control unit, Gauge control module, Front passenger's power window switch/control unit, Immobilizer control unit-receiver, Navigation unit, Security indicator. Power window master switch, Power mirror control unit, XM receiver unit |
| Fuse/relay box socket |
Multiplex integrated control unit (MICU) |
| 8 |
20 A |
WHT |
Trunk lid opener solenoid |
| Fuse/relay box socket |
Multiplex integrated control unit (MICU) |
| 9 |
15A |
WHT/RED |
Front accessory power socket. Rear accessory power socket |
| 10 |
7.5 A |
WHT |
OPDS unit, SRS unit |
| 11 |
30 A |
GRN |
Windshield wiper motor |
| 12 |
7.5 A |
RED/WHT |
TPMS control unit ('06 model) |
| 13 |
20 A |
RED/WHT |
Front passenger's power seat recline motor |
| 14 |
20 A |
WHT/BLU |
Driver's power seat control unit |
| 15 |
20 A |
RED/BLK |
Seat heaters and seat heater switches indicator light |
| 16 |
20 A |
WHT/RED |
Driver's power seat control unit, Driver's seat lumbar motor |
| 17 |
20 A |
WHT/GRN |
Front passenger's power seat slide motor |
| 18 |
15A |
BLK/YEL |
Alternator, ECM/PCM (via brake pedal position switch), ELD unit, Engine mount control solenoid valve, EVAP canister purge valve, EVAP vent shut solenoid valve, Reverse lockout solenoid (M/T), VSA modulator-control unit |
| 19 |
15A |
BLK/GRN |
ECM/PCM, Immobilizer control unit-receiver |
| YEL/GRN |
Fuel pump (via PGM-FI main relay 2) |
| 20 |
7.5A |
YEL/GRN |
Automatic dimming inside mirror, Power mirror control unit. Windshield washer motor |
| 15A |
| 21 |
7.5 A |
YEL |
Back-up lights, Clock (without navigation), Combination switch control unit, Gauge control module, Keyless receiver unit, Multiplex integrated control unit (MICU), Relay control module, Shift lock relay (A/T), Seat belt tension reducers, TPMS control unit |
| 22 |
10 A |
WHT/RED |
SRS unit |
| 23 |
7.5 A |
YEL/WHT |
Radiator fan relay |
| Fuse/relay box socket |
A/F sensor relay |
| 24 |
20 A |
YEL/RED |
Left rear power window motor |
| 25 |
20 A |
YEL/BLU |
Right rear power window motor |
| 26 |
30 A |
GRN/BLK |
Front passenger's power window motor |
| 27 |
30 A |
GRN/WHT |
Driver's power window motor |
| 28 |
20 A |
GRN |
Moonroof control unit |
| 29 |
- |
- |
Not used |
| 30 |
7.5 A |
BLK/YEL |
A/C compressor clutch relay. Blower motor relay, Climate control unit, Condenser fan relay, Power mirror actuators and defoggers. Radiator fan relay, Recirculation control motor, Rear window defogger relay |
| 31 |
- |
- |
Not used |
| 32 |
7.5 A |
YEL/RED |
Audio unit, Audio-HVAC display module. Navigation unit, Shift lock solenoid (A/T), HandsFreeLink control unit |
| Fuse/relay box socket |
Accessory power socket relay, Multiplex integrated control unit (MICU) |
| 33 |
- |
- |
Not used |
