Engine Compartment

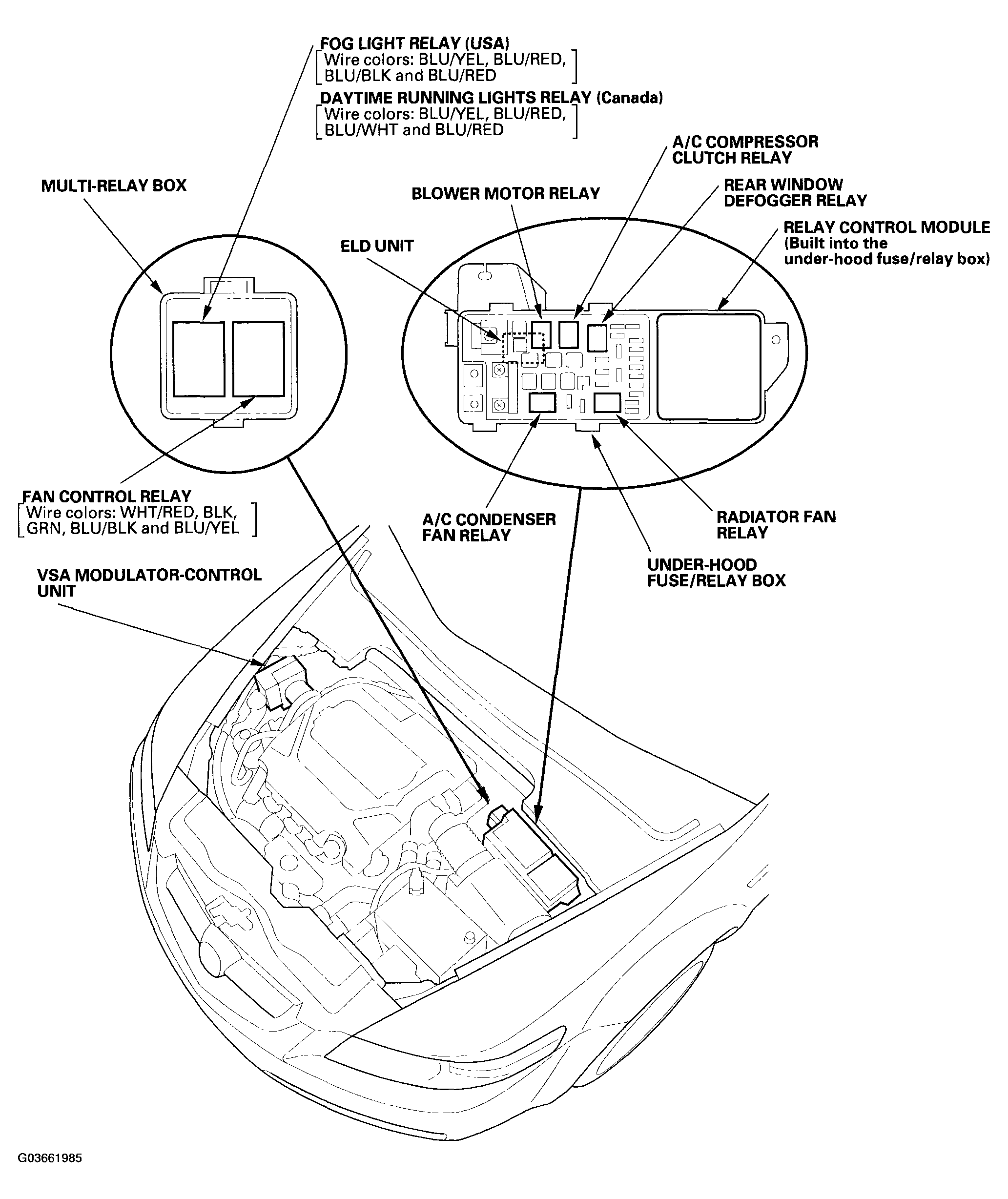

Fig 1: Exploded View Of Engine Compartment
G03661985Courtesy of AMERICAN HONDA MOTOR CO., INC.
