Acura
›
2004
›
TL Automatic
›
Repair and Diagnosis
›
Engine Mechanical
›
Mechanical
›
Engine Mount Control System
›
Component Location Index
Component Location Index

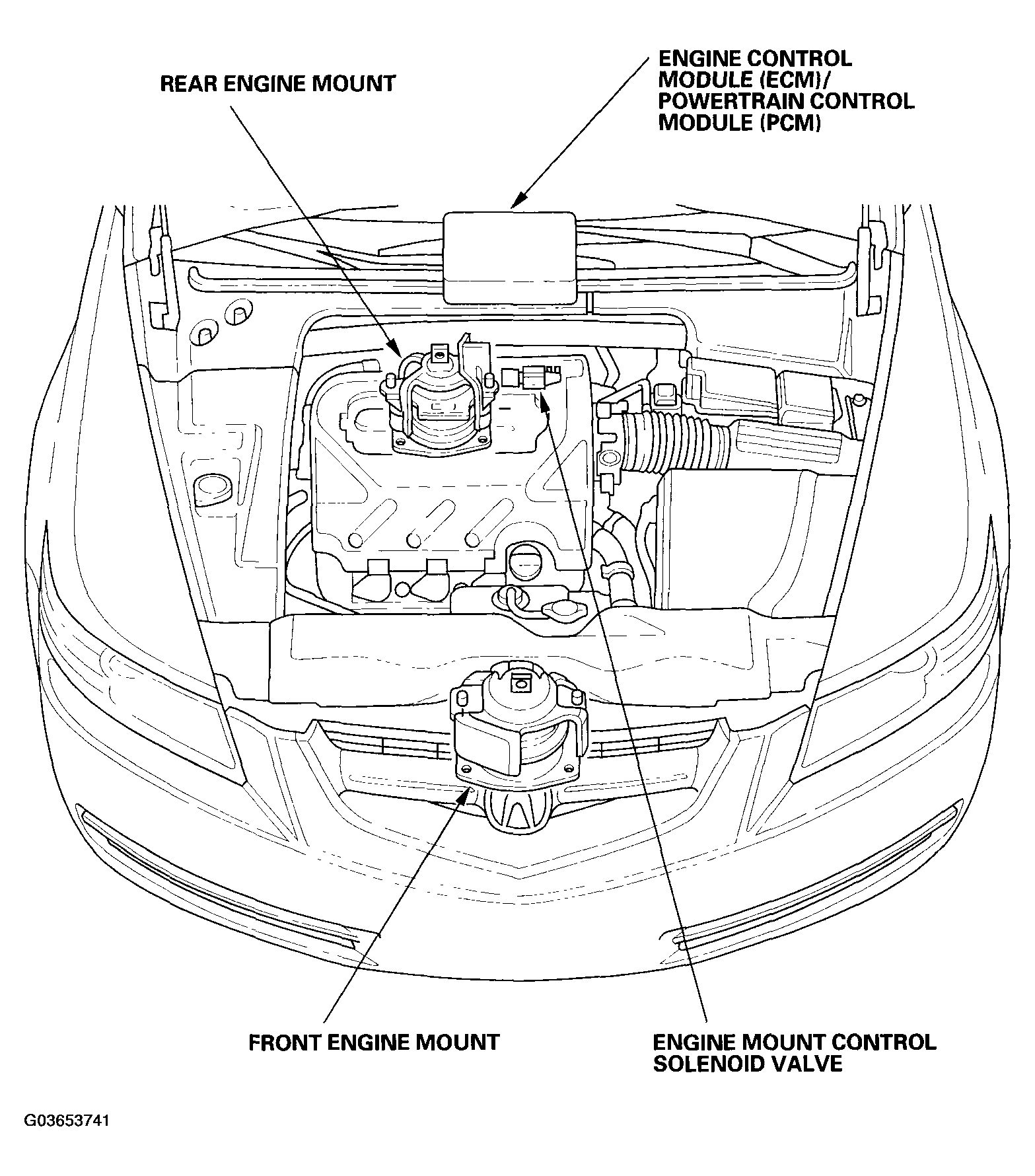

Fig 1: Identifying Engine Mount Control System Component Location
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
