IMT Actuator Replacement

  1. Remove the intake manifold cover (see step 1 on REMOVAL ).
  2. Disconnect the IMT actuator 5P connector (A).

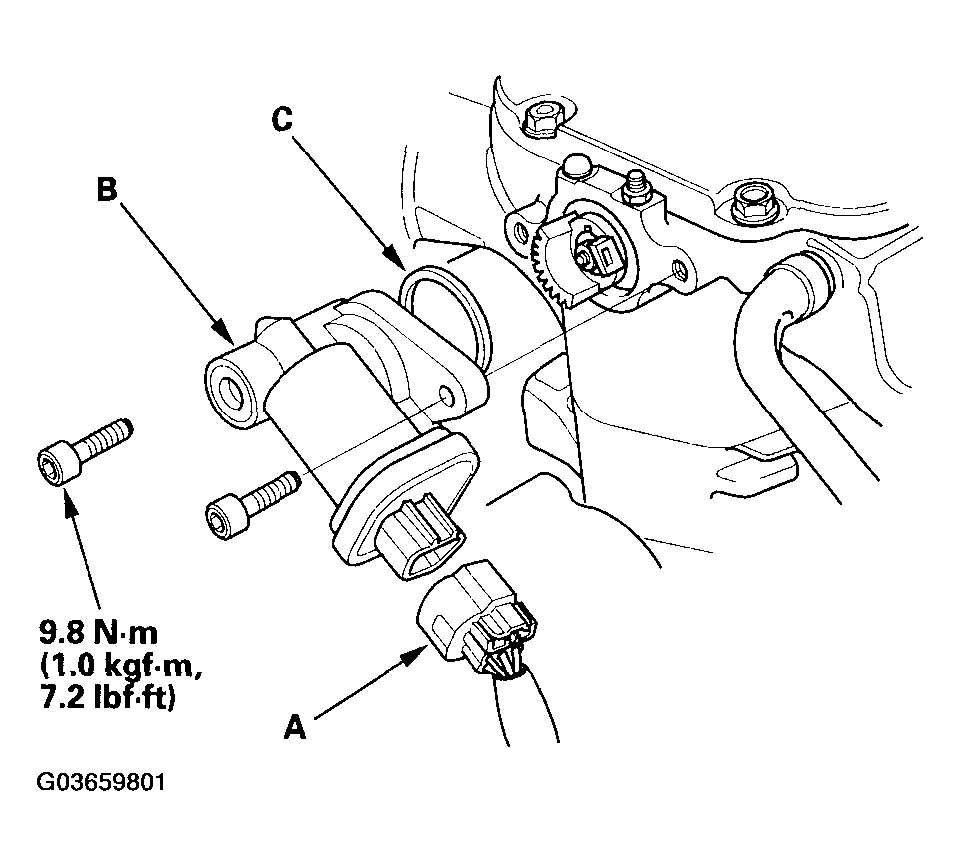

    Fig 1: Disconnecting IMT Actuator 5P Connector (A)
    G03659801Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the bolts and the IMT actuator (B).
  4. Install the actuator in the reverse order of removal with a new O-ring (C).
  5. Install the intake manifold cover (see step 9 in INSTALLATION ).
