Resonator Removal/Installation

  1. Remove the front bumper (see FRONT BUMPER REMOVAL/INSTALLATION ).
  2. Remove the bolts (A), and cover (B).

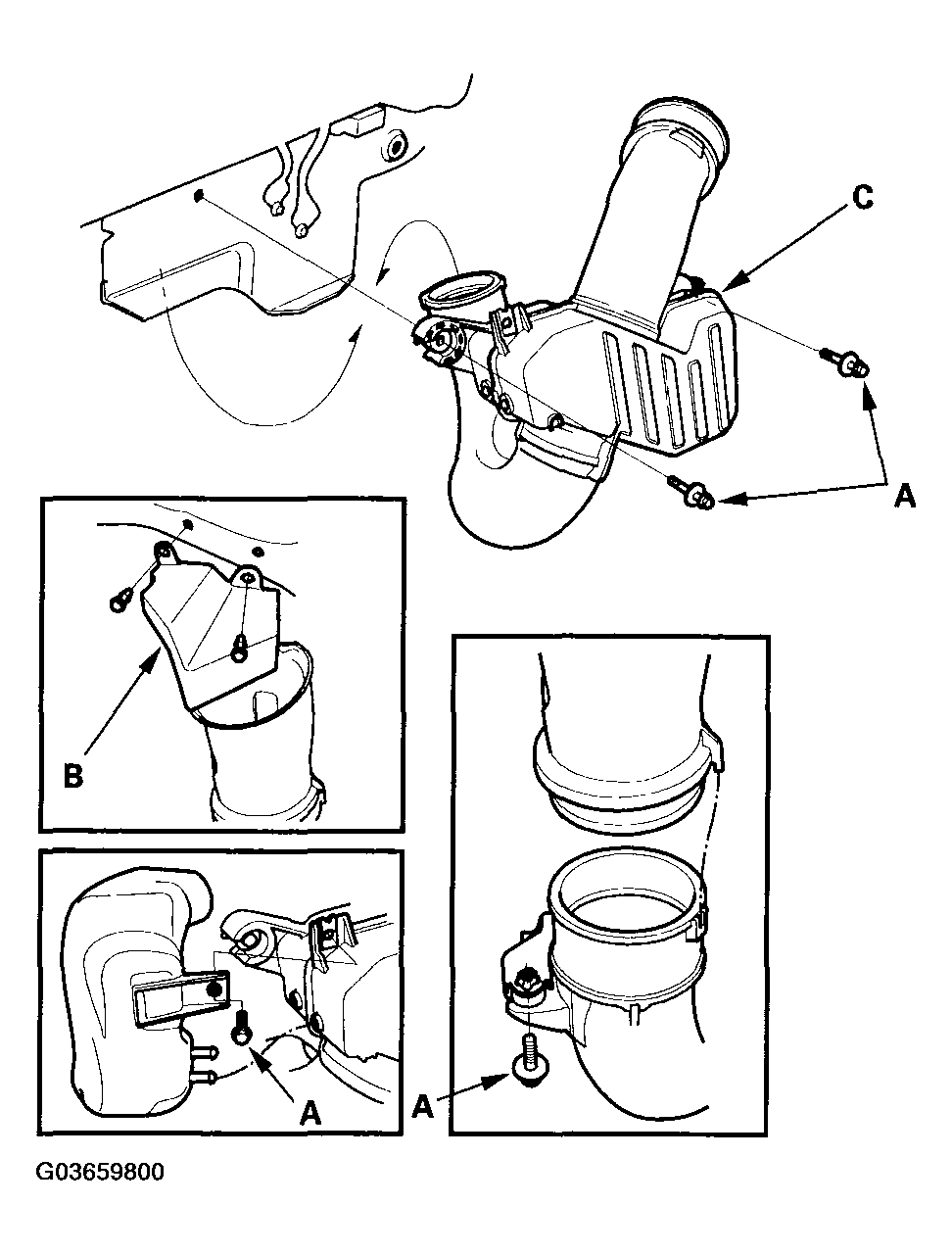

    Fig 1: Removing Bolts And Cover Of Resonator
    G03659800Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the resonator (C).
  4. Install the parts in the reverse order of removal.
