Front Bank (Bank 2)

  1. Disconnect the front A/F sensor 8P connector (A), then remove the A/F sensor (B).

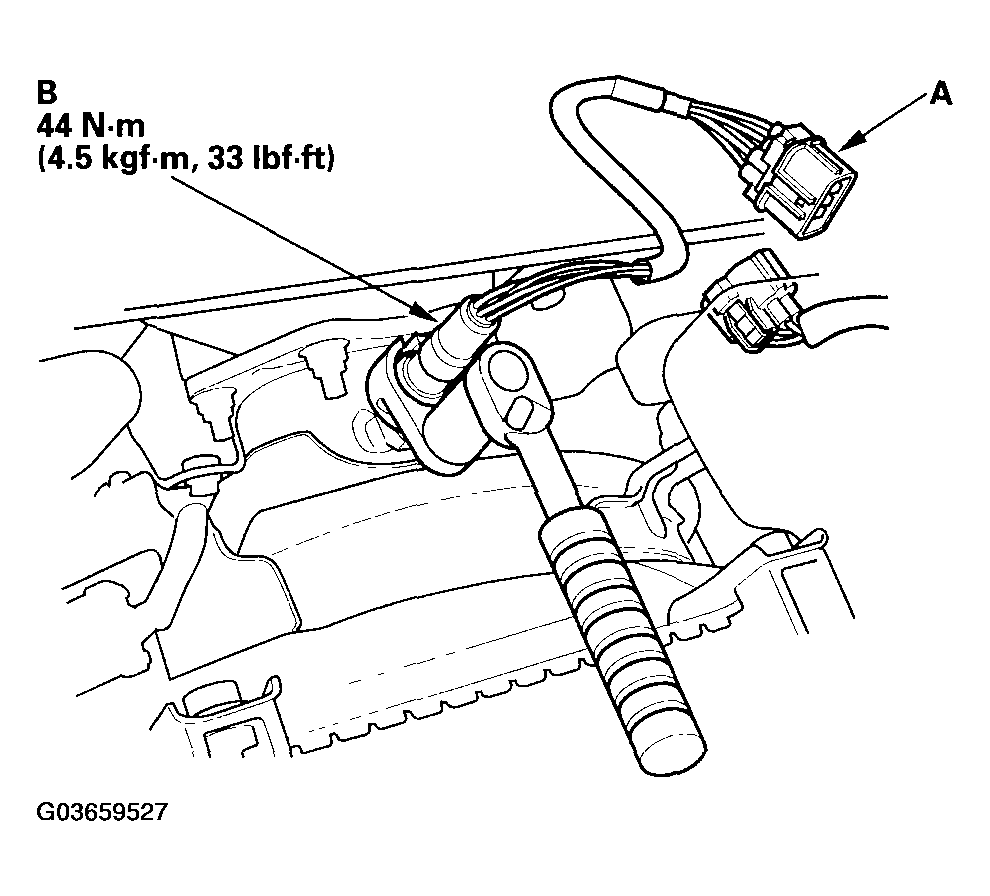

    Fig 1: Removing A/F Sensor
    G03659527Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Install the front A/F sensor in the reverse order of removal.
