Driver's Air Mix Control Motor Replacement

Remove the driver's dashboard lower cover (see DRIVER'S DASHBOARD LOWER COVER REMOVAL/INSTALLATION ).

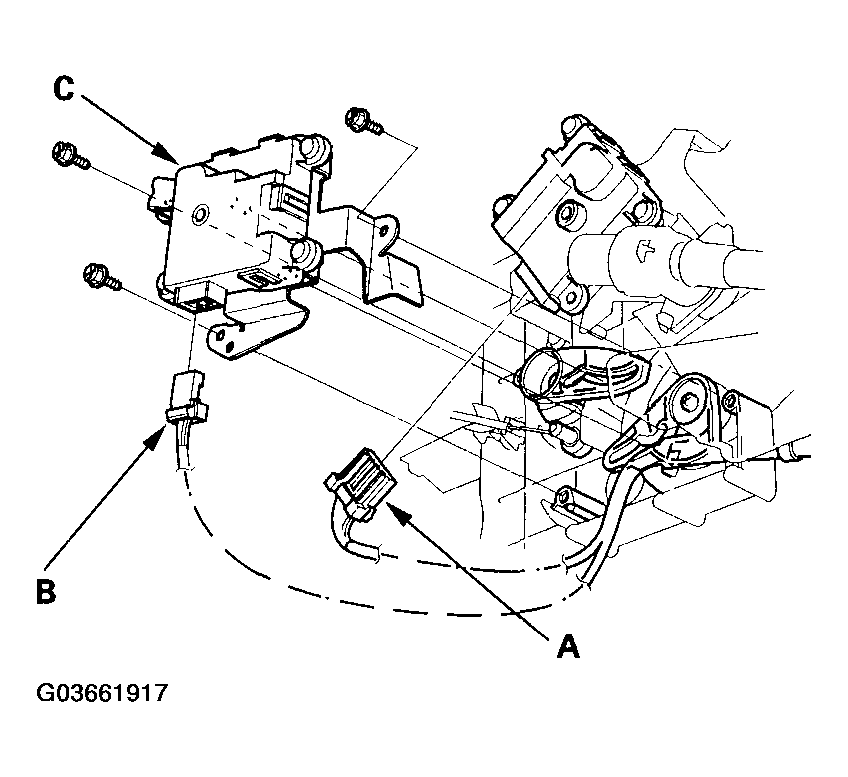

Disconnect the 10P connector (A) from the driver's mode control motor. Disconnect the 5P connector (B) from the driver's air mix control motor (C). Remove the self-tapping screws and the driver's air mix control motor from the heater unit.

Fig 1: Removing Driver's Dashboard Lower Cover
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the motor in the reverse order of removal. Make sure the pin on the motor is properly engaged with the linkage. After installation, make sure the motor runs smoothly.
