Driver's Mode Control Motor Replacement

  1. Remove the driver's dashboard under cover (see DRIVER'S DASHBOARD UNDER COVER REMOVAL/INSTALLATION )
  2. Disconnect the 10P connector (A) from the driver's mode control motor (B). Remove the self-tapping screws and the driver's mode control motor from the heater unit.

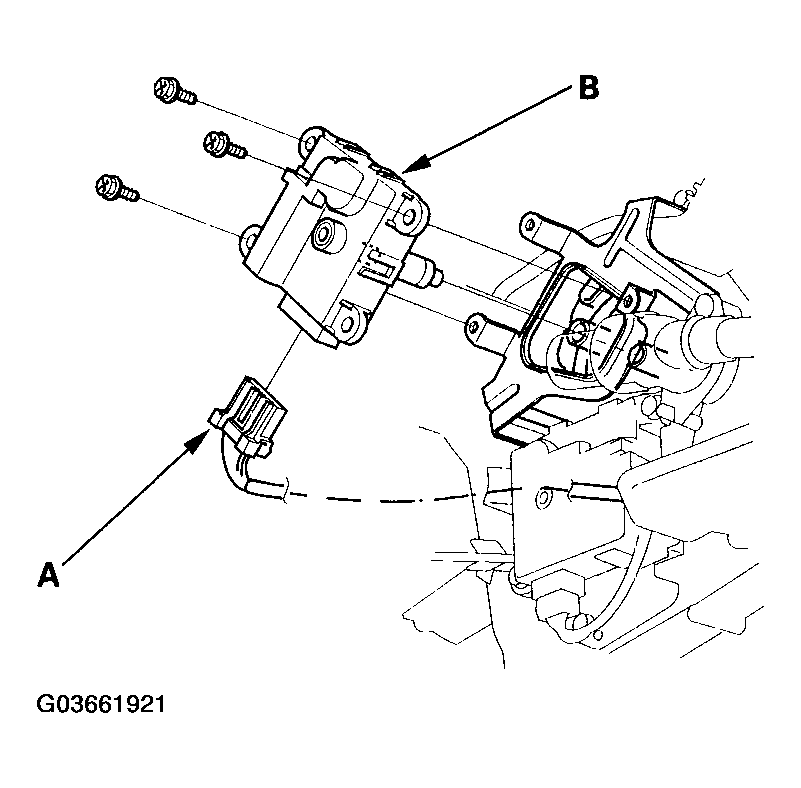

    Fig 1: Disconnecting 10P Connector From Driver's Mode Control Motor
    G03661921Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the motor in the reverse order of removal. After installation, make sure the motor runs smoothly.
