Heating, Ventilation & A/C (HVAC)
›
HVAC Control Systems
›
Climate Control System
›
System Description
›
Climate Control Unit Inputs and Outputs
Climate Control Unit Inputs and Outputs

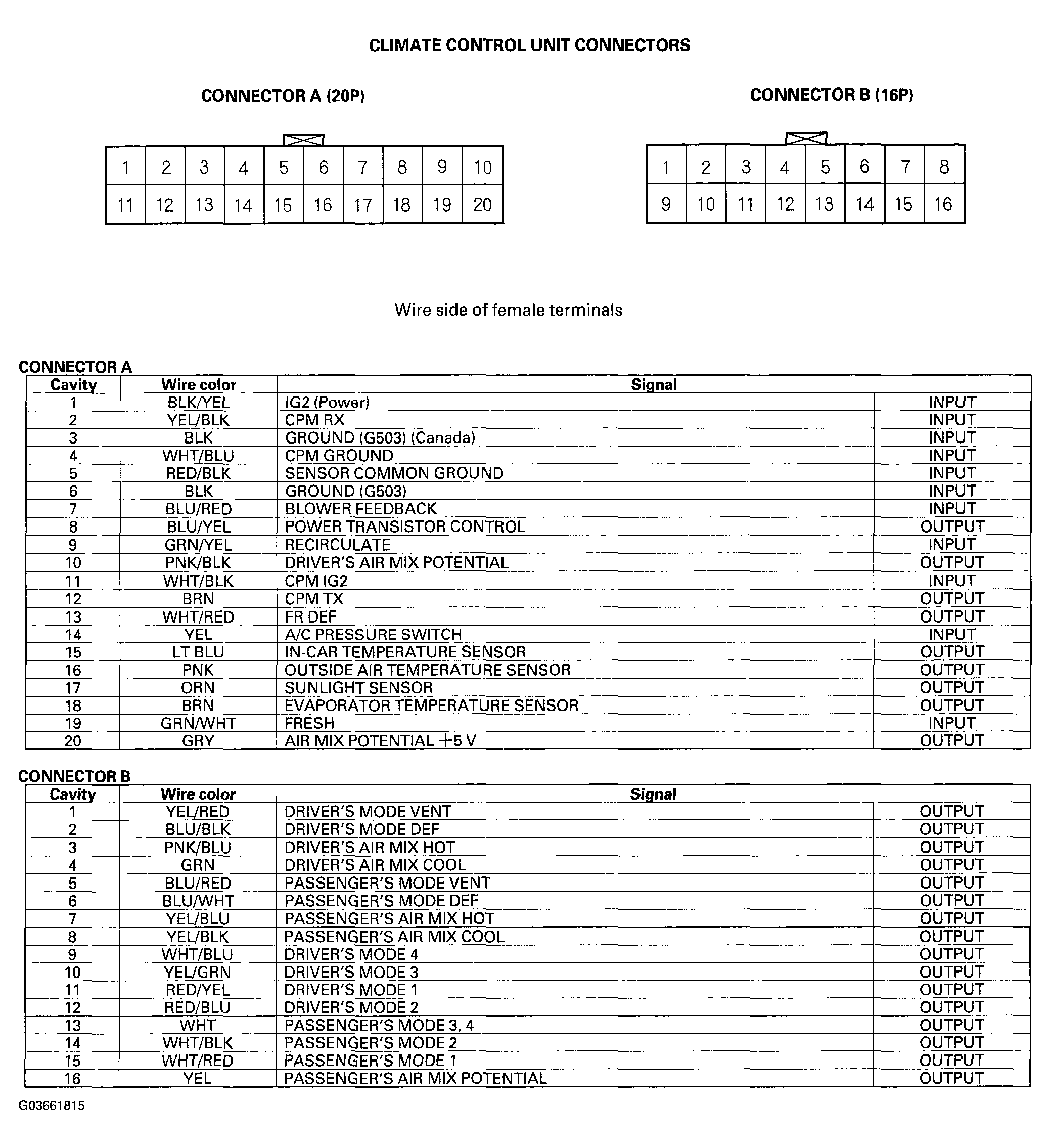

Fig 1: Identifying Climate Control Unit Inputs & Outputs
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
