VTEC Solenoid Valve Connector End View
VTEC Solenoid Valve Connector End View

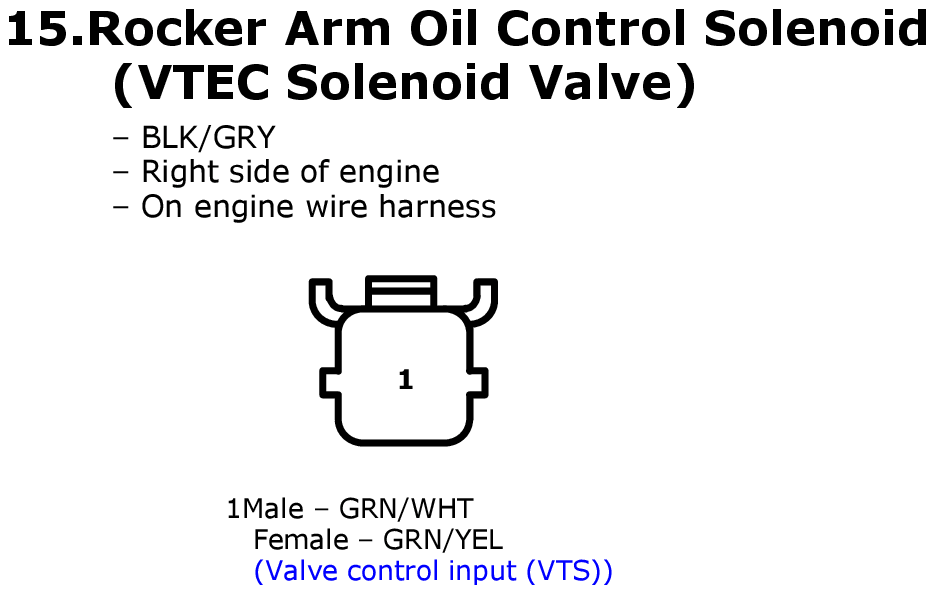

Fig 1: VTEC Solenoid Valve Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
