A/T Gear Position Indicator
›
Circuit Diagram
›
2006 Model
2006 Model

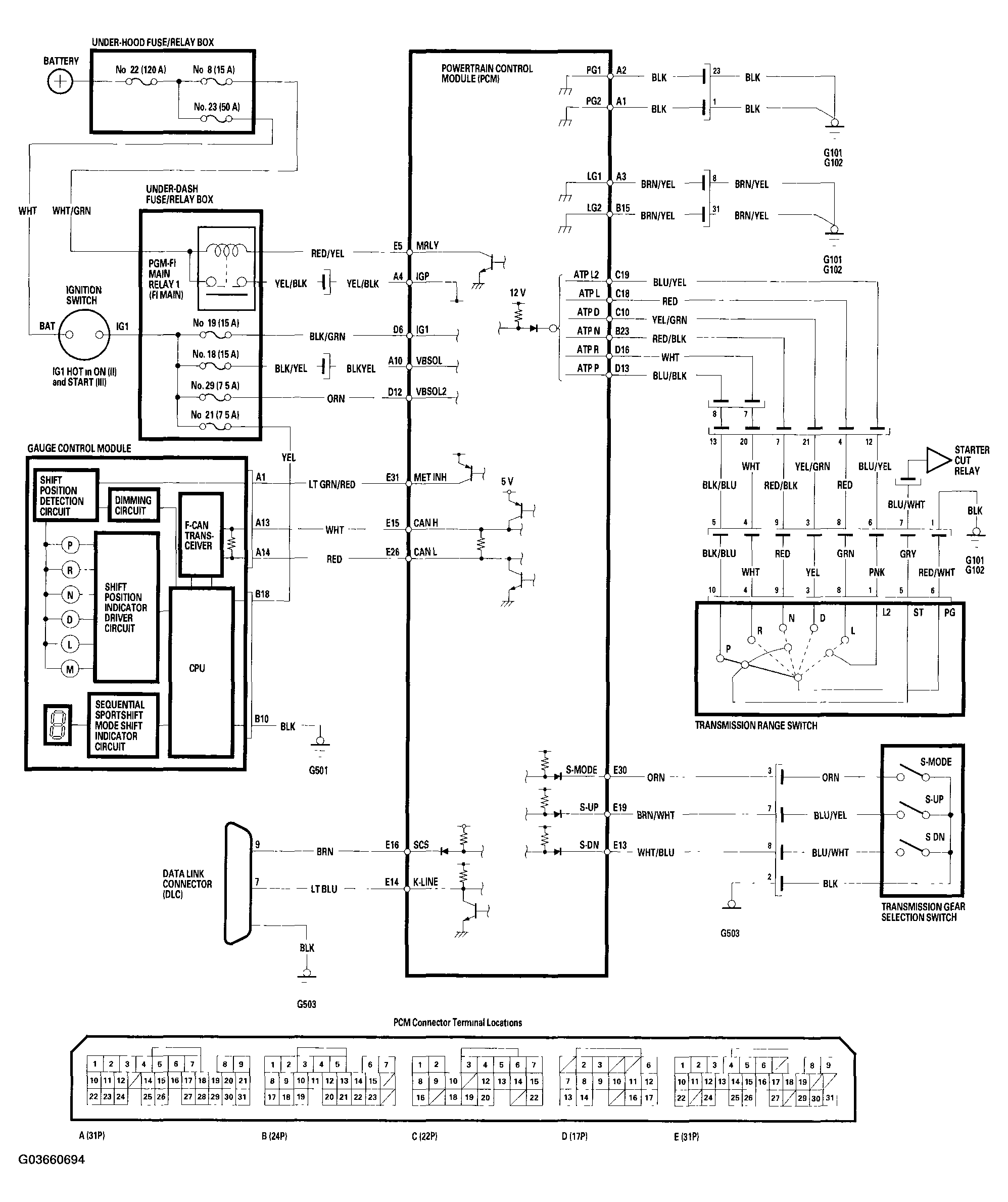

Fig 1: A/T Gear Position Indicator - Circuit Diagram (2006 Model)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
