A/T Interlock System
›
Circuit Diagram
›
2004-2005 Models
2004-2005 Models

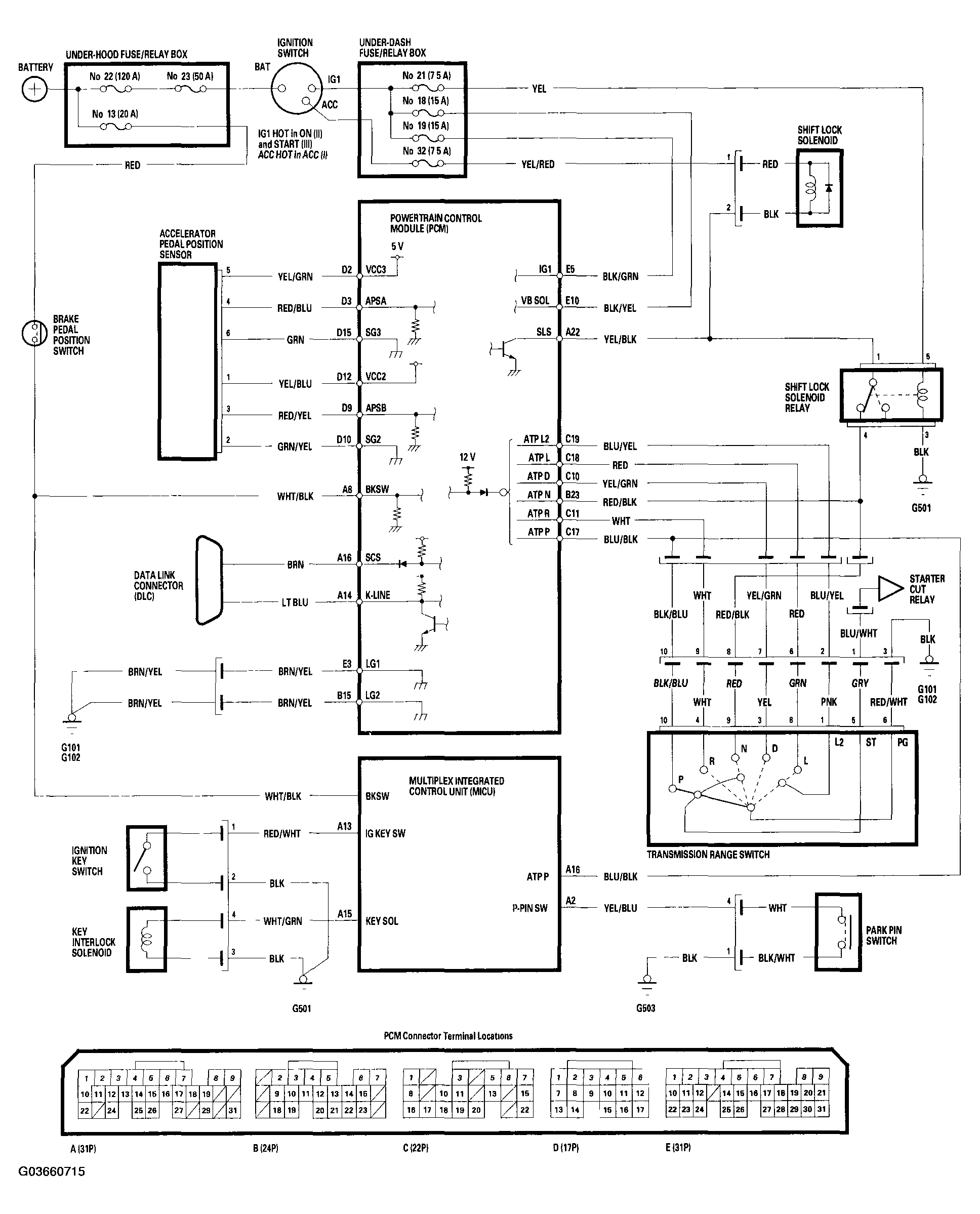

Fig 1: A/T Interlock System - Circuit Diagram (2004-2005 Models)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
