PCM Electrical Connections - 2004-2005 Models
PCM Electrical Connections - 2004-2005 Models

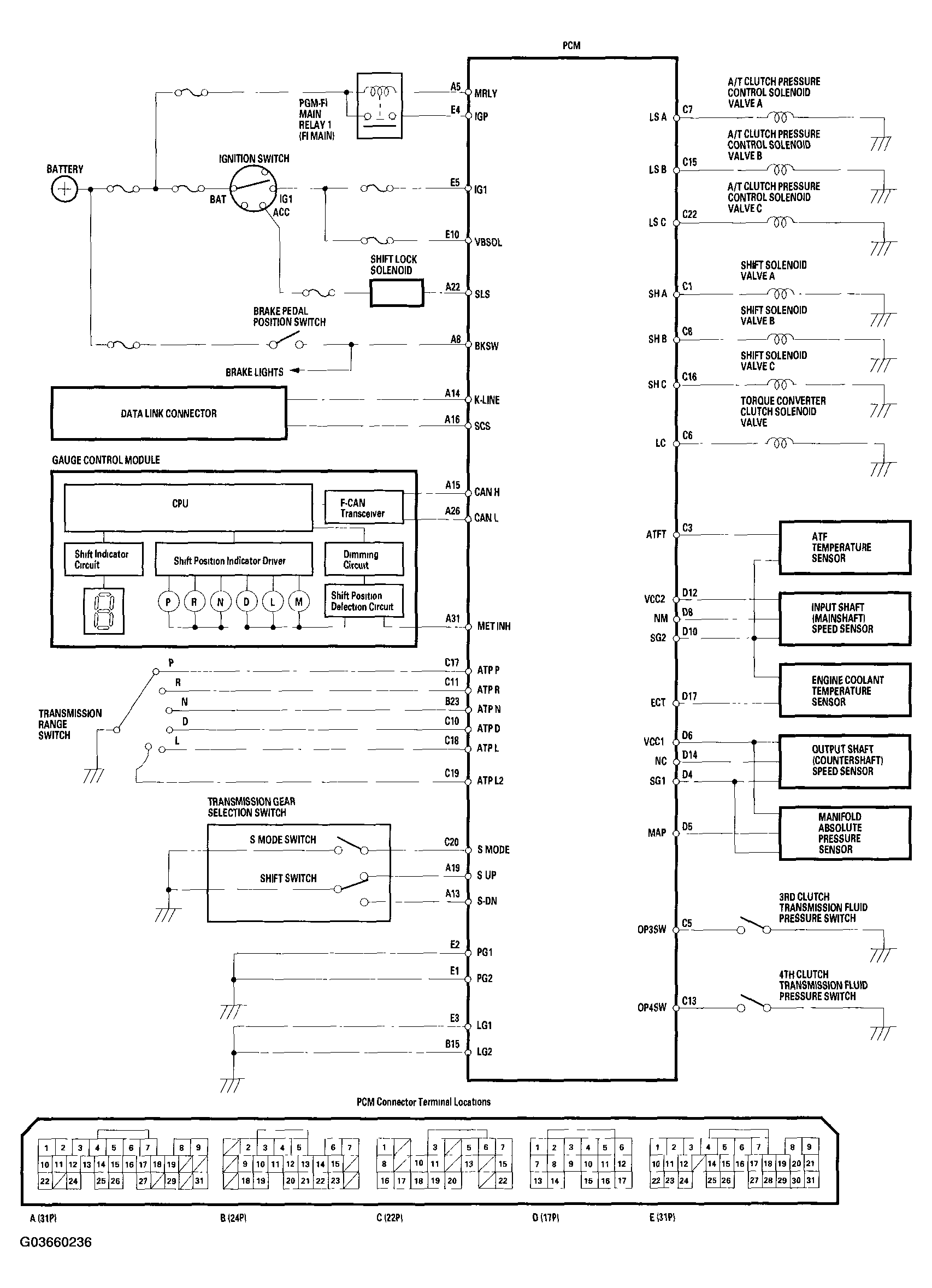

Fig 1: PCM Electrical Connections - 2004-2005 Models
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
