PCM Inputs and Outputs - 2006 Model

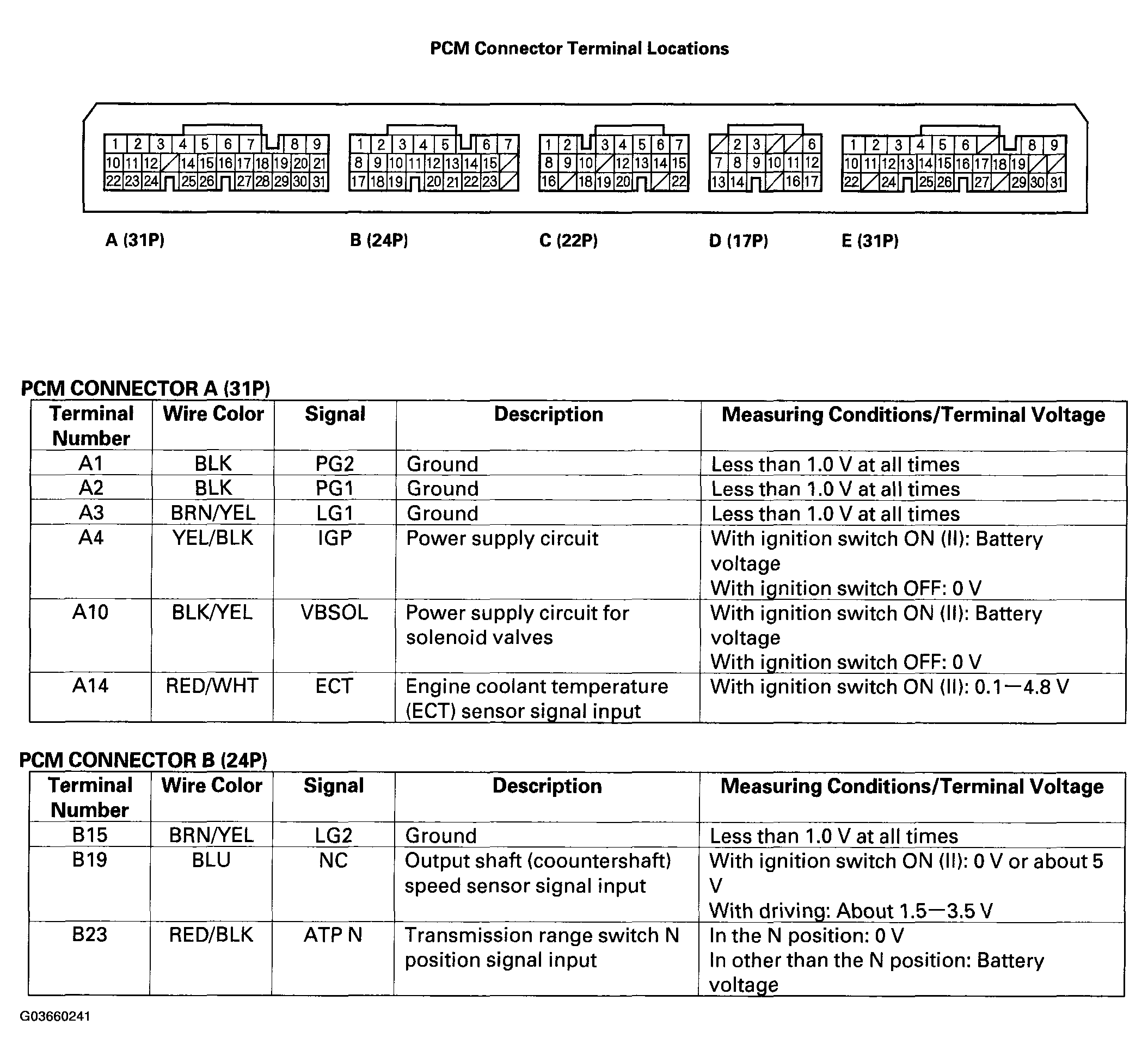

Fig 1: PCM Inputs And Outputs - 2006 Model (1 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

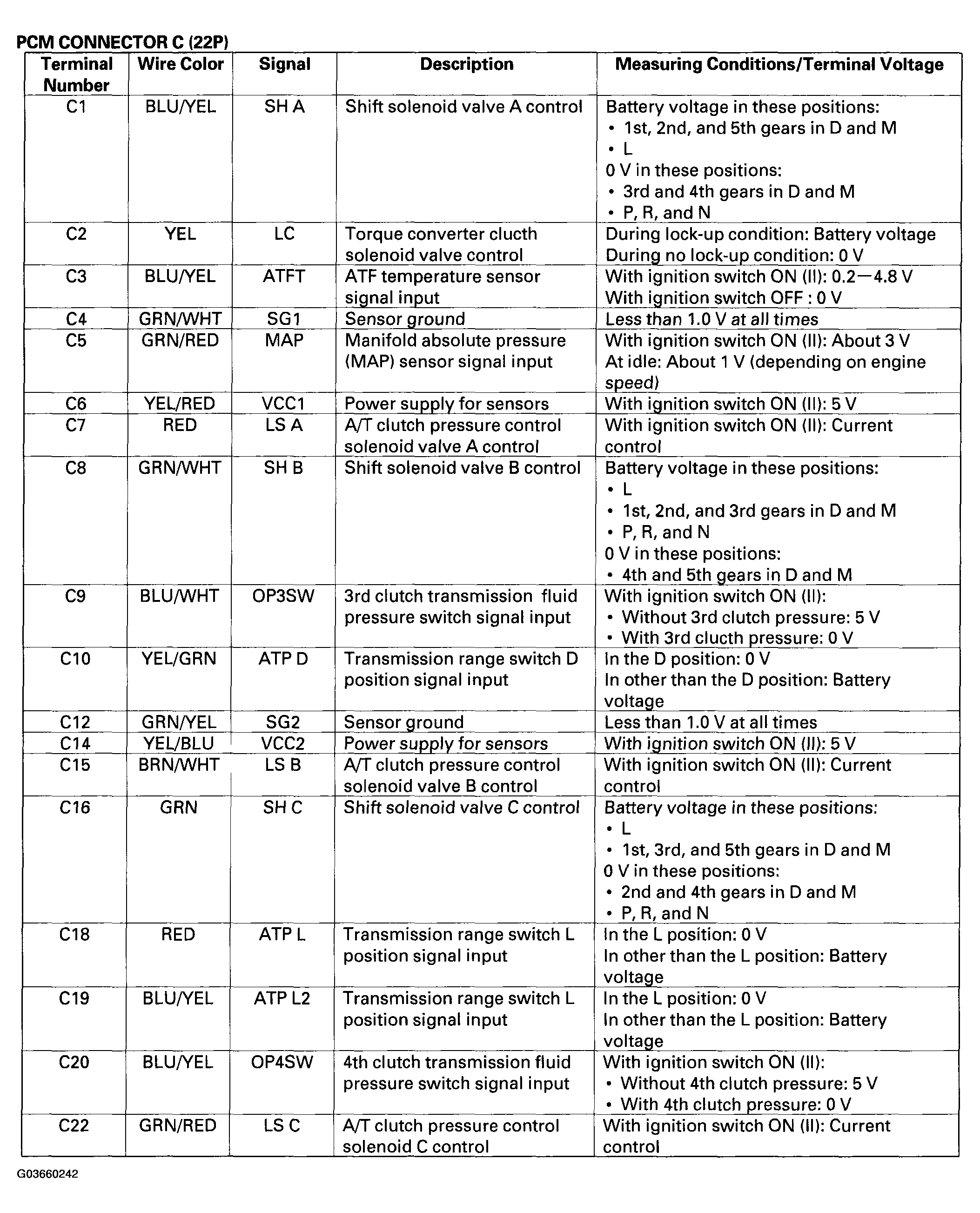

Fig 2: PCM Inputs And Outputs - 2006 Model (2 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

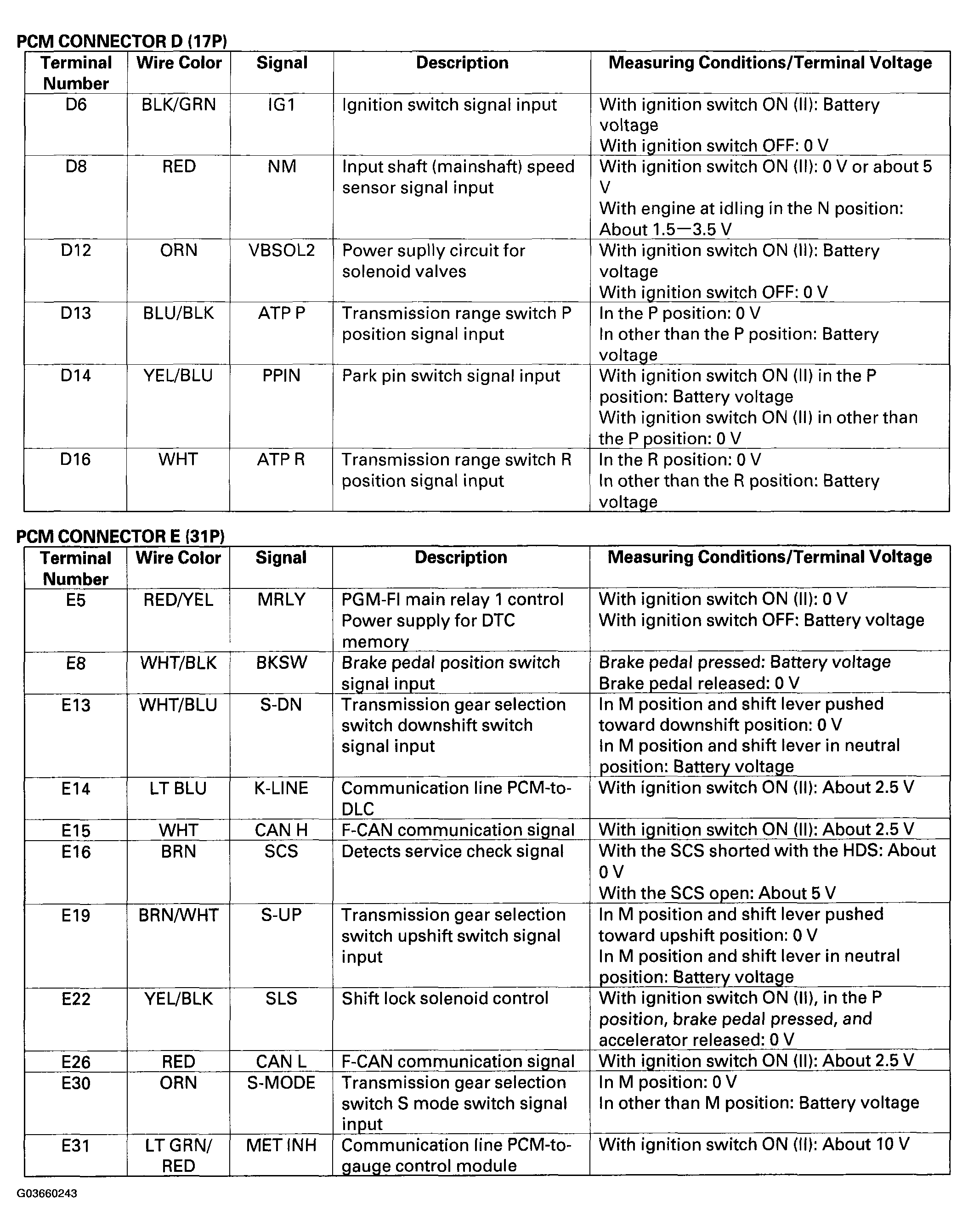

Fig 3: PCM Inputs And Outputs - 2006 Model (3 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
