Select/Reset/Information Switch Test/Replacement

  1. Remove the instrument panel (see INSTRUMENT PANEL REMOVAL/INSTALLATION ).
  2. Disconnect the 6P connector (A) from the select/reset/information switch (B).

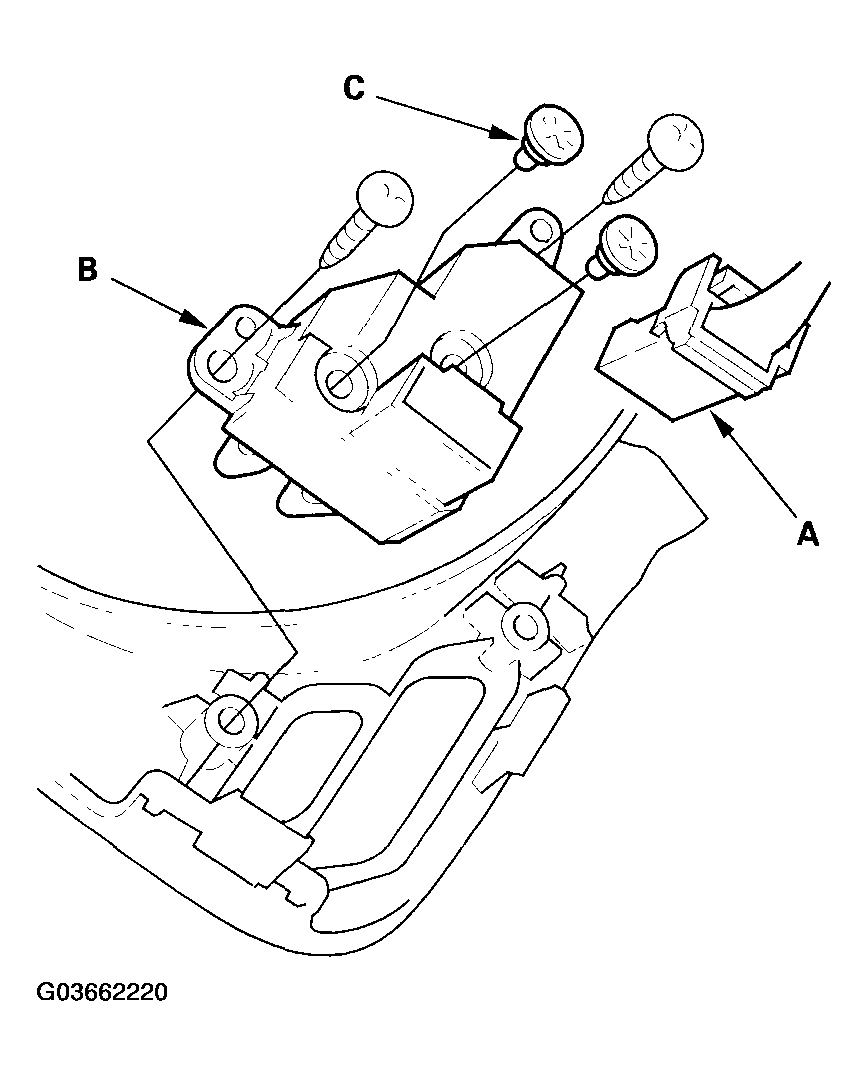

    Fig 1: Disconnecting 6P Connector From Select/Reset/Information Switch
    G03662220Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the two screws and the select/reset/information switch.
  4. Check for continuity between the terminal in each switch position according to Fig 2 .
    Fig 2: Checking Continuity Between Terminal In Each Switch Position
    G03662221Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. If the continuity is not as specified, replace the bulbs (C) or the switch.
