Radio Remote Switch Test/Replacement

Remove the driver's airbag assembly (see DRIVER'S AIRBAG REPLACEMENT ).
Remove the 7P connector (A) from the radio remote switch (B).

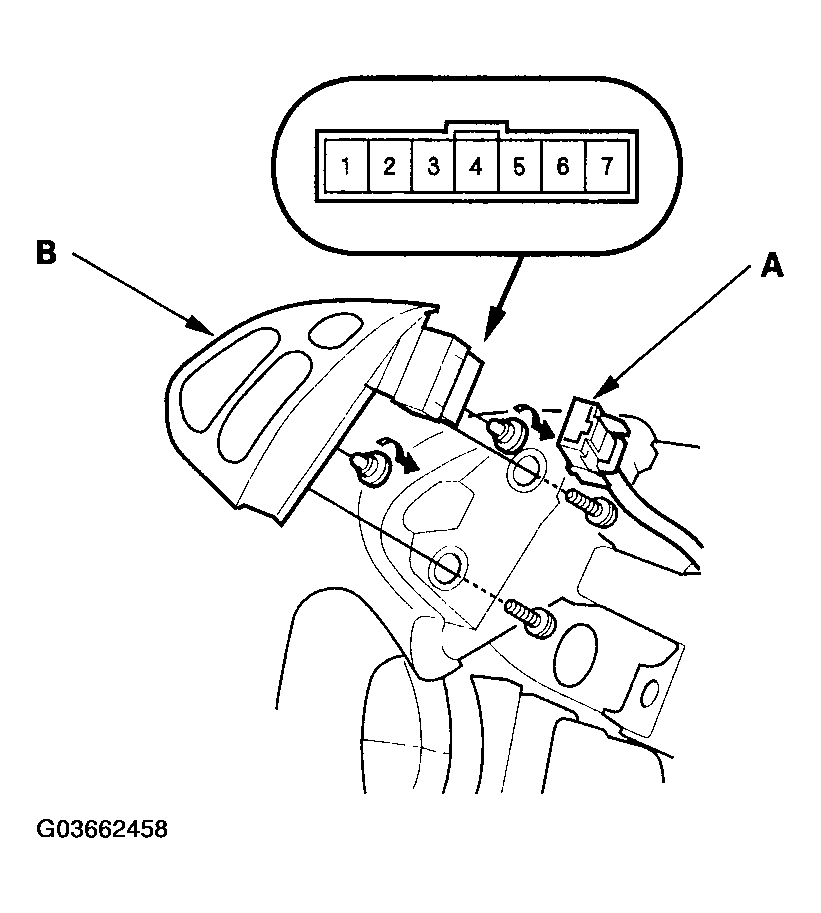

Fig 1: Removing 7P Connector From Radio Remote Switch
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the two mounting screws and the switch.
Measure resistance between the No. 1 and No. 2 terminals in each switch position according to the table.

Fig 2: Resistance Table
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the resistance is not as specified, replace the radio remote switch.
Check for continuity between the No. 3 and No. 4 terminals, and No. 5, No. 6^* and No. 7 terminals. There should be continuity.
*: With Hands Free Link system or navigation system
If the continuity check is not as specified, replace the switch.
