System Description
›
Audio-HVAC Subdisplay Unit Connector Inputs and Outputs
›
With Navigation
With Navigation

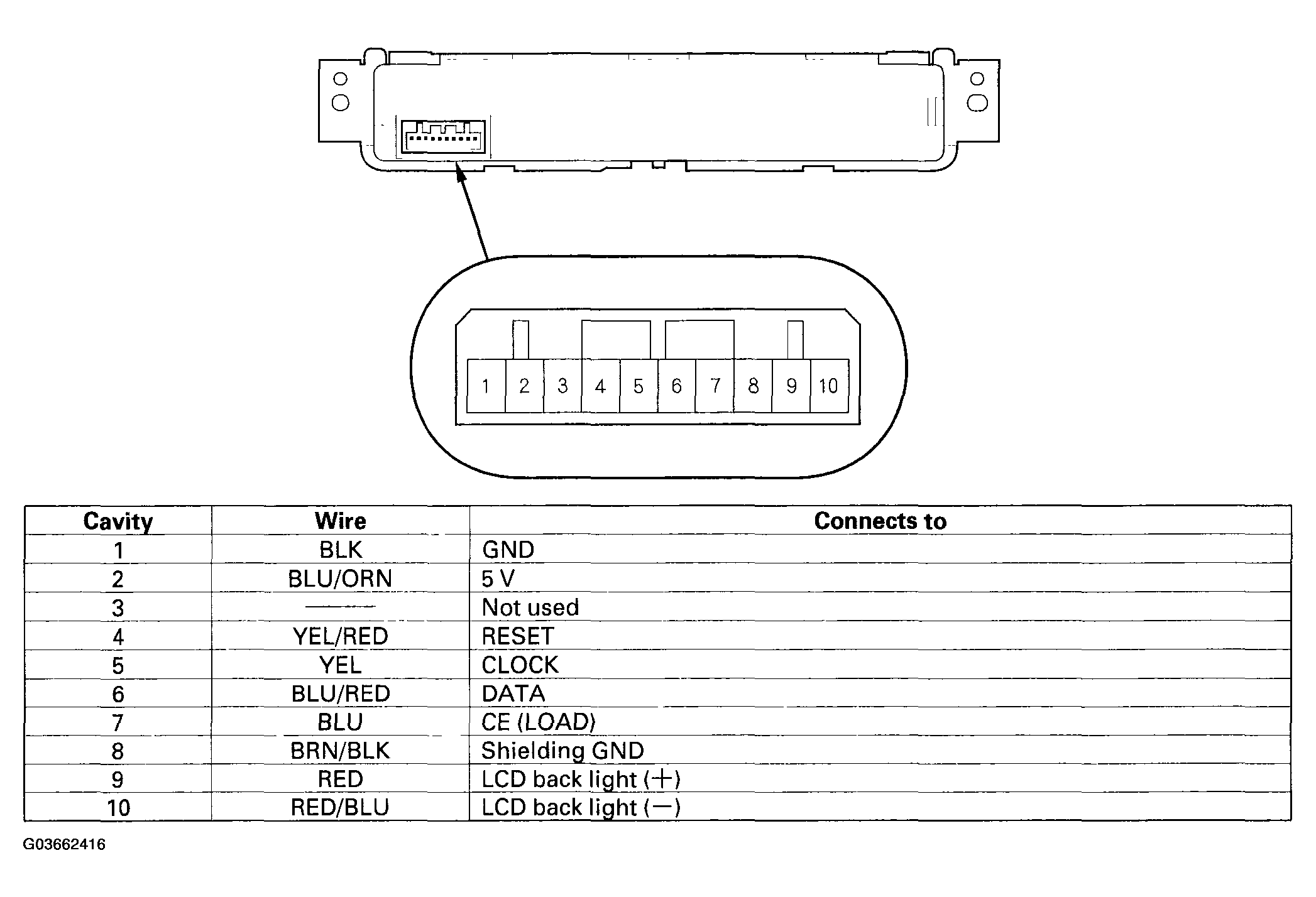

Fig 1: Identifying Audio-HVAC Subdisplay Unit Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
