XM Receiver Removal/Installation

Open the trunk lid and remove the right trunk side trim panel (see TRIM REMOVAL/INSTALLATION - TRUNK AREA ).
Disconnect the antenna 2P connector (A) and 14P connector (B) from the XM receiver (C).

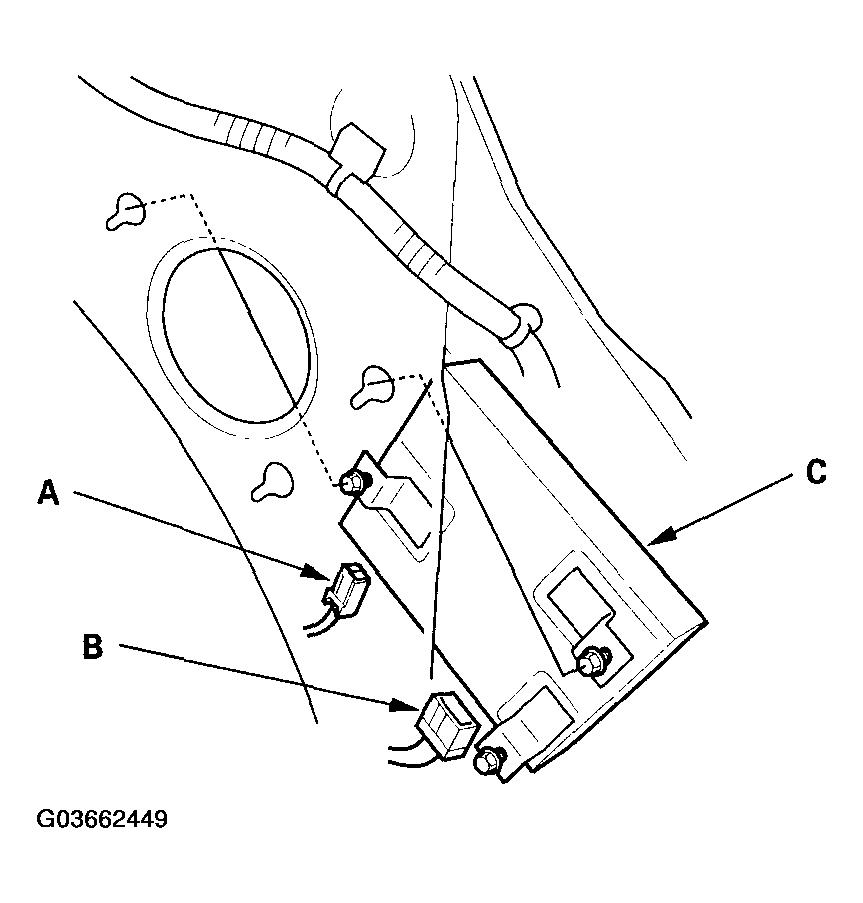

Fig 1: Disconnecting Antenna 2P Connector & 14P Connector From XM Receiver
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Loosen the three nuts and remove the XM receiver.
Install in the reverse order of removal.
