Component Location Index
Component Location Index

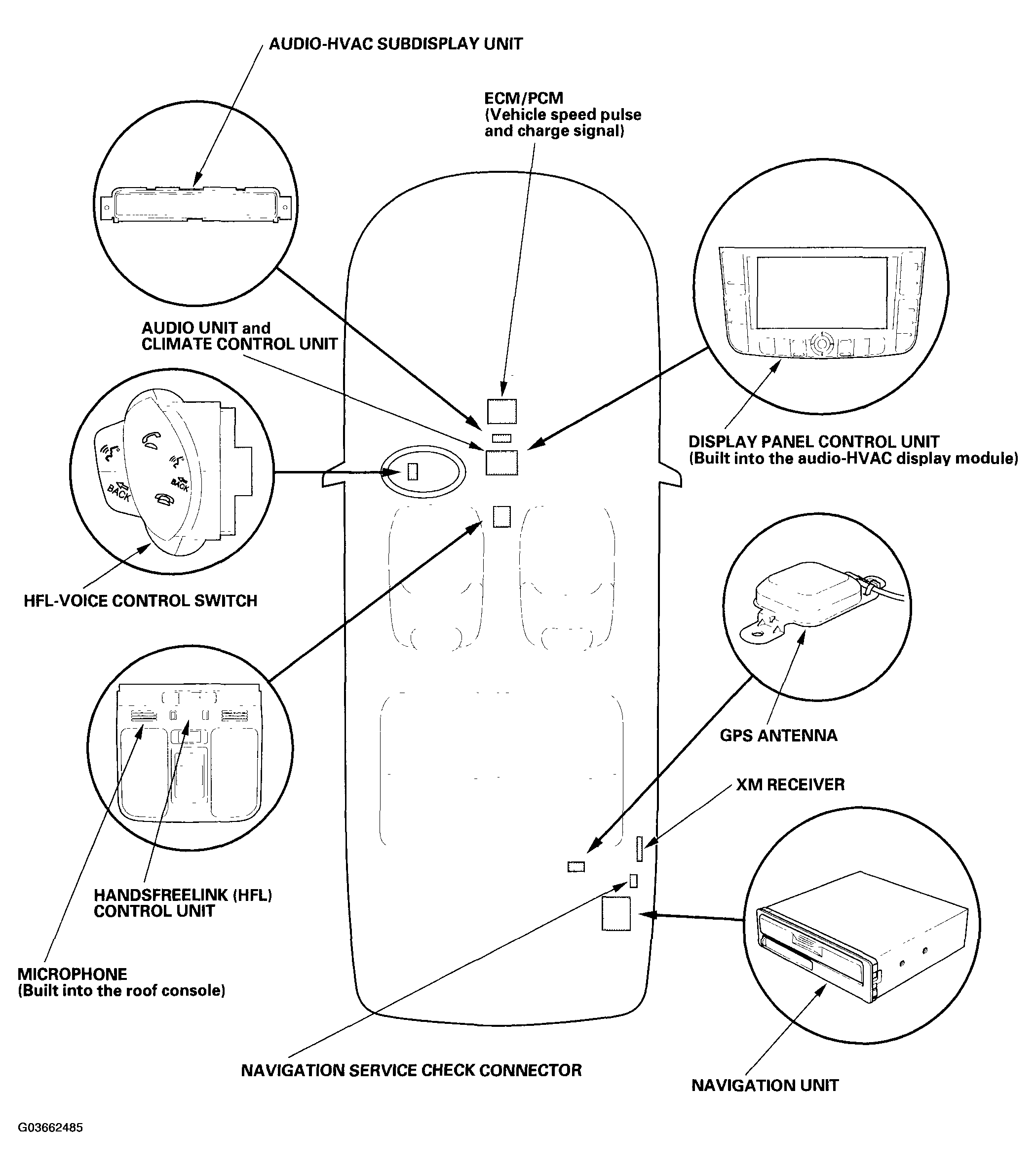

Fig 1: Navigation System - Component Location Index
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
