Power Mirror Actuator Test: Notes

NOTE: The power mirror actuator can be tested by using the HDS by following these steps:

Remove the door panel (see FRONT DOOR PANEL REMOVAL/INSTALLATION ).
Disconnect the 13P connector (A) from the power mirror (B).

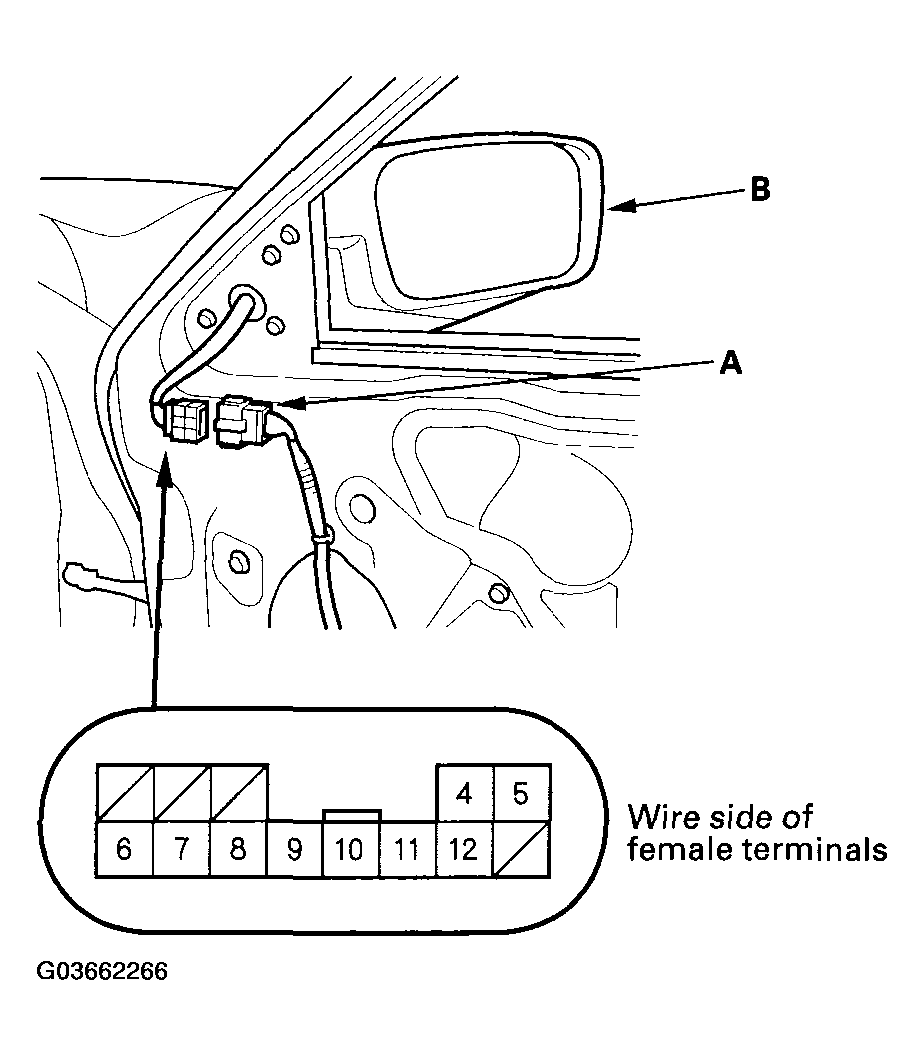

Fig 1: Disconnecting 13P Connector (A) From Power Mirror (B)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Check actuator operation by connecting power and ground according to the table.

Fig 2: Actuator Operation Table
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the mirror fails to work properly, replace the mirror actuator.
