Pressure Reducing Mode

VSA NO valve open, VSA NC valve closed, inlet valve closed, outlet valve open, pump motor ON. Caliper fluid flows through the outlet valve to the reservoir.

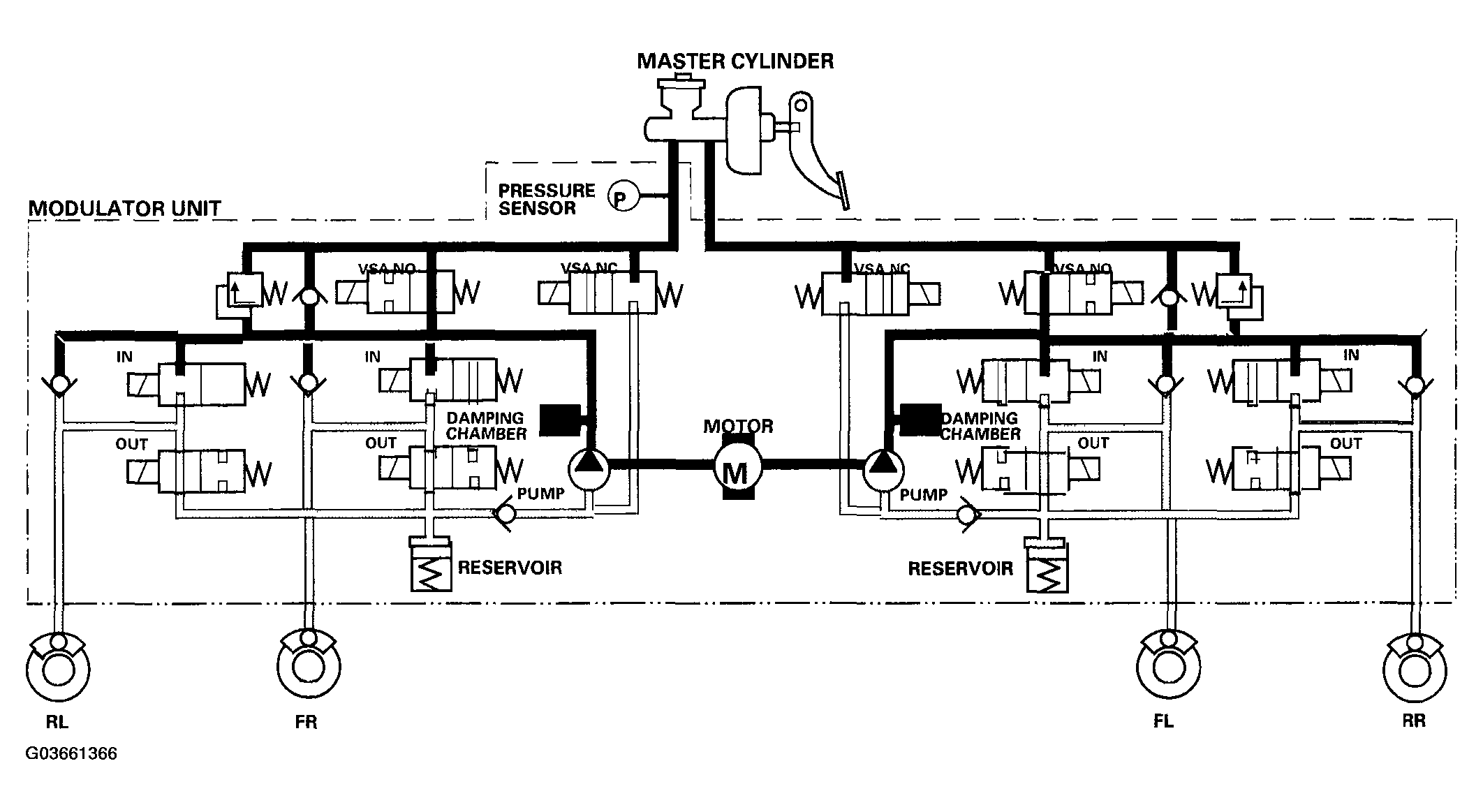

Fig 1: Identifying Pressure Reducing Mode Diagram

Courtesy of AMERICAN HONDA MOTOR CO., INC.
