VSA Off Switch Test

Remove the driver's dashboard lower cover.
Remove the VSA OFF switch (A) from the switch panel.

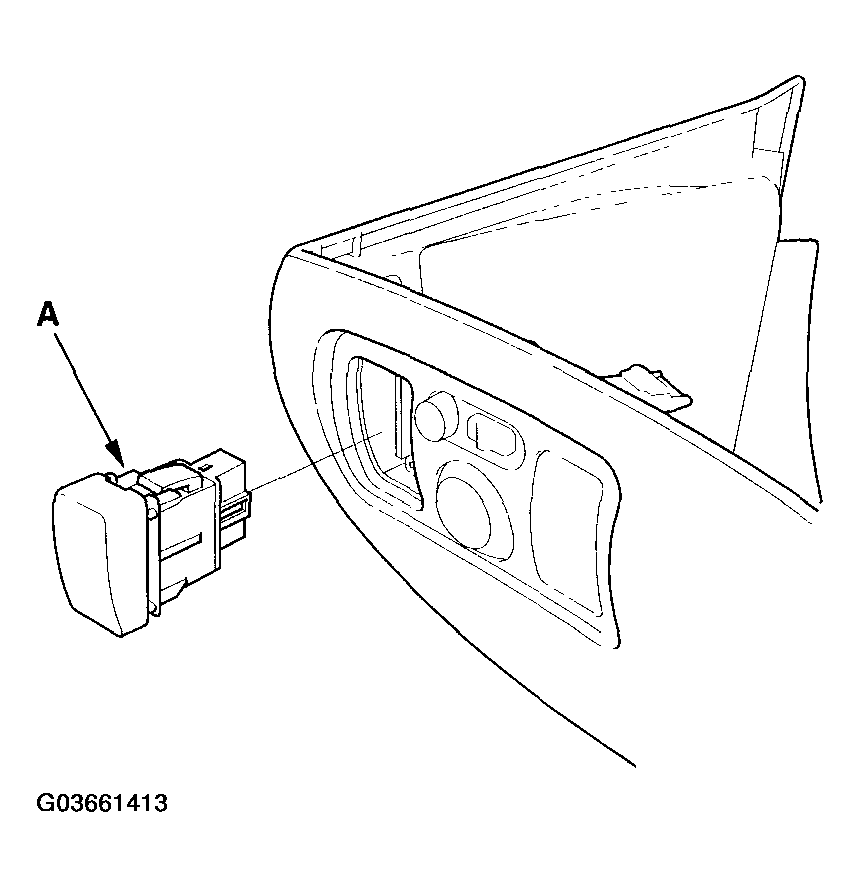

Fig 1: Removing VSA Off Switch From Switch Panel
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the VSA OFF switch 5P connector.
Check for continuity between the VSA OFF switch 5P connector terminal No. 1 and No. 2. There should be continuity when the switch is pressed, and no continuity when the switch is released.

Fig 2: Checking Continuity Between VSA Off Switch 5P Connector Terminal No. 1 & No. 2
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Check for continuity between the VSA OFF switch 5P connector terminal No. 3 and No. 4. There should be continuity at all times.

Fig 3: Checking Continuity Between VSA Off Switch 5P Connector Terminal No. 3 & No. 4
Courtesy of AMERICAN HONDA MOTOR CO., INC.
