Wheel Sensor Replacement: Notes

NOTE: Install the sensor carefully to avoid twisting the wires.

Front

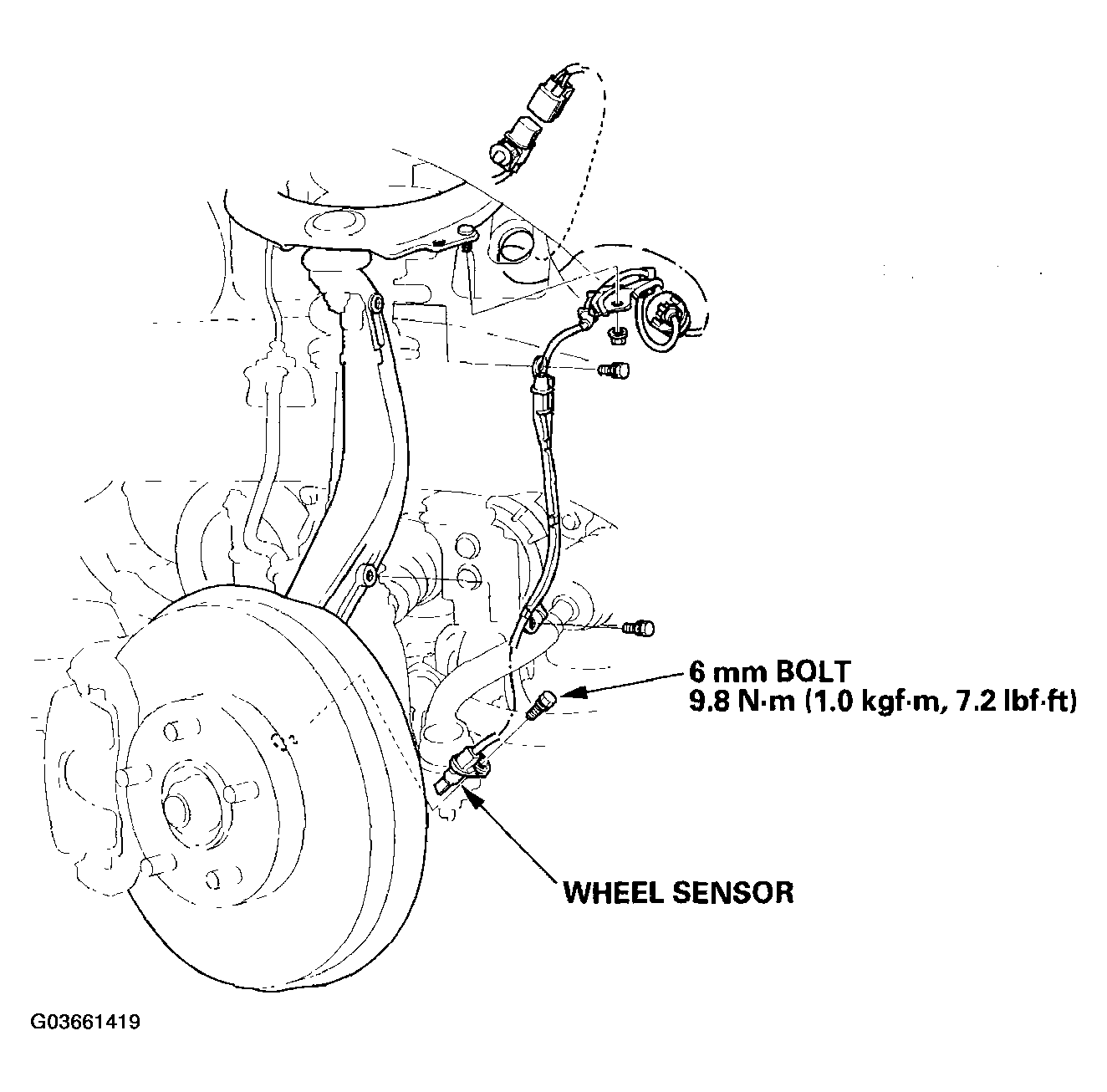

Fig 1: Identifying Wheel Sensor - Front

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Rear

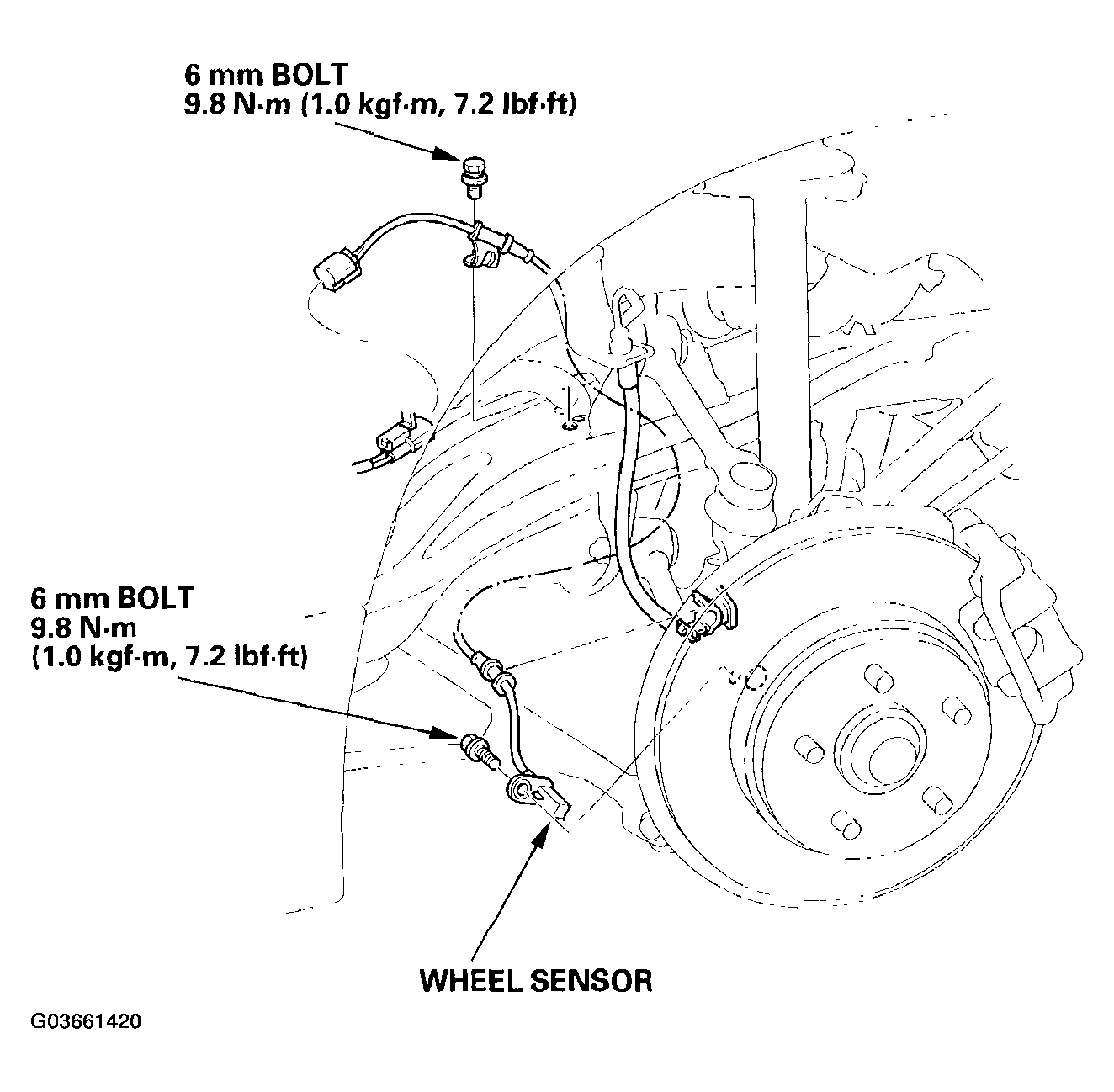

Fig 2: Identifying Wheel Sensor - Rear

Courtesy of AMERICAN HONDA MOTOR CO., INC.
