Yaw Rate-Lateral Acceleration Sensor Replacement

NOTE:
  • Do not damage or drop the sensor as it is sensitive.
  • Do not use an impact wrench.
  1. Remove the center console panel (see CENTER CONSOLE PANEL REMOVAL/ INSTALLATION ).
  2. Disconnect the connector (A).

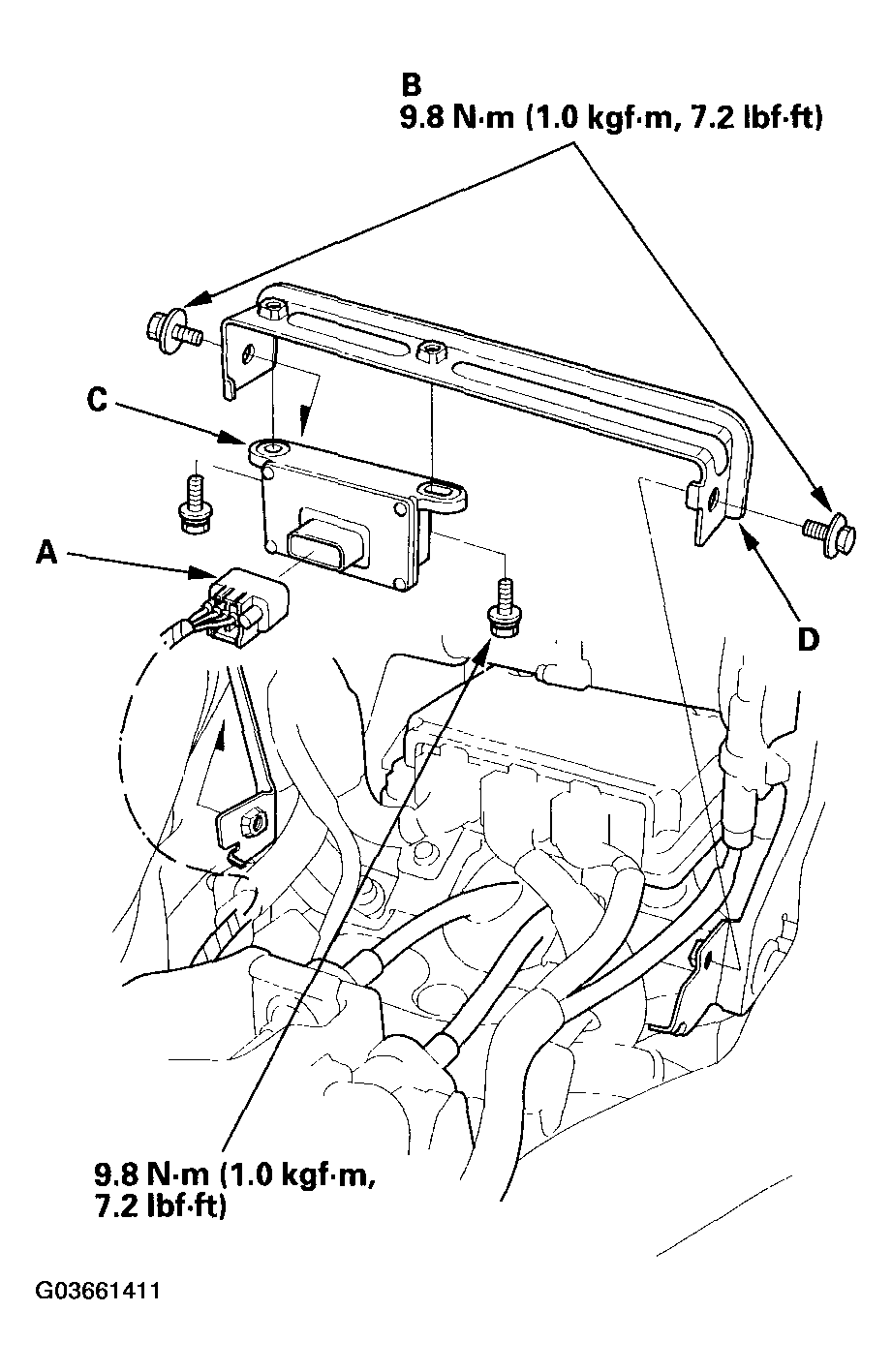

    Fig 1: Disconnecting Connector
    G03661411Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the sensor bracket mounting bolts (B).
  4. Remove the yaw rate-lateral acceleration sensor (C) with the bracket (D).
  5. Remove the sensor from the bracket.
  6. Install the yaw rate-lateral acceleration sensor in the reverse order of removal.
