C781 Connector End View
C781 Connector End View

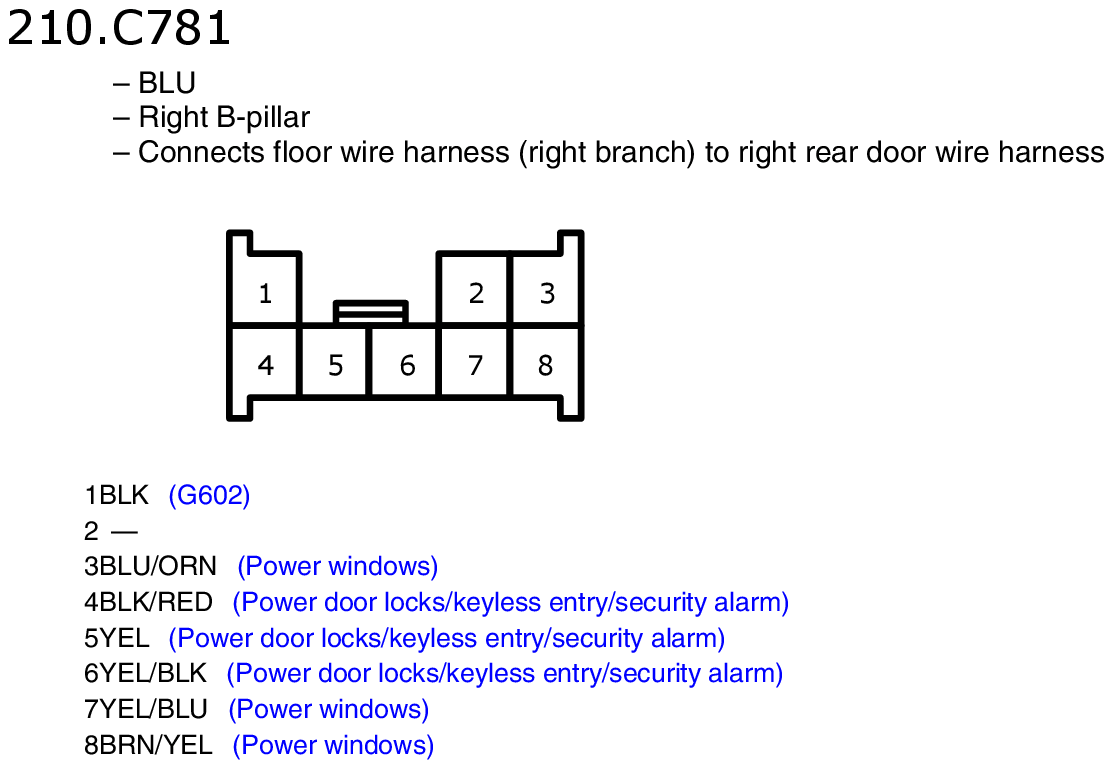

Fig 1: C781 Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
