Navigation Unit (Navigation) Connector End View
Navigation Unit (Navigation) Connector End View

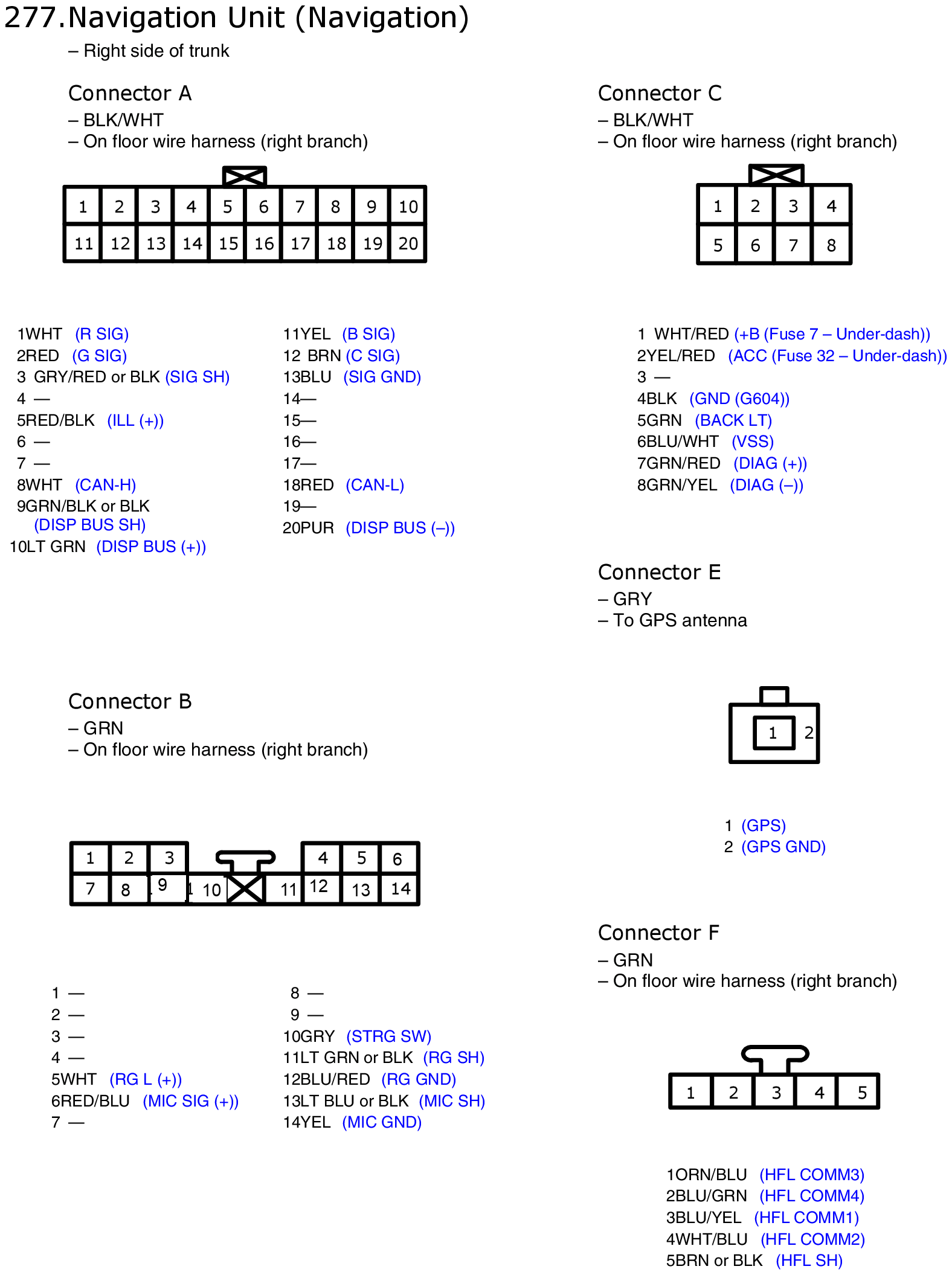

Fig 1: Navigation Unit (Navigation) Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
