Trunk Latch Switch Connector End View
Trunk Latch Switch Connector End View

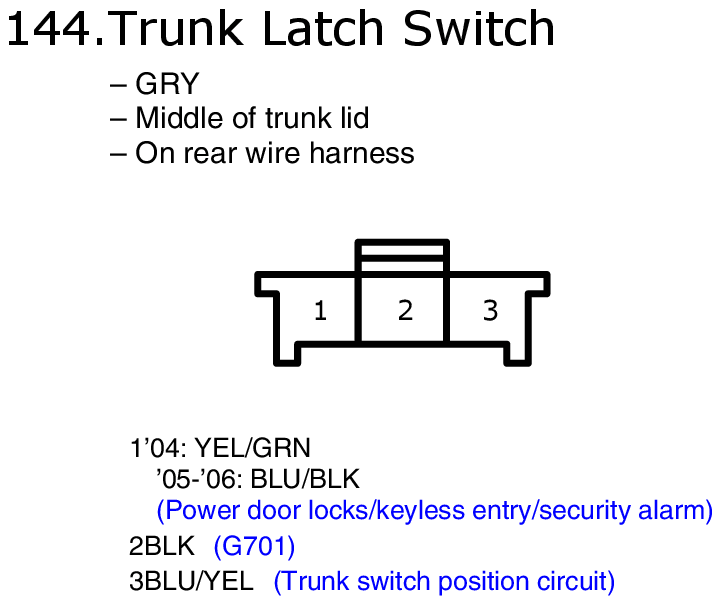

Fig 1: Trunk Latch Switch Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
